Brake Booster (G978567): Installation

  1. NOTE: Replace the brake booster/pedal box gasket.

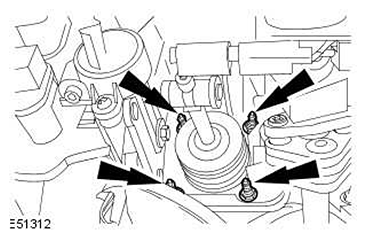

    G11414168

    To install, reverse the removal procedure.

    • Tighten to 25 Nm.

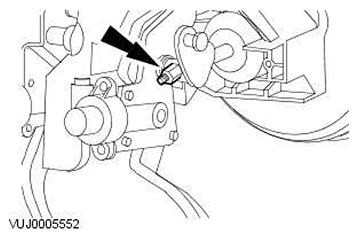

  2. G11414169

    Tighten to 3 Nm.
