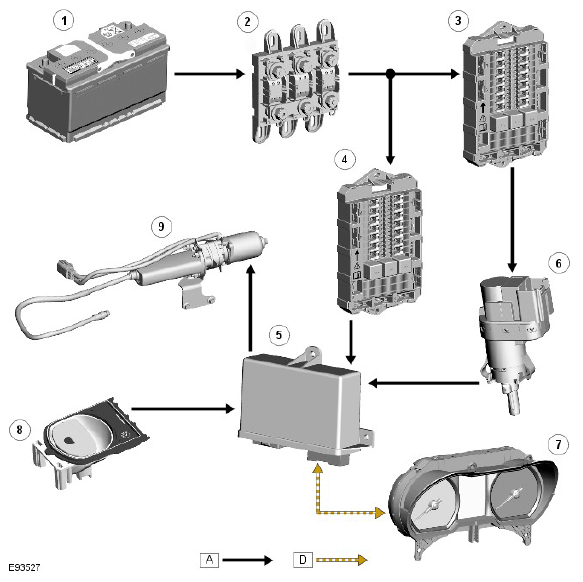

Control Diagram
NOTE:
A
= Hardwired; D
= High speed CAN (controller area network) bus.
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
BJB (battery junction box) |
| 3 |
CJB (central junction box) |
| 4 |
RJB (rear junction box) |
| 5 |
EPB module |
| 6 |
Stoplamp switch |
| 7 |
Instrument cluster |
| 8 |
Parking brake switch |
| 9 |
Parking brake actuator |
