Windshield Glass (G1060918): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
  2. Refer to: A-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: Rain Sensor (Wipers and Washers, Removal and Installation).

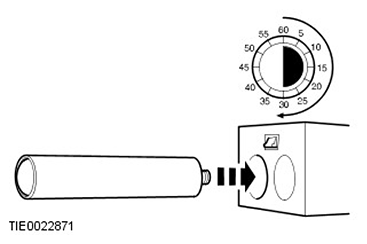

  4. G11423217
    • Remove the polyurethane (PU) adhesive cap and heat the PU adhesive for a minimum of 30 minutes.

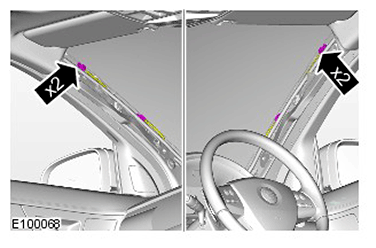

  5. G11423218

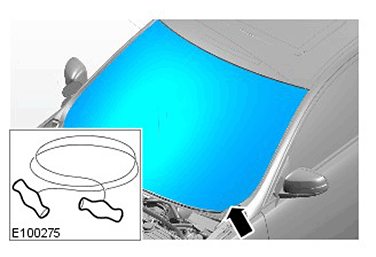

  6. CAUTION:
    • Protect the surrounding components.
    • Protect the surrounding paintwork to avoid damage.
    G11423219

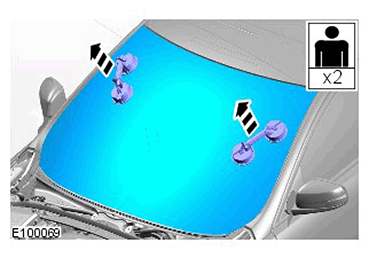

  7. WARNING: This step requires the aid of another technician.
    G11423220
