Rear Window Glass (G1091562): Removal
CAUTION:
- Always protect paintwork and glass when removing exterior components.
- Always protect the interior components when removing body glass.
- Lay the glass on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into cracks.
NOTE:

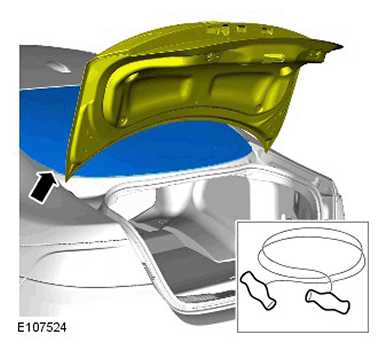

The following equipment is required: l Cutting wire and handles l Kent knife l Glazing knife l Windshield replacement kit l Sealant applicator gun l Suction cups l A felt covered table or stand to support glass

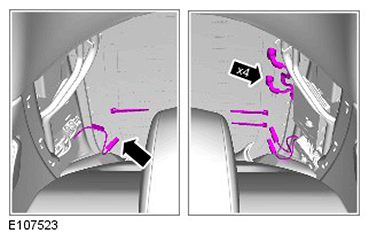

- Refer to: C-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).

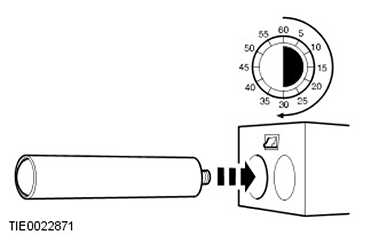

- Remove the polyurethane (PU) adhesive cap and heat the PU adhesive for a minimum of 30 minutes.
-
CAUTION:
- Protect the surrounding components.
- Protect the surrounding paintwork to avoid damage.
-

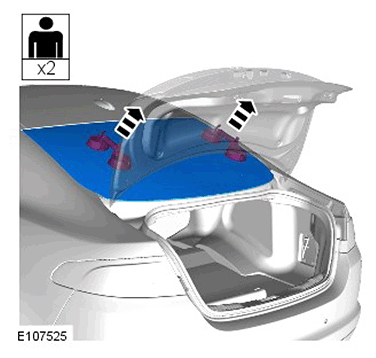

WARNING: This step requires the aid of another technician.
