Rear Window Glass (G1091562): Installation
-
CAUTION:

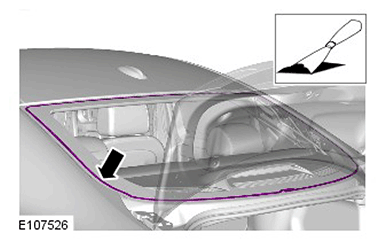

- Make sure that the mating faces are clean and free of foreign material.
- Correct preparation of body apertures "post painting" to ensure satisfactory glass adhesion, must be carried out in line with industry practise.

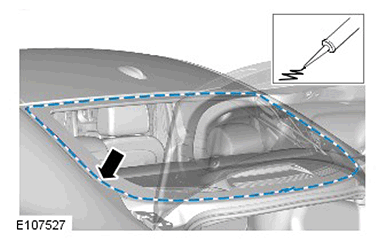

- Prepare the window glass, window glass flange and trimmed PU adhesive in accordance with the instructions included with the PU adhesive kit.
-

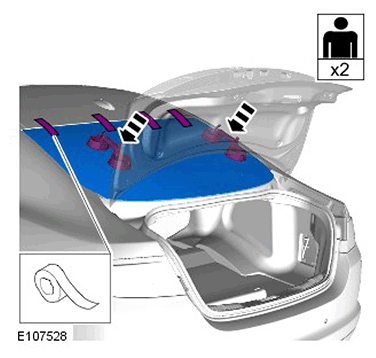

CAUTION: Touching the adhesive surface will impair rebonding.NOTE: Install new spacers.
-
CAUTION: Make sure that no excess sealant residue is evident.

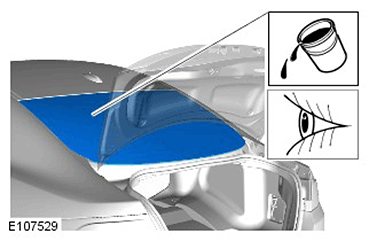

- If water is used as a means for the leak check, then allow sealant to dry before testing.
- Spray water around the windshield glass, mark any area that leaks. Dry the windshield glass and sealant before applying additional sealant.

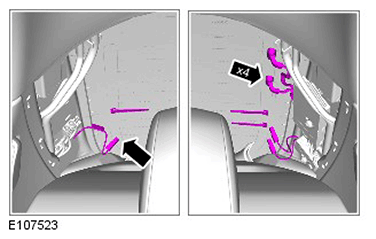

- Refer to: C-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
