Rear Quarter Window Glass (G1574164): Removal

  1. Refer to: Loadspace Scuff Plate Trim Panel - Sportbrake (G1567816) (Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: C-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: D-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).

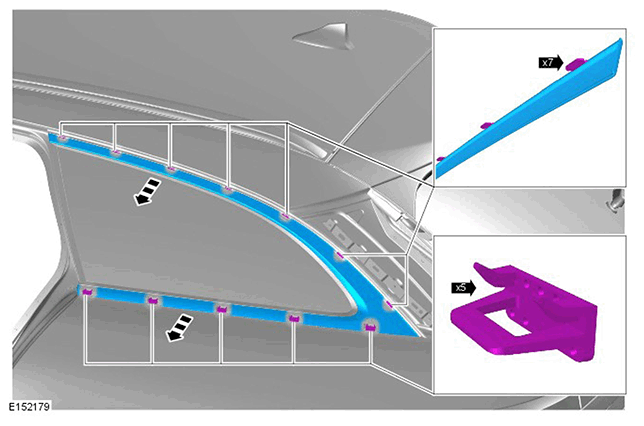

  4. G11423245

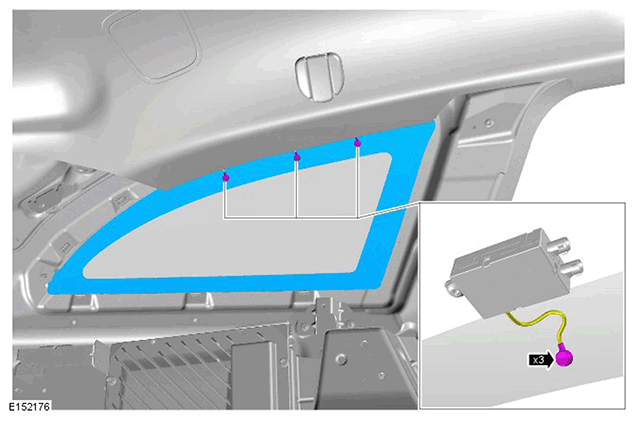

  5. G11423246
  6. CAUTION:
    • Protect the surrounding components.
    • Protect the surrounding paintwork to avoid damage.

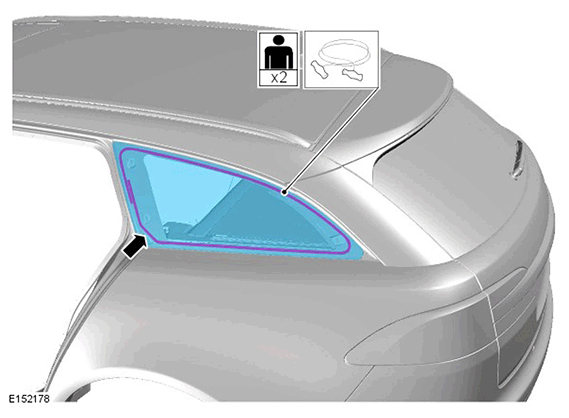

    G11423247

    Pull glazing wire through windshield sealant to the inside of the vehicle.

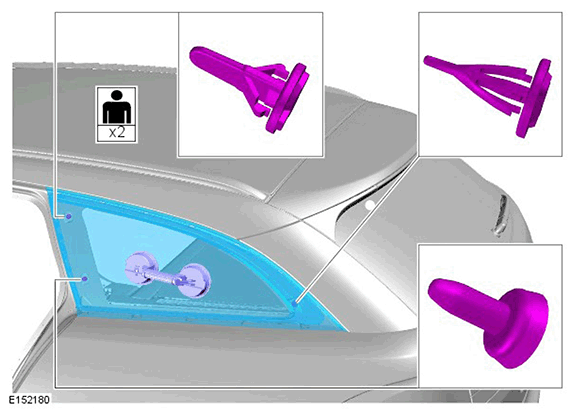

  7. G11423248
