Rear Door Fixed Window Glass (G972513): Removal

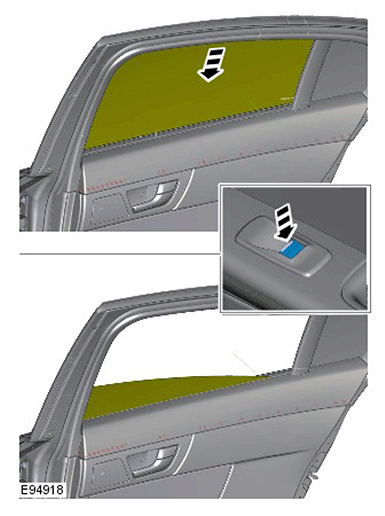

  1. G11423193

    Lower the rear door window glass.

  2. Remove the rear door trim panel.

    Refer to: Rear Door Trim Panel (Interior Trim and Ornamentation, Removal and Installation).

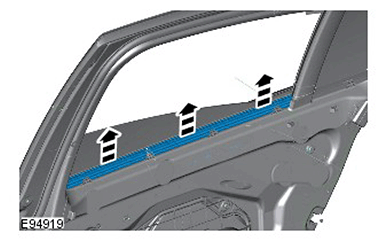

  3. G11423194

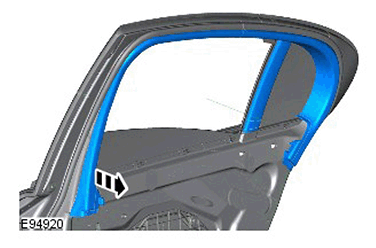

  4. G11423195

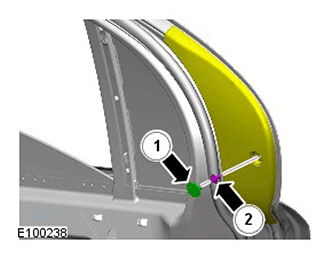

  5. G11423196
  6. G11423197

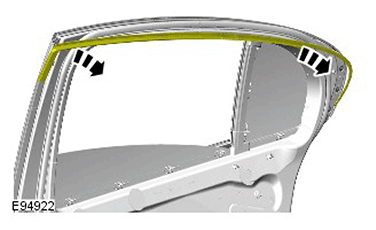

  7. G11423198

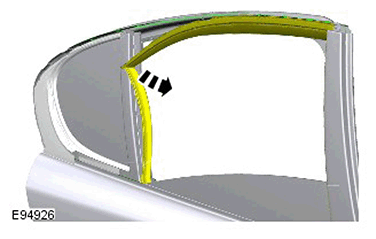

  8. G11423199

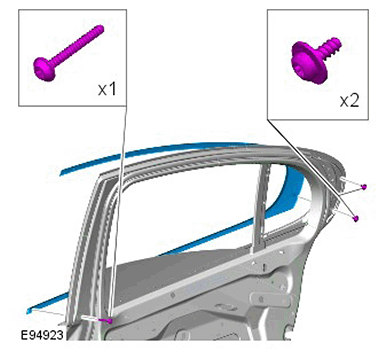

  9. G11423200

    Torque Specification: 1.1 Nm

  10. CAUTION: Note the fitted position of the component prior to removal.

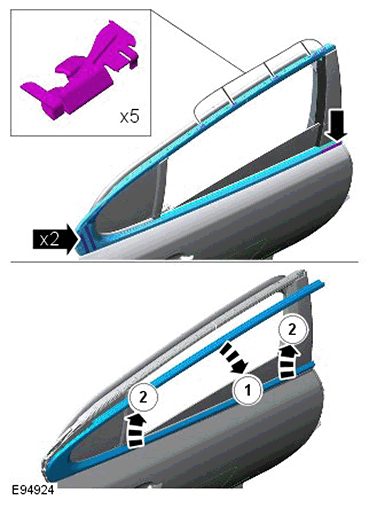

    G11423201

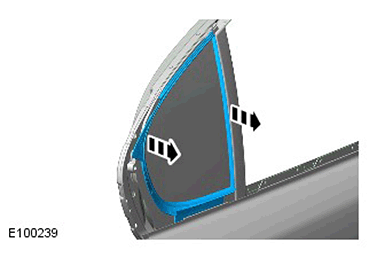

  11. G11423202

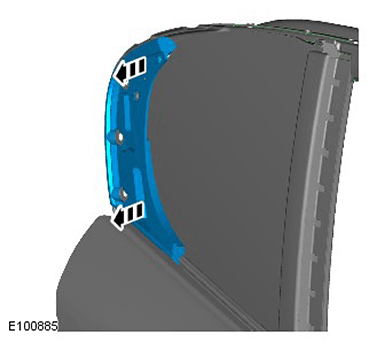

  12. G11423203

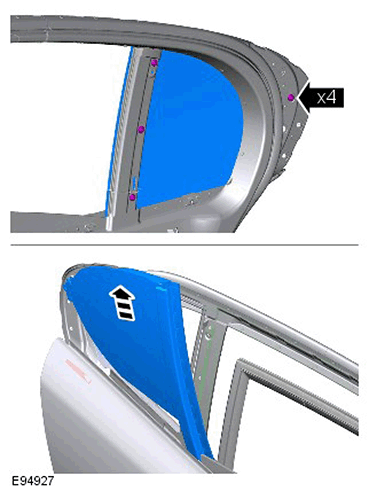

  13. G11423204
