Liftgate Window Glass (G1574163): Removal

  1. Refer to: Liftgate Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: Rear Spoiler (Exterior Trim and Ornamentation, Removal and Installation).

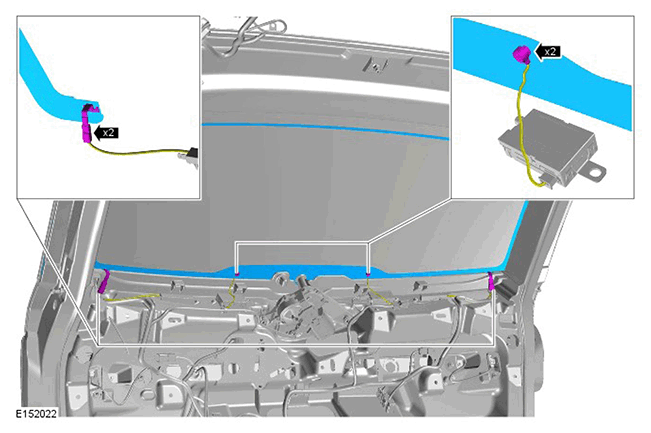

  3. G11423234
  4. CAUTION:
    • Protect the surrounding components.
    • Protect the surrounding paintwork to avoid damage.

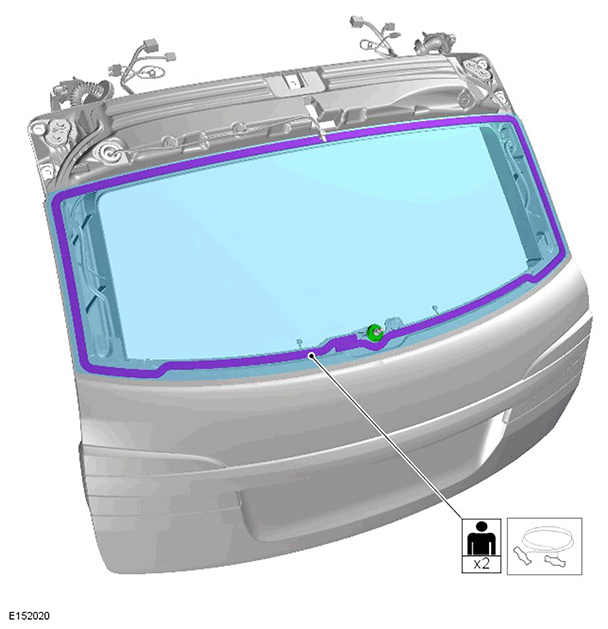

    G11423235

    Use a glazing cutting wire to cut the sealant.

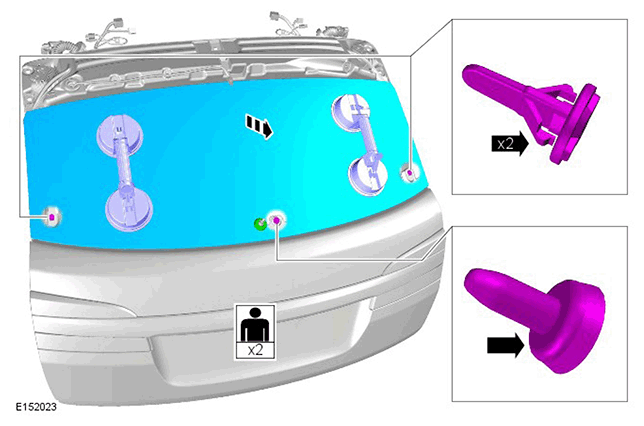

  5. G11423236
  6. NOTE: The seal is to be reused unless damaged.
    G11423237
