Liftgate Window Glass (G1574163): Installation

CAUTION: Correct preparation of body apertures "post painting" to ensure satisfactory glass adhesion, must be carried out in line with industry practise.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.

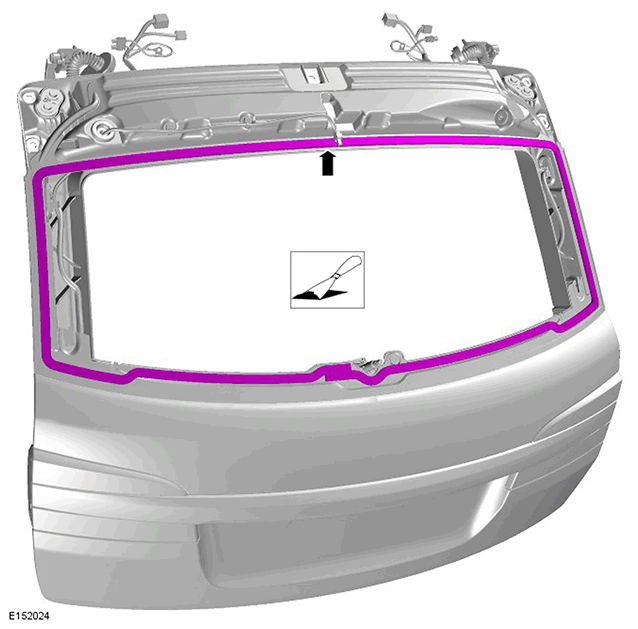

    G11423238
  2. NOTE: Make sure that a Hi-modulus sealer (for example, Wurth Ultimate adhesive) is used when bonding the component to the vehicle.

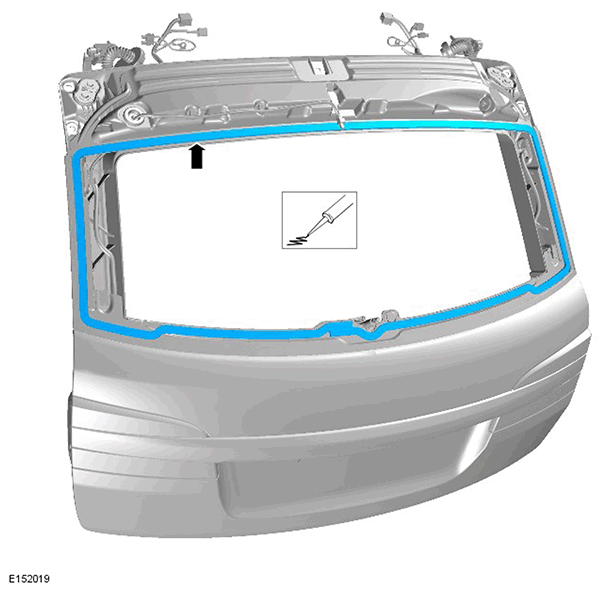

    G11423239

    Prepare the window glass, window glass flange and trimmed PU adhesive in accordance with the instructions included with the PU adhesive kit.

  3. NOTE: The seal is to be reused unless damaged.
    G11423240
  4. CAUTION: Make sure that the clips are correctly located.

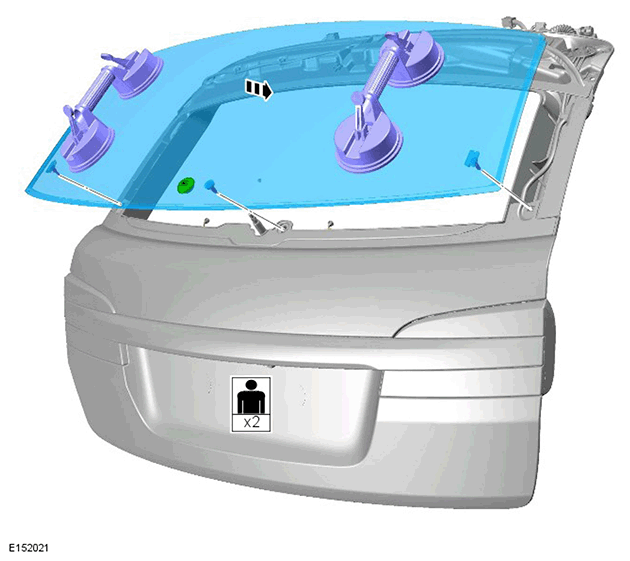

    G11423241

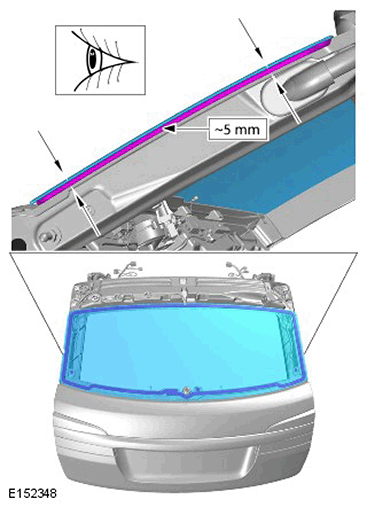

  5. G11423242

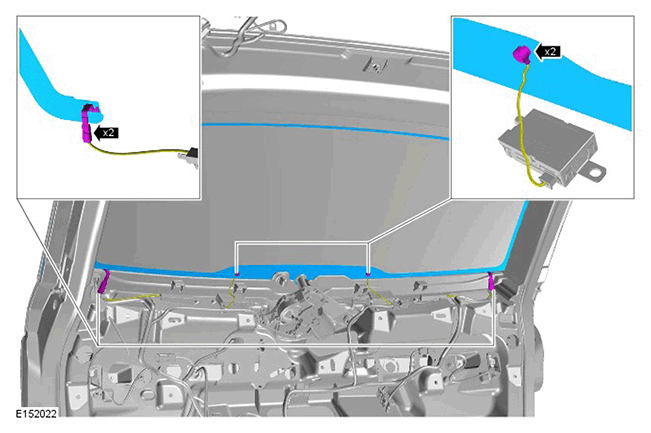

  6. G11423243

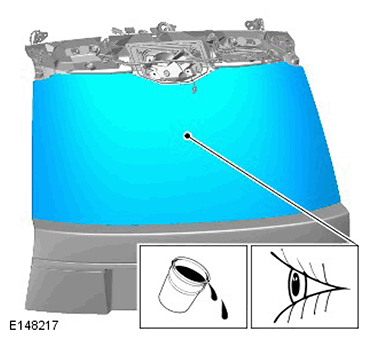

  7. G11423244

    Test the sealer for leaks, apply additional sealer if necessary. If water is used, allow sealer to dry before testing. Spray water around the glass and check for leaks. Mark any area that leaks. Dry the glass and sealer then apply additional sealer.

  8. Refer to: Liftgate Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
  9. Refer to: Rear Spoiler (Exterior Trim and Ornamentation, Removal and Installation).
