Roof Opening Panel Rear Drain Hose (G1063822): Removal

  1. Refer to: Loadspace Trim Panel RH - 4-Door (Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: Headliner - 4-Door (Interior Trim and Ornamentation, Removal and Installation).
  3. NOTE: RH side only.

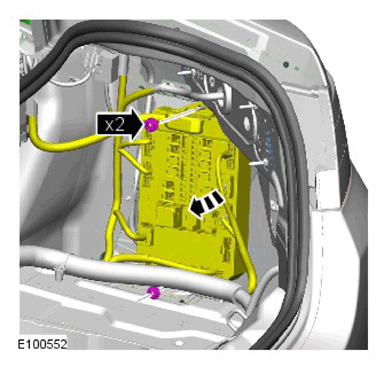

    G11420967
  4. NOTE: RH illustration shown, LH is similar.

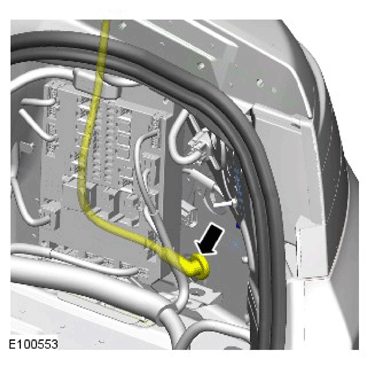

    G11420968

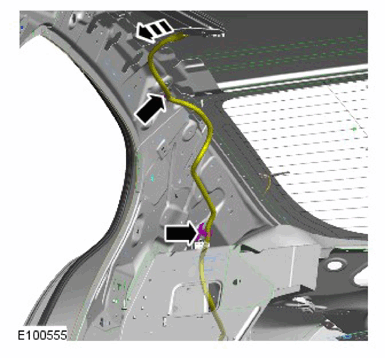

  5. NOTE: RH illustration shown, LH is similar.
    G11420969

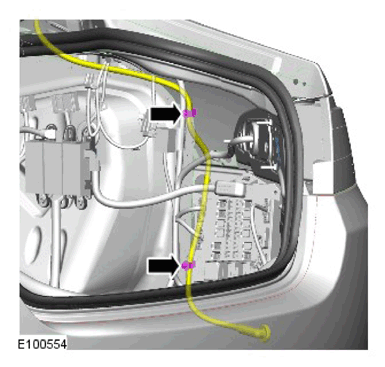

  6. NOTE: RH illustration shown, LH is similar.
    G11420970
