Roof Opening Panel Motor (G1063820): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Overhead Console (Instrument Panel and Console, Removal and Installation).

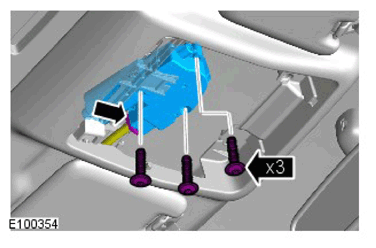

  2. G11420966

Torque Specification: 4 Nm
