Roof Opening Panel Glass (G1063819): Removal

NOTE: Removal steps in this procedure may contain installation details.

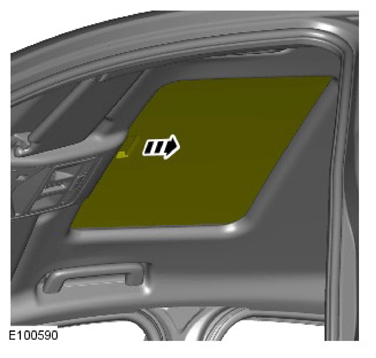

  1. G11420962

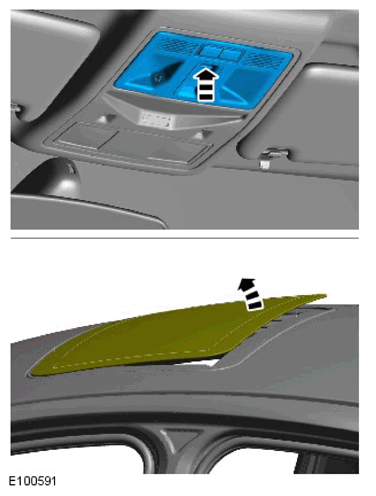

  2. G11420963
  3. NOTE: Right-hand shown, left-hand similar.

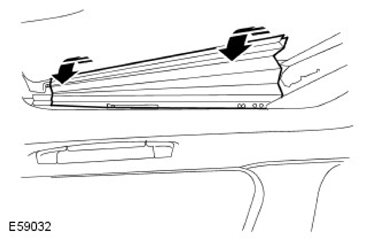

    G11420964
    • Repeat procedure for the other side.
  4. NOTE: Right-hand shown, left-hand similar.

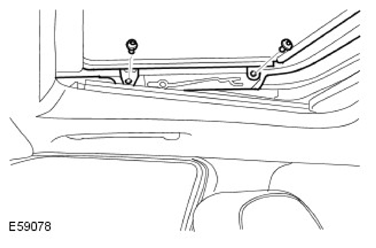

    G11420965

    Torque Specification: 4 Nm
