Roof Opening Panel Front Drain Hose (G1063818): Removal

  1. Refer to: Fender Splash Shield (Front End Body Panels, Removal and Installation).

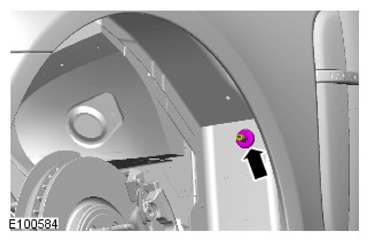

  2. G11420953
  3. Refer to: Cowl Side Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
  4. Refer to: Headliner - 4-Door (Interior Trim and Ornamentation, Removal and Installation).

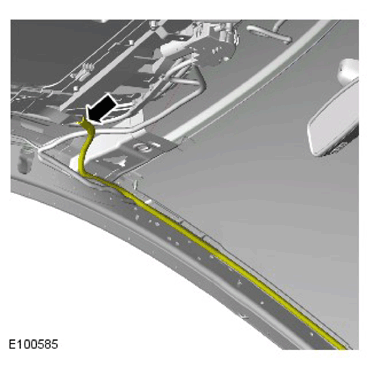

  5. G11420954

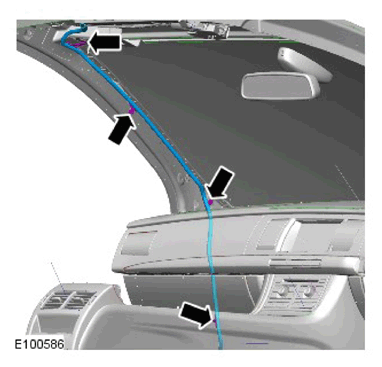

  6. G11420955
