Roof Opening Panel Frame (G1065655): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Motor Synchronization (G1072188) (General Procedures).
  2. Refer to: Headliner - 4-Door (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: Roof Opening Panel Glass (G1063819)  (Removal and Installation).

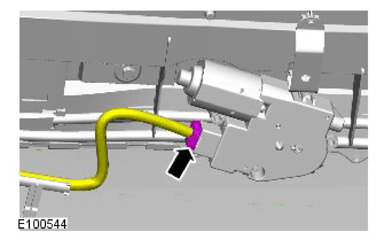

  4. G11420956

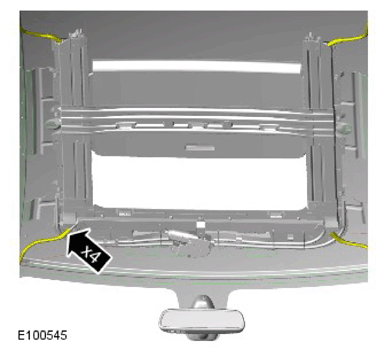

  5. G11420957
  6. WARNING: This step requires the aid of another technician.
    NOTE: Note the fitted position of the spacers.

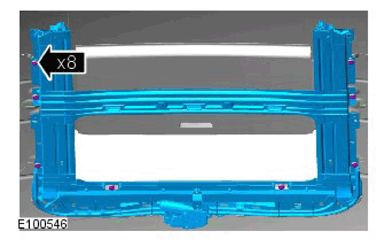

    G11420958

    Torque Specification: 8 Nm

  7. NOTE: Do not disassemble further if the component is removed for access only.

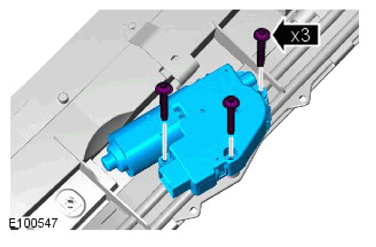

    G11420959

    Torque Specification: 4 Nm

  8. NOTE: Make sure that all surfaces are clean and free of foreign material before applying sealant.

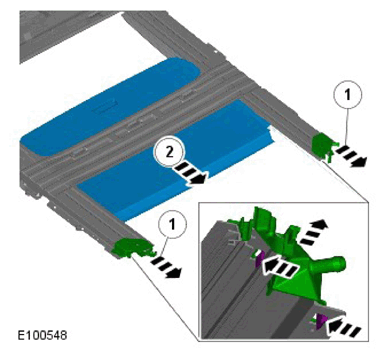

    G11420960

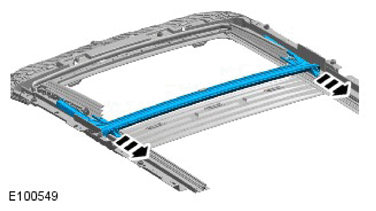

  9. G11420961
