Roof Opening Panel Alignment (G1071542)

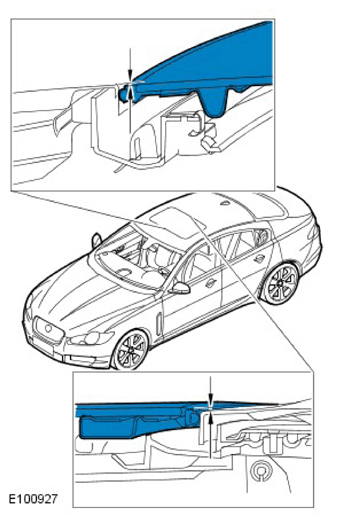

  1. G11420950

    With the roof opening panel closed, check the alignment of the glass to the roof panel. The glass should be central in its aperture. Profile of sunroof to body should be flush or up to 1.0 mm (0.40") low all round.

  2. Open the roof opening panel blind.

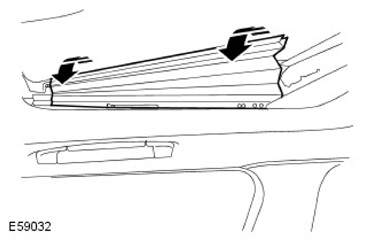

  3. G11420951

    Release the cover.

    Repeat the above procedure for the other side.

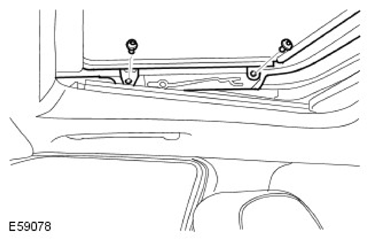

  4. G11420952

    Loosen the 4 roof opening panel Torx screws.

  5. Align the roof opening panel.

    TORQUE specification: 4 Nm

  6. Install the cover.

    Repeat the above procedure for the other side.

  7. Close the roof opening panel blind.
