Roof Opening Panel -- XF/X250
>>
Roof Opening Panel
>>
Description And Operation
>>
Roof Opening Panel - System Operation And Component Description (G970604)
>>

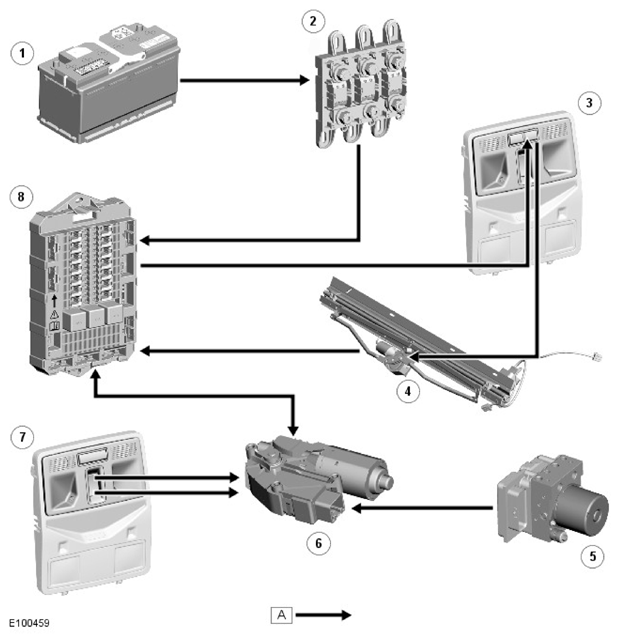

Control Diagram
Control Diagram
NOTE:
A
= Hardwired
ITEM
DESCRIPTION
1
Battery
2
Megafuse (250 A)
3
Rear window sunblind, switch
4
Rear window sunblind, motor
5
ABS (anti-lock brake system) module
6
Roof opening panel, control module
7
Roof opening panel, rocker switch
8
CJB (central junction box)
