Rear Seat Cushion (G1029609): Removal

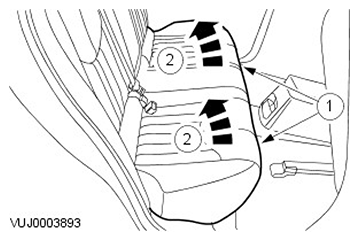

  1. G11423122

    Detach the rear seat cushion.

    Release the rear seat cushion retaining clips.

    Detach the rear seat cushion.

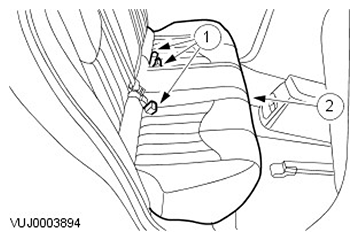

  2. G11423123

    Remove the rear seat cushion.

    Guide the safety belt buckles through the rear seat cushion aperture.

    Remove the rear seat cushion.
