Rear Seat Backrest Cover (G1058170): Removal

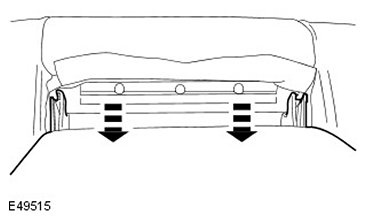

Remove the rear seat cushion.
For additional information, refer to: Rear Seat Cushion (Seating, Removal and Installation).

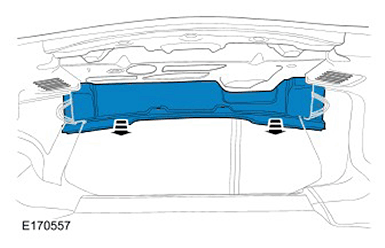

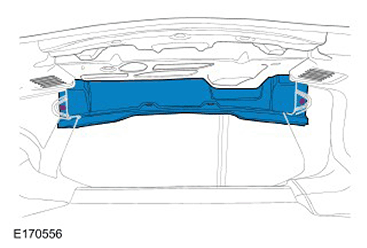

If equipped.
If equipped.

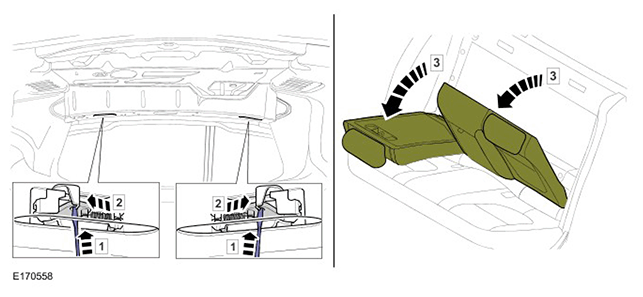

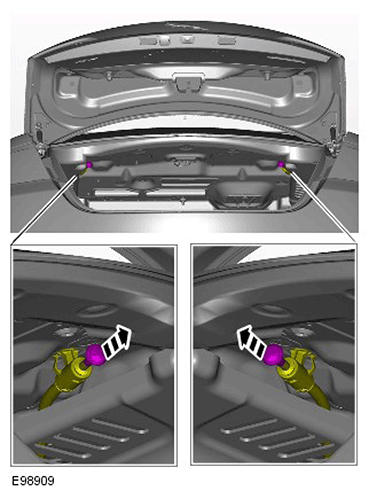

Release both the rear seat back rest catches.

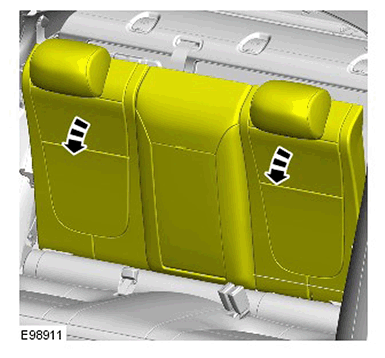

Fold down the rear seat backrest.

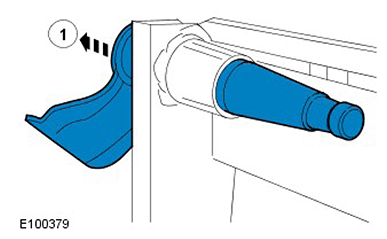

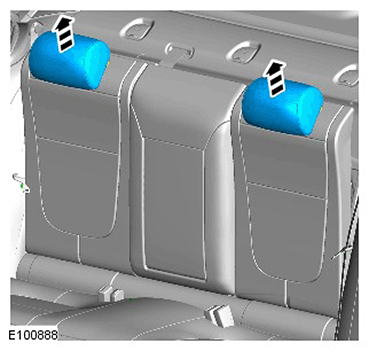

Remove the rear seat head restraint(s).

Lower both rear seats.
NOTE:
- The procedure must be carried out on both sides of the seat.
- Left-hand shown, right-hand similar.

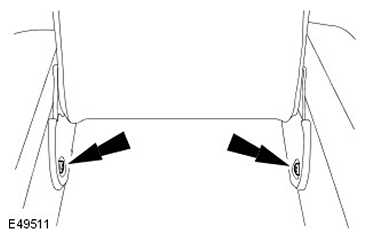

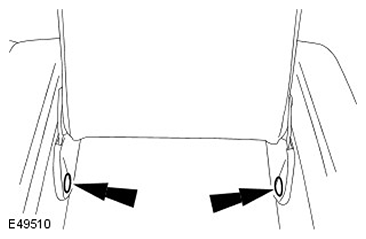

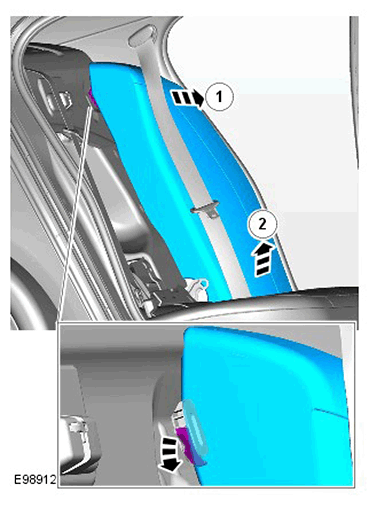

Remove both rear seat bolsters.
CAUTION: Make sure no damage is caused to the vehicle trim when removing the rear seat.

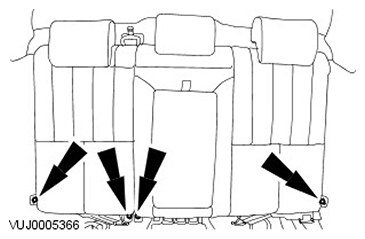

With assistance, remove the rear seat backrest.

Both rear seat backrests need to be in an upright position but not latched for access to retaining bolts.
Release the backrest cover.

Release all 4 sides.
Remove the rear seat backrest hinge(s).
Remove the rear armrest retaining screw covers.
Remove the rear armrest retaining screws.

Remove the 2 Torx screws.
CAUTION: Make sure no damage is caused to the seat trim when removing the seat armrest.

Remove the rear seat armrest.
Release the rear seat backrest cover from the armrest aperture.
Release the 3 plastic retaining strips from the securing clips.
Remove the cappings from the rear head restraint retaining posts.
Release the rear backrest cover over the head restraint posts.
Remove the rear seat backrest cushion and cover from the rear seat backrest.
Remove and discard the hog rings.

Remove the 36 hog rings securing the rear 60% seat backrest cover to the backrest seat cushion.

Remove the 26 hog rings securing the rear 40% seat backrest cover to the backrest seat cushion.
Remove the rear seat backrest cover.
