Lumbar Assembly (G1070558): Removal

  1. Make the air bag supplemental restraint system (SRS) safe.

    Refer to: Standard Workshop Practices (General Information, Description and Operation).

  2. Refer to: Front Row Seat Backrest Cover  (Seating, Removal and Installation).

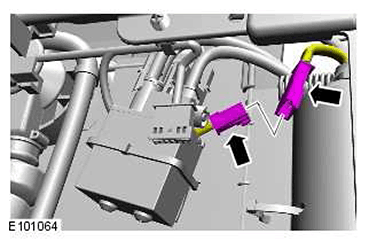

  3. G11423094

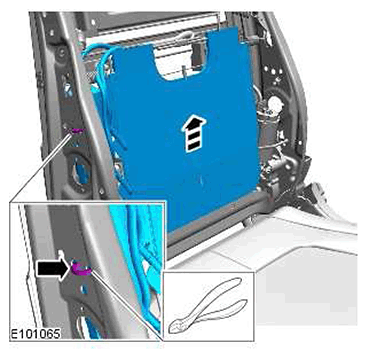

  4. G11423095
