Front Seat Height Adjustment Motor (G1060917): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Make the air bag supplemental restraint system (SRS) safe. Refer to: Standard Workshop Practices (General Information, Description and Operation).
  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  3. Remove the front seat.

    Refer to: FRONT ROW SEAT (G1058153)  (Seating, Removal and Installation).

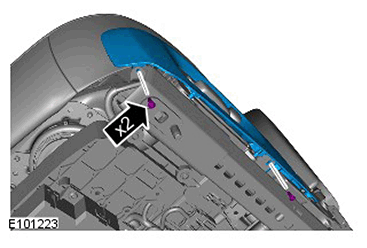

  4. G11423124

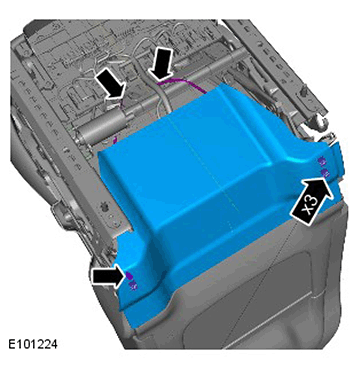

  5. G11423125

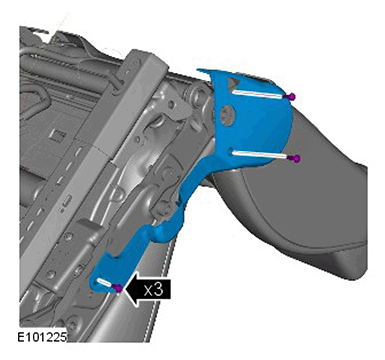

  6. G11423126

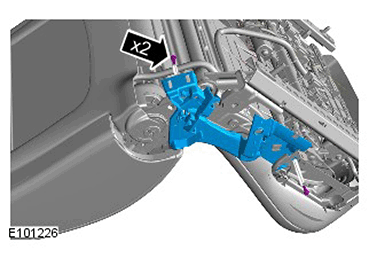

  7. G11423127

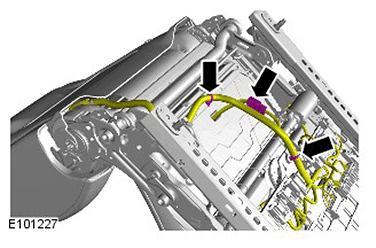

  8. G11423128
  9. WARNING: This step requires the aid of another technician.
    CAUTION: Take extra care when handling the component.

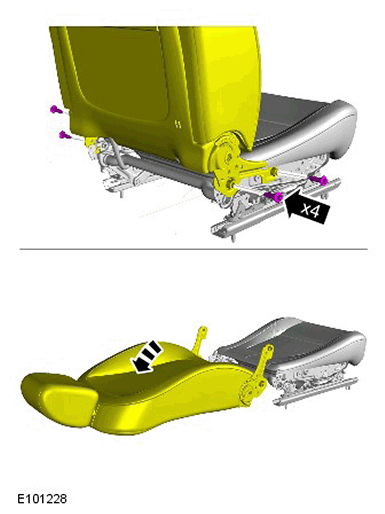

    G11423129

    Torque: 35 Nm

  10. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

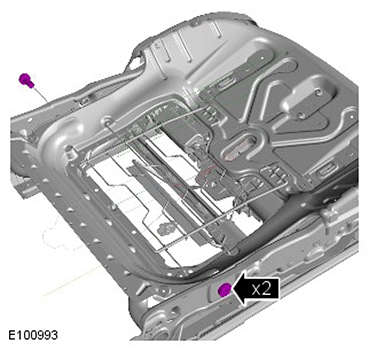

    G11423130

    Torque: 35 Nm

  11. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

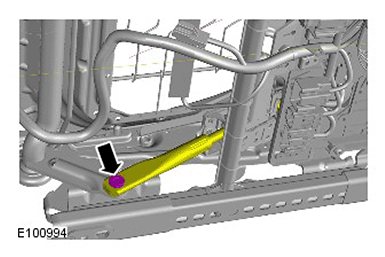

    G11423131

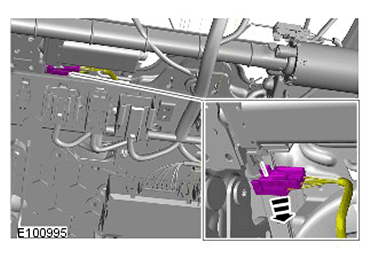

  12. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11423132
  13. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

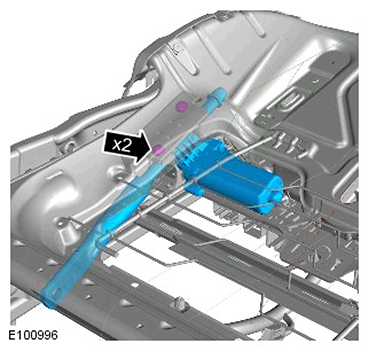

    G11423133
