Front Seat Head Restraint Motor (G1070559): Installation

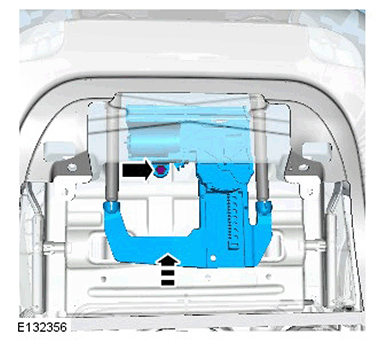

  1. G11423153
  2. CAUTION: Support the head restraint motor assembly while pushing down on the head restraint, you should hear two audible clicks to secure the head restraint to the motor assembly. Failure to do follow this instruction may result in failure of the component.

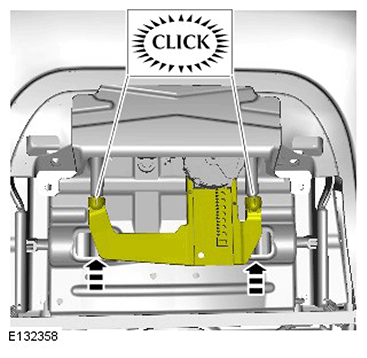

    G11423154

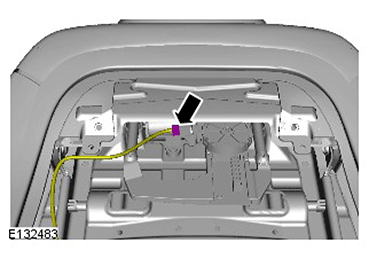

  3. G11423155

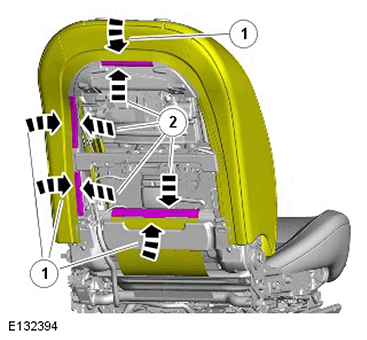

  4. G11423156

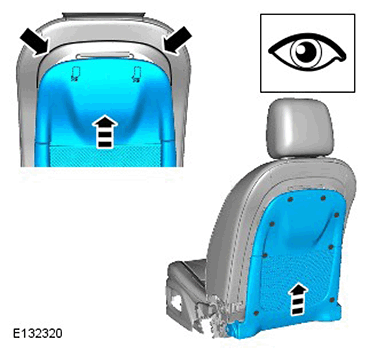

  5. G11423157

    Install the front seat backrest cover.

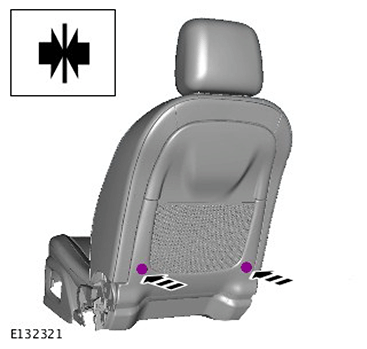

  6. G11423158

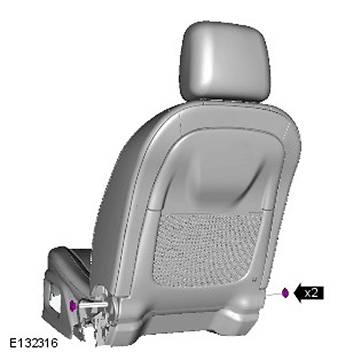

  7. G11423159

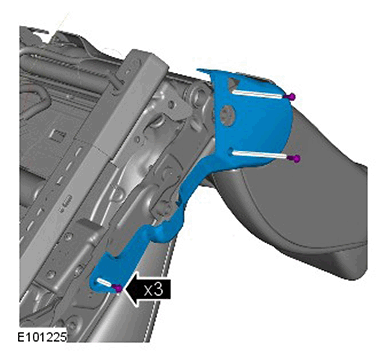

  8. G11423160

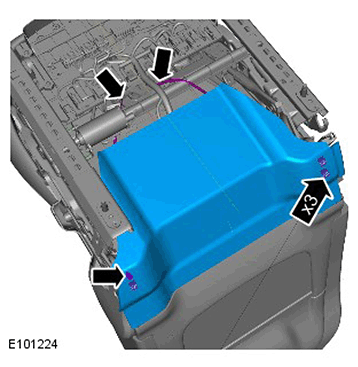

  9. G11423161
  10. For additional information, refer to: Front Safety Belt Buckle (Safety Belt System, Removal and Installation).
  11. For additional information, refer to: FRONT ROW SEAT (G1058153)  (Removal and Installation).
  12. For additional information, refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
