Front Seat Bolster Pump (G1188441): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Front Seat Backrest Cover  (Seating, Removal and Installation).

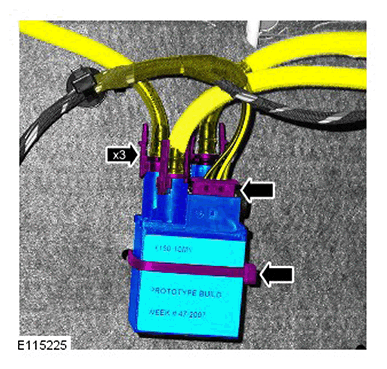

  3. G11423074
