Front Seat Backrest Cover Trim Panel (G1390156): Installation

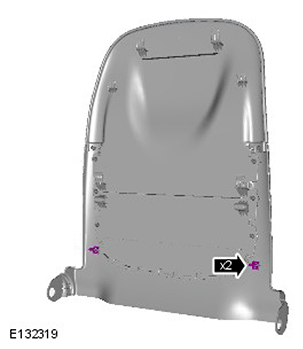

  1. G11423170

    Install new clips.

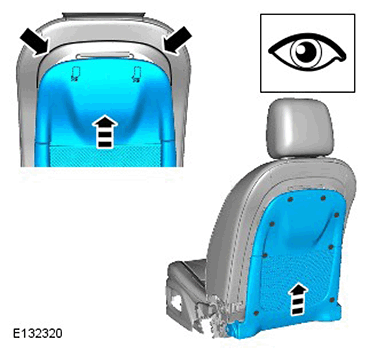

  2. G11423171

    Install the front seat back rest cover trim panel.

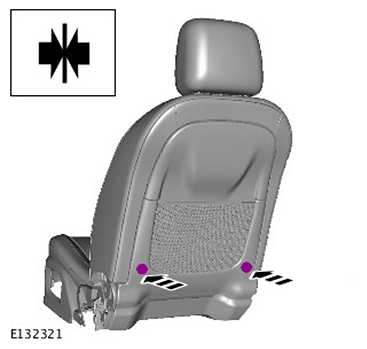

  3. G11423172

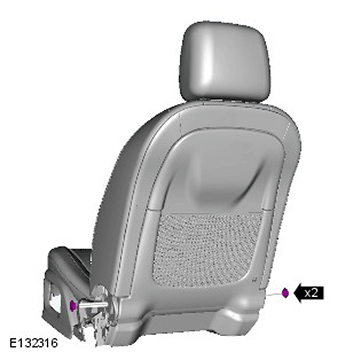

  4. G11423173

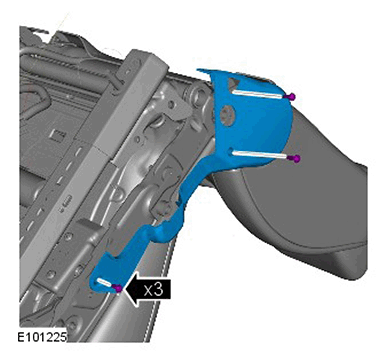

  5. G11423174

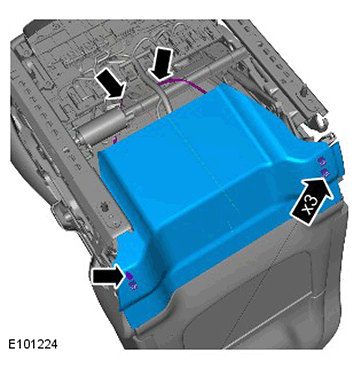

  6. G11423175
  7. Refer to: FRONT ROW SEAT (G1058153)  (Removal and Installation).
