Front Row Seat Cushion Cover (G1058162): Removal

  1. Refer to: Front Safety Belt Buckle (Seatbelt System, Removal and Installation).

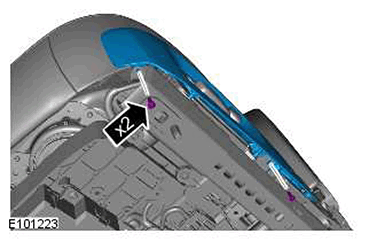

  2. G11423075

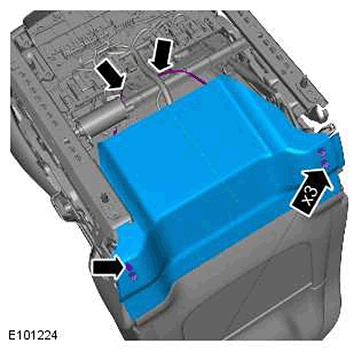

  3. G11423076

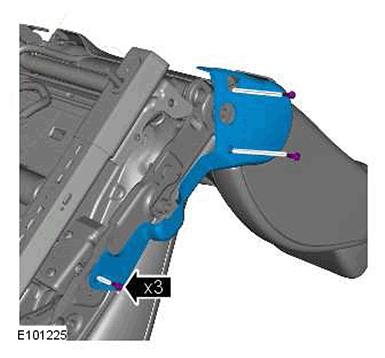

  4. G11423077

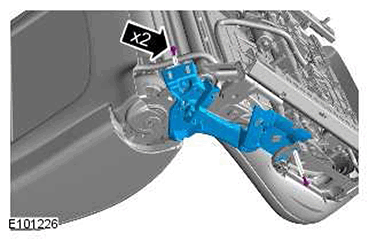

  5. G11423078

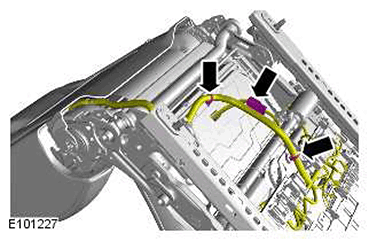

  6. G11423079
  7. WARNING: This step requires the aid of another technician.
    CAUTION: Take extra care when handling the component.

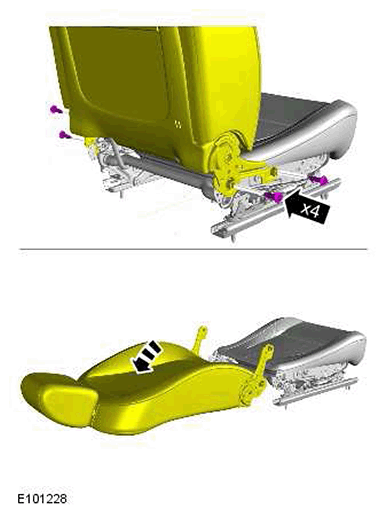

    G11423080

    Torque: 35 Nm

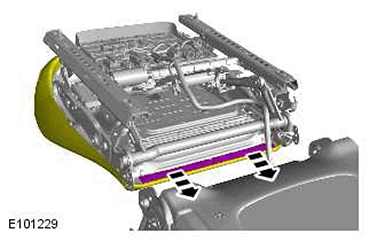

  8. G11423081

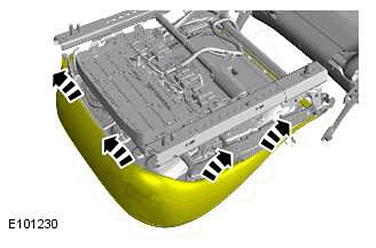

  9. G11423082

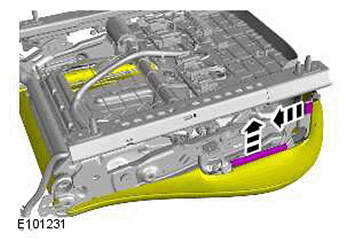

  10. G11423083

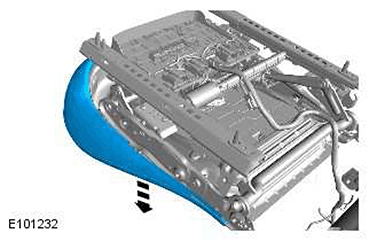

  11. G11423084

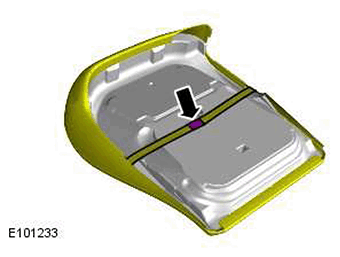

  12. G11423085
  13. NOTE: Make sure that new hog rings are installed.

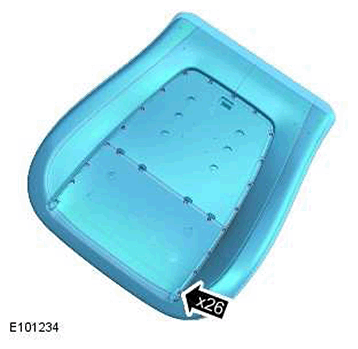

    G11423086
