Front Row Seat Backrest Cover (G1058160): Removal

  1. Make the air bag supplemental restraint system (SRS) safe.

    For additional information, refer to: Standard Workshop Practices (General Information, Description and Operation).

  2. Remove the front seat.

    For additional information, refer to: Front Row Seat  (Seating, Removal and Installation).

  3. Remove the side air bag module.

    For additional information, refer to: Side Air Bag Module (Supplemental Restraint System, Removal and Installation).

  4. NOTE: If equipped.

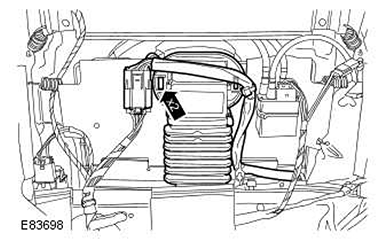

    G11423063

    Reposition the front seat backrest thermo-electric device.

  5. NOTE: If equipped.

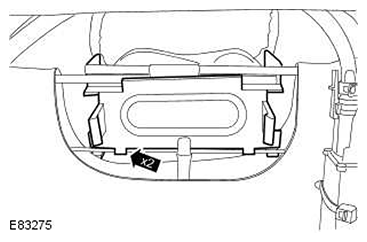

    G11423064

    Release the front seat backrest thermo-electric device duct

  6. NOTE: If equipped.

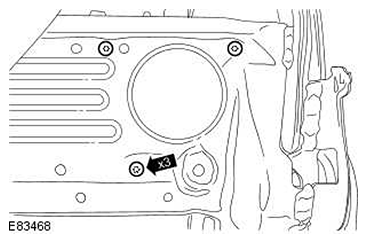

    G11423065

    Remove the front seat backrest thermo-electric device retaining screws.

  7. NOTE: If equipped.

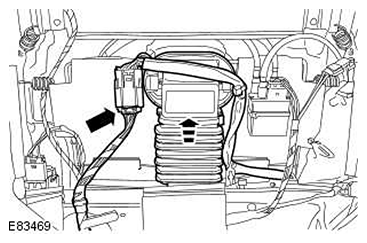

    G11423066

    Remove the front seat backrest thermo-electric device.

    • Disconnect the electrical connector.
  8. Remove the front seat head restraint.
  9. Remove the front seat head restraint motor.

    For additional information, refer to: Front Seat Head Restraint Motor  (Seating, Removal and Installation).

  10. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

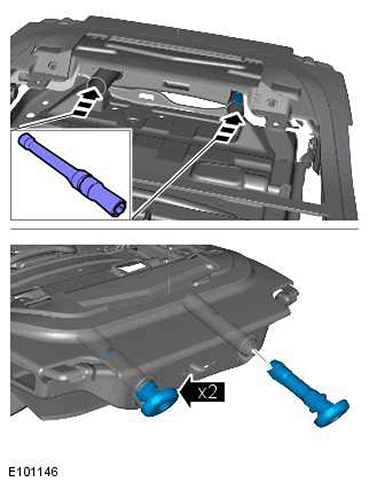

    G11423067

    Using a suitable tool, remove the front seat head restraint guide sleeves.

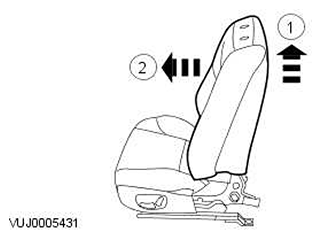

  11. G11423068

    Remove the front seat backrest cushion and cover from the front seat frame.

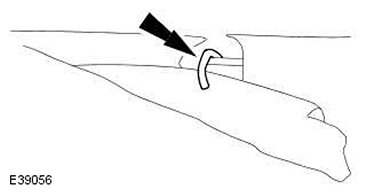

  12. G11423069

    Remove and discard the hog rings.

    • Remove the 22 hog rings.
  13. G11423070

    Remove the front seat backrest cover.
