Front Row Seat (G1058153): Removal

  1. Make the air bag supplemental restraint system (SRS) safe. For additional information, refer to: Standard Workshop Practices (General Information, Description and Operation).
  2. NOTE: Right-hand shown, left-hand similar.

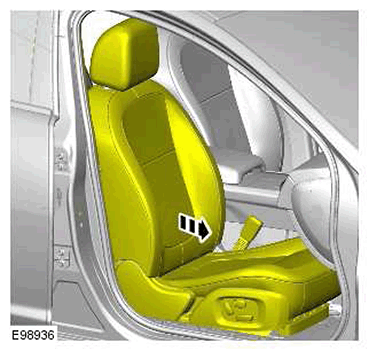

    G11423051

    Position the front seat fully forwards.

    • Lower the front seat head restraint to the fully lowered position.
  3. NOTE: Right-hand shown, left-hand similar.

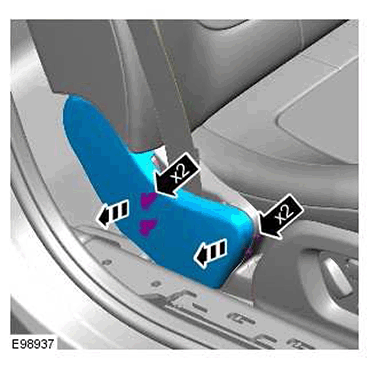

    G11423052

    Remove the safety belt lower anchor trim panel.

  4. NOTE: Right-hand shown, left-hand similar.

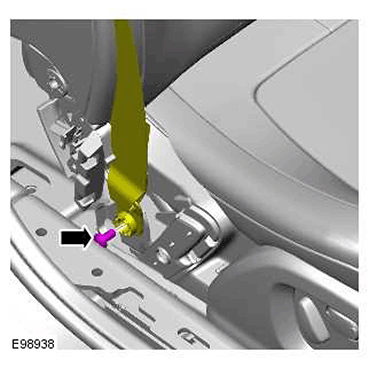

    G11423053

    Release the safety belt lower anchor from the front seat.

  5. NOTE:
    • Left-hand shown, right-hand similar.
    • Some variation in the illustrations may occur, but the essential information is always correct.

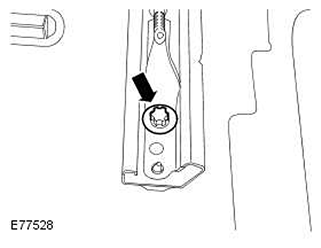

    G11423054

    Remove the 2 rear bolts from the front seat.

  6. Position the front seat fully rearwards.
  7. NOTE: Left-hand shown, right-hand similar.

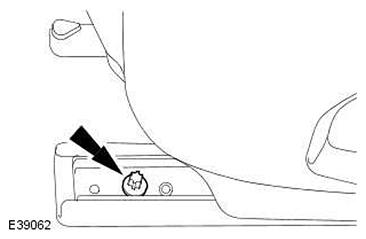

    G11423055

    Remove the 2 front bolts from the front seat.

  8. Reposition the front seat to the central position.
  9. Disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

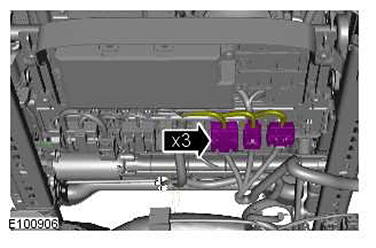

  10. G11423056

    Disconnect the front seat harness electrical connectors.

    • Tilt the front seat rearwards to aid disconnecting the front seat electrical connectors.
  11. NOTE:
    • Make sure no damage is caused to the vehicle trim when removing the front seat.
    • Left-hand shown, right-hand similar.

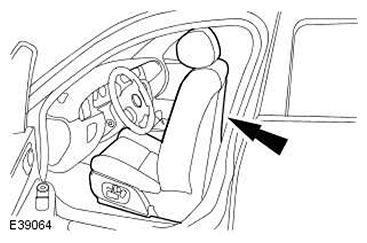

    G11423057

    Remove the front seat.
