Seating
>>
Description And Operation
>>
Seats - Component Location (G1526739)
>>

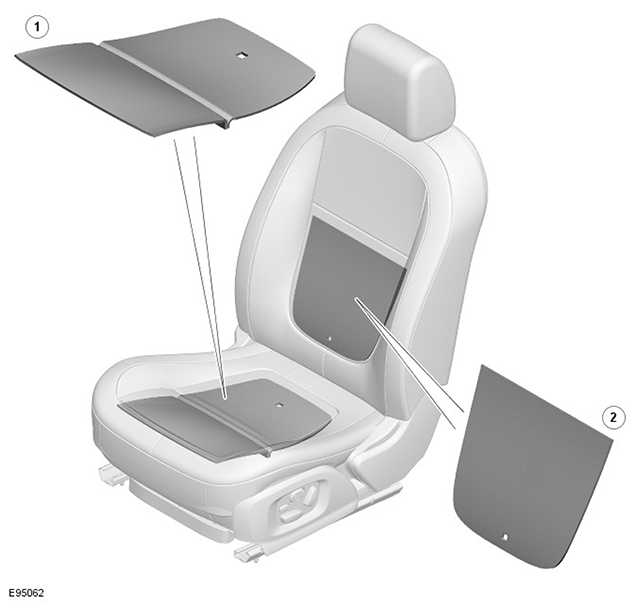

Component Location - Temperature - Heated Seats - Sheet 1 Of 2
Component Location - Temperature - Heated Seats - Sheet 1 Of 2
ITEM
DESCRIPTION
Note:
Heated front seat shown
1
Seat cushion heater element
2
Seat backrest heater element
