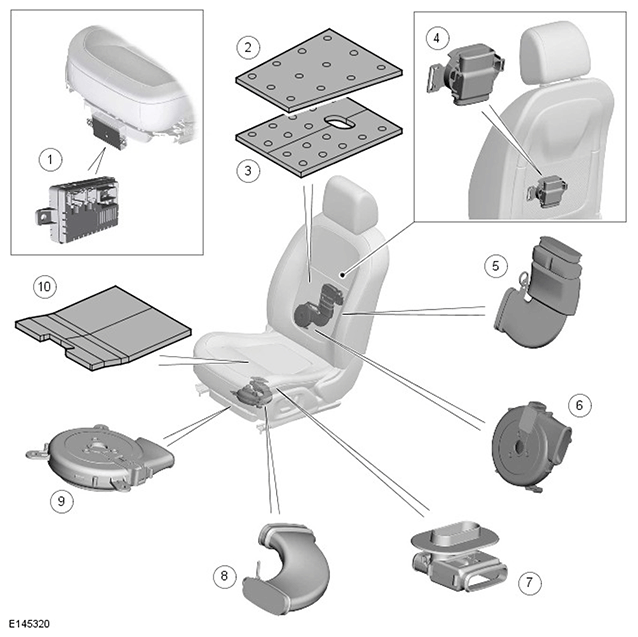

COMPONENT LOCATION - TEMPERATURE - CLIMATE SEATS (Where Fitted) - SHEET 2 OF 2
| ITEM | DESCRIPTION |
|---|---|
| Note: | Heated and cooled front seat shown |
| 1 | Seat Climate Control Module (SCCM) |
| 2 | Pad |
| 3 | Insulator foam |
| 4 | Climate seat backrest module |
| 5 | Climate seat backrest inlet duct |
| 6 | Climate seat backrest cooling fan motor |
| 7 | Climate seat cushion module |
| 8 | Climate seat cushion inlet duct |
| 9 | Climate seat cushion cooling fan motor |
| 10 | Insulator foam |
