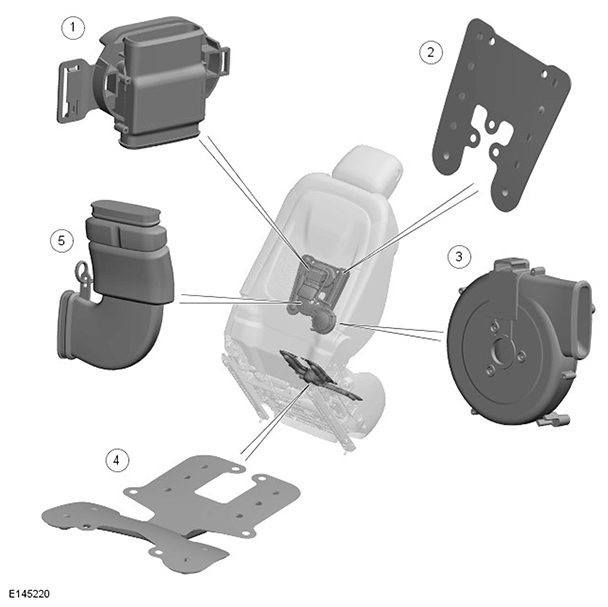

COMPONENT LOCATION - TEMPERATURE - CLIMATE SEATS ('R' Style Seats) - SHEET 2 OF 2

G11423022
ITEM DESCRIPTION
1 Climate seat backrest module
2 Backrest liner
3 Climate seat backrest cooling fan motor
4 Cushion liner
5 Climate seat backrest inlet duct
