Examples of Damage to Seat Cover

Below are some examples of damage that would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

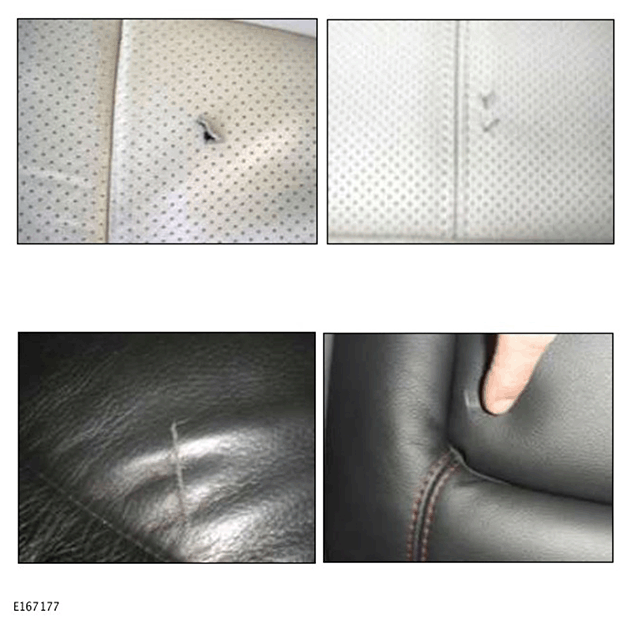

The examples below show damage such as cuts, tears and puncture holes. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement (unless the seat cover damage was noted on the Pre Delivery Inspection).

G11423028

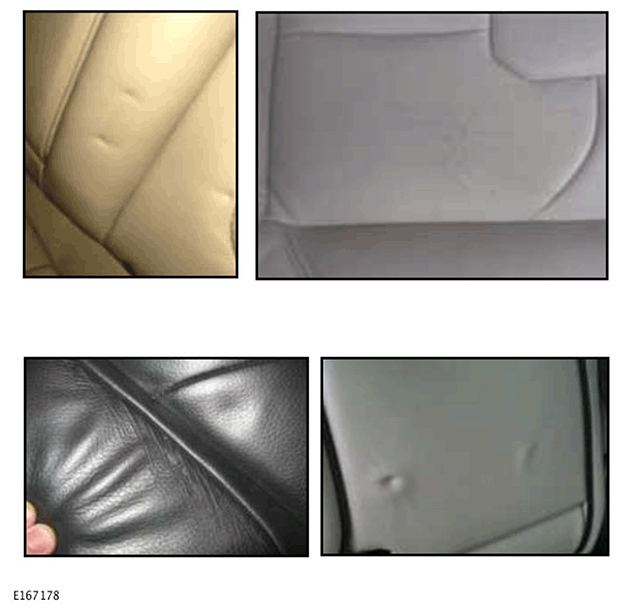

The examples below show damage such as scratches, scrapes, snags and indentation marks. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement (unless the seat cover damage was noted on the Pre Delivery Inspection).

G11423029

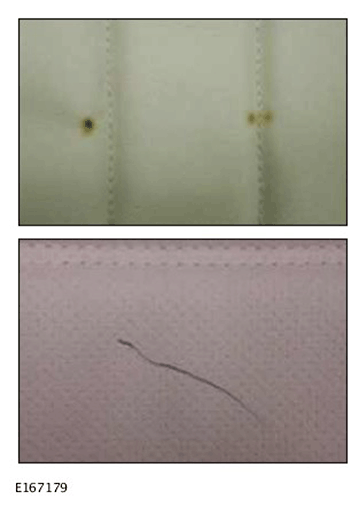

The examples below show damage such as pen marks and visual surface burns. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement (unless the seat cover damage was noted on the Pre Delivery Inspection).

G11423030
