Rear SUBFRAME Rear Bushing - V6 N/A 3.0 L Petrol (G1029607): Removal

  1. For additional information, refer to: Rear Subframe - V6 N/A 3.0L Petrol  (Removal and Installation).

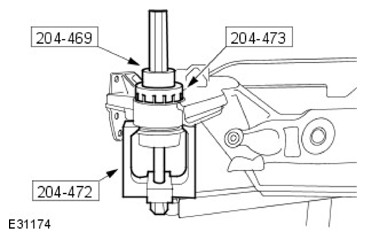

  2. NOTE: Note the orientation of the bushing before removal.
G11421971
