Rear SUBFRAME Rear Bushing - V6 N/A 3.0 L Petrol (G1029607): Installation

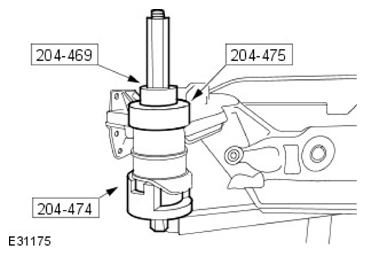

  1. NOTE: Make sure the bushing is correctly orientated.
    G11421972
  2. For additional information, refer to: Rear Subframe - V6 N/A 3.0L Petrol  (Removal and Installation).
