Rear SUBFRAME Rear Bushing - GTDI 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1214357): Removal

    Vehicles with 5.0L

  1. For additional information, refer to: REAR SUBFRAME - GTDI 2.0L PETROL/V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL (G1209120) (Removal and Installation).

    All vehicles

  2. NOTE: Note the orientation of the bushing before removal.

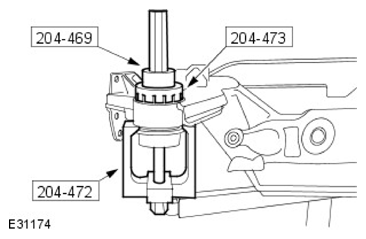

    G11421978
