Front SUBFRAME - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1209118): Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

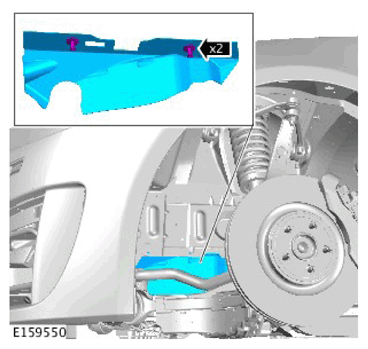

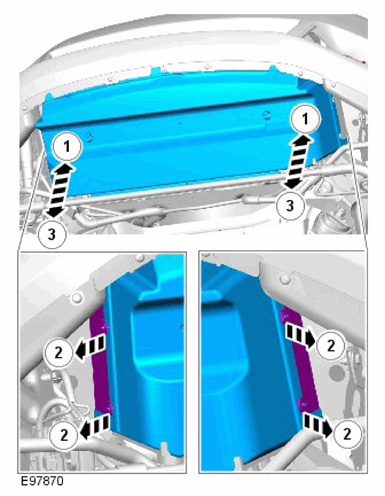

Refer to: Radiator Splash Shield (Removal and Installation).

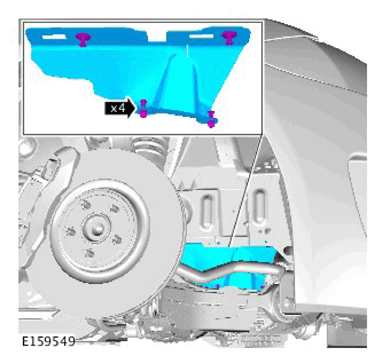

Refer to: Air Deflector (Removal and Installation).
Refer to: Engine Cover - V8 S/C 5.0L Petrol (Removal and Installation).

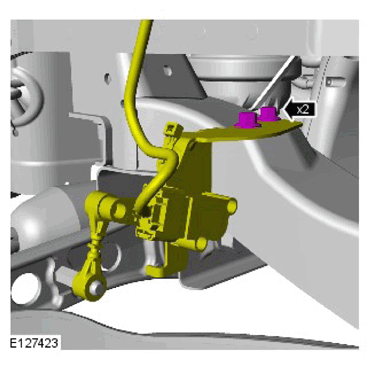

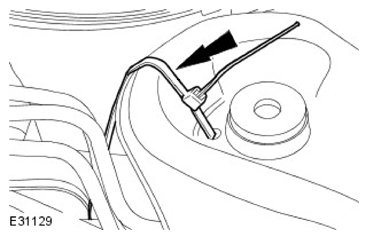

Secure the radiator assembly.

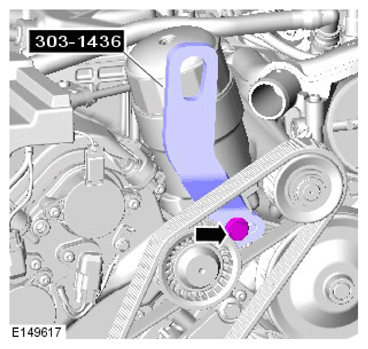

- Special Tool(s): 303-1436
- Torque Specification: 40 Nm

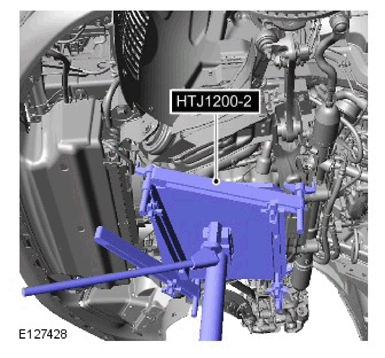

CAUTION:
- Support the engine on a jack. The angle may need to be adjusted during this procedure.
- Make sure to protect the paintwork.

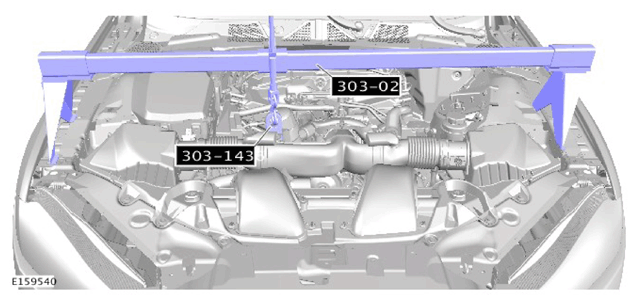

- Special Tool(s): 303-021
- Special Tool(s): 303-1436

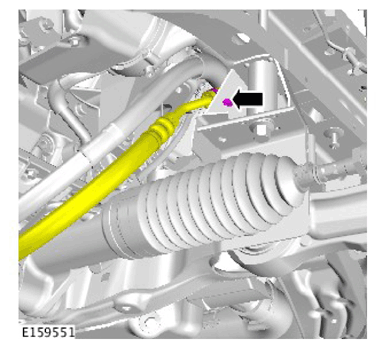

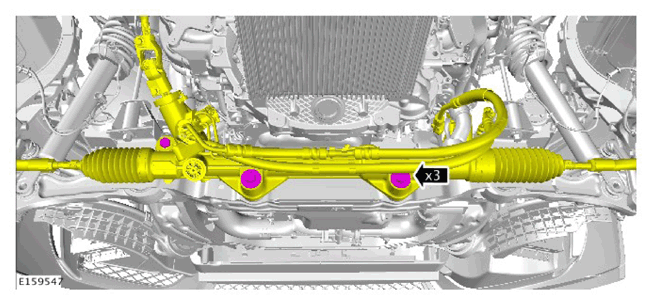

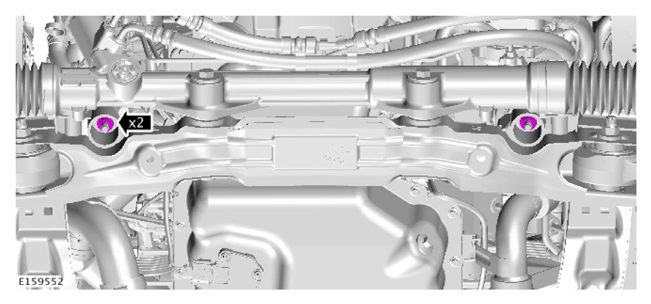

CAUTION: Make sure to support the steering gear.

NOTE: LHD illustration shown, RHD is similar.

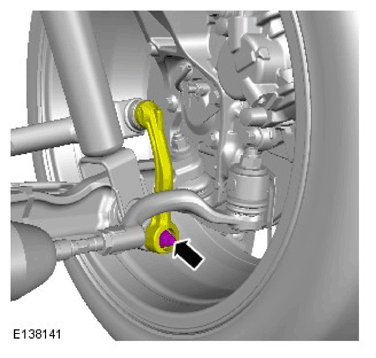

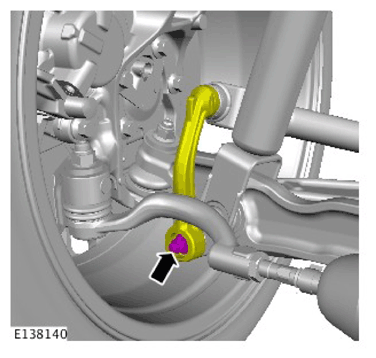

NOTE:
- LH illustration shown, RH is similar.
- Repeat the step for the other side.

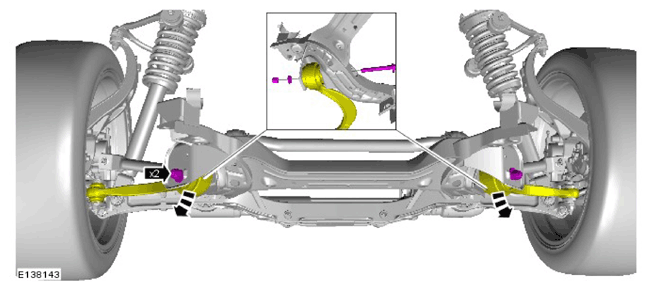

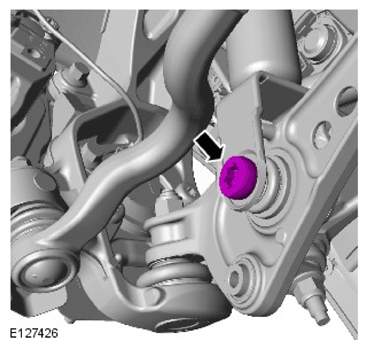

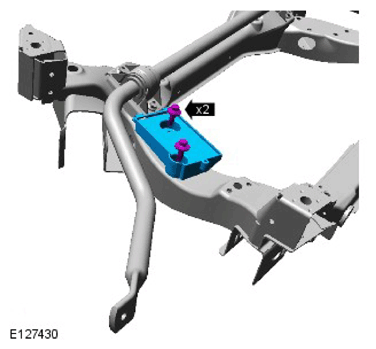

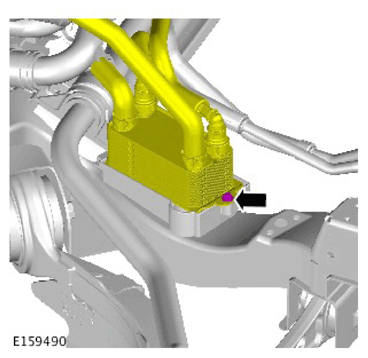

NOTE: Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.

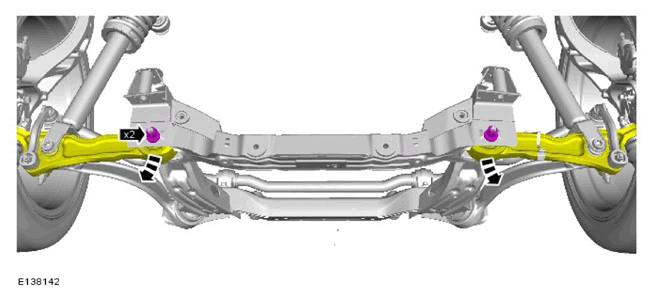

CAUTION: Make sure the wheel knuckle is supported. Failure to follow these instructions may result in damage to the vehicle.

NOTE: Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.

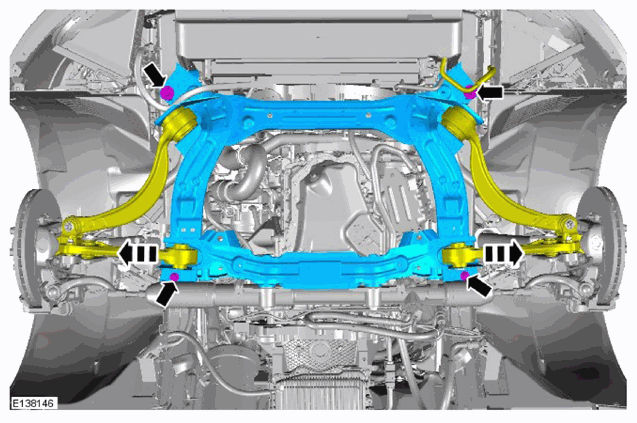

General Equipment: Powertrain Jack
CAUTION: Take extra care not to damage the air conditioning (A/C) pipes when lowering the component.

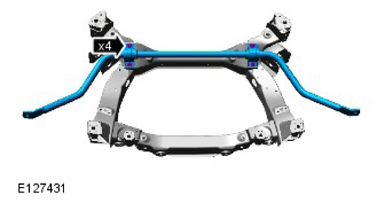

NOTE:
- This step requires the aid of another technician.
- Do not disassemble further if the component is removed for access only.
