Front SUBFRAME - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1209118): Installation
-
CAUTION: Only tighten the bolts finger-tight at this stage.
-

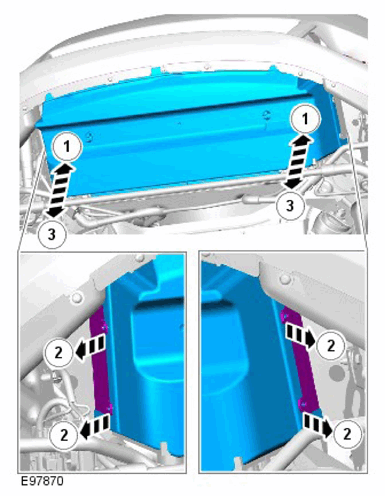

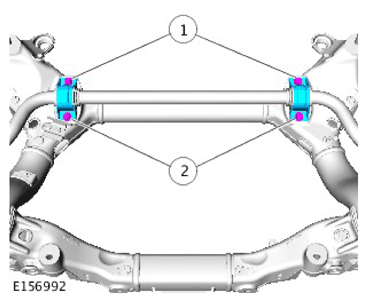

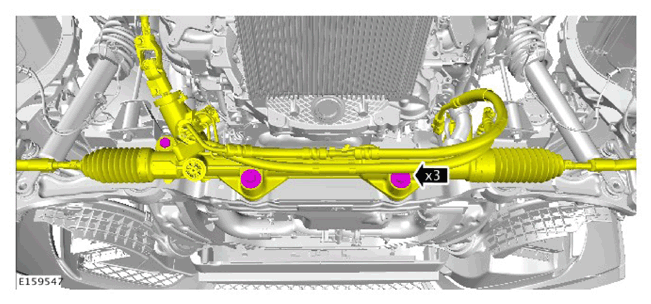

CAUTION: Tighten the bolts in the sequence shown.
Torque Specification:
Bolt 1 63 Nm
Bolt 2 63 Nm
Bolt 1 63 Nm

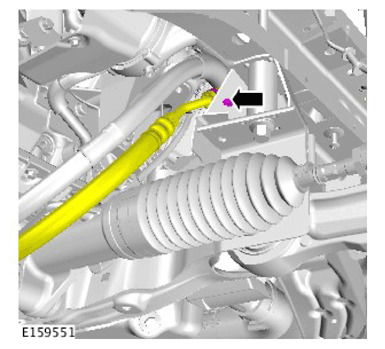

Torque Specification: 12 Nm

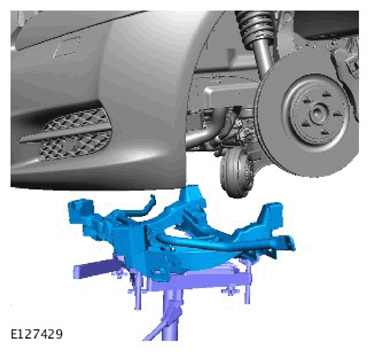

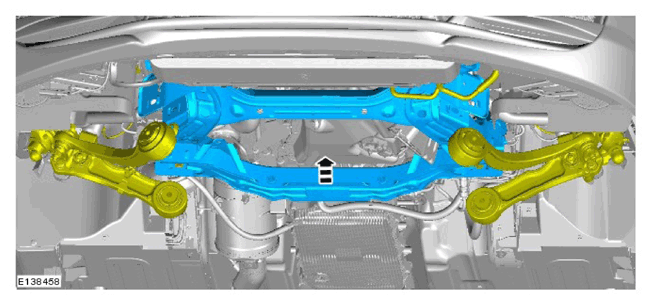

General Equipment: Powertrain Jack

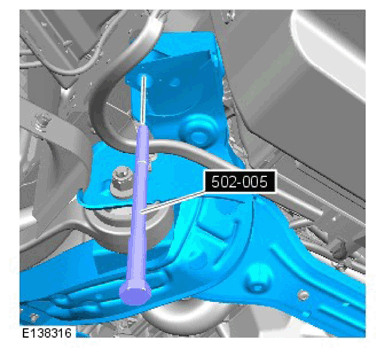

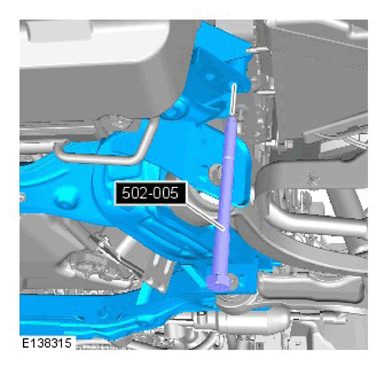

Install the special tool to the front subframe.
Special Tool(s): 502-005
Install the special tool to the front subframe.
Special Tool(s): 502-005
-
NOTE: New bolts must be installed.
Renew Part: Front subframe to body bolts.
Torque Specification:
Stage 1: 80 Nm
Stage 2: 240°
Remove the special tool.
Special Tool(s): 502-005
Remove the special tool.
Special Tool(s): 502-005

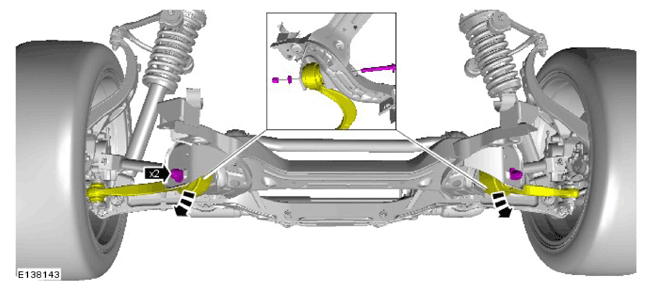

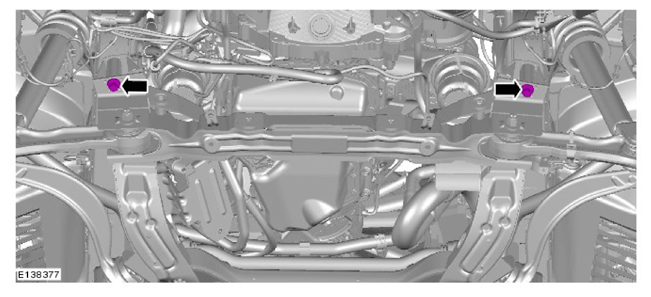

Torque Specification:
Stage 1: 100 Nm
Stage 2: 270°
-
CAUTION: Make sure each bolt aligns with the removal markings.

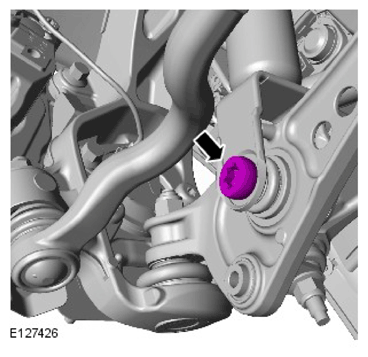

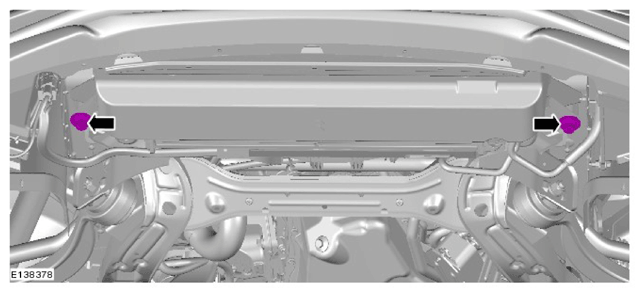

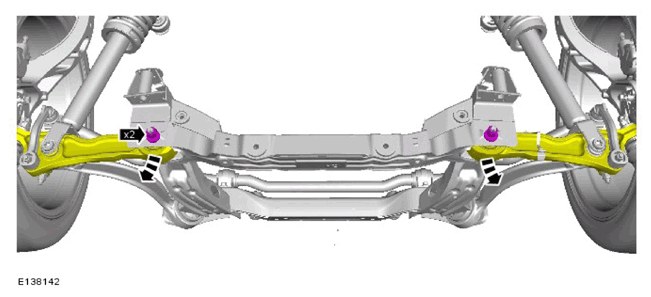

Torque Specification: 175 Nm
-
CAUTION: Make sure each bolt aligns with the removal markings.
Torque Specification: 175 Nm
-
NOTE: Repeat the step for the other side.
Torque Specification: 175 Nm

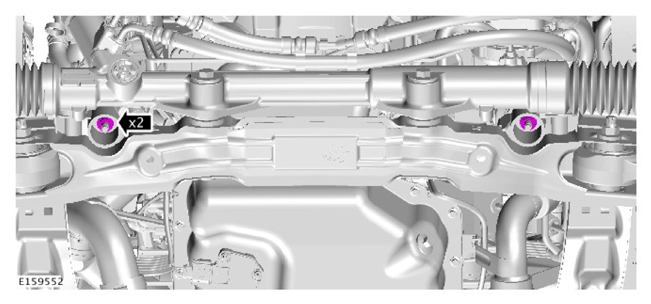

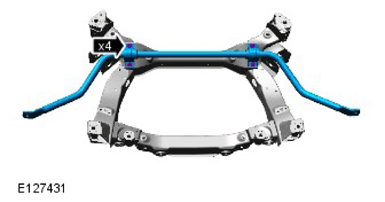

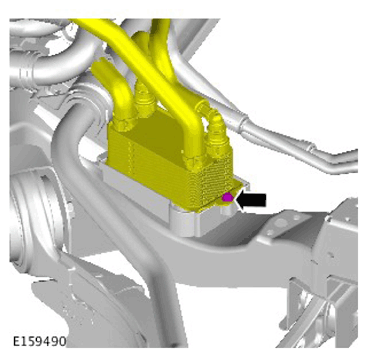

Torque Specification: 43 Nm
Torque Specification: 43 Nm

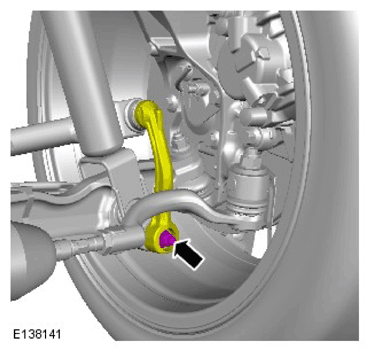

Torque Specification: 100 Nm

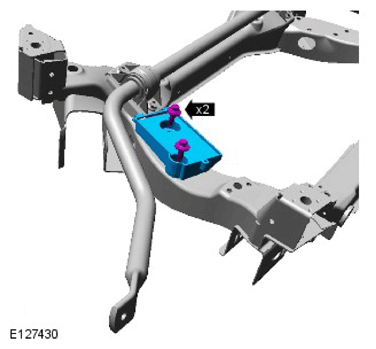

Torque Specification: 45 Nm

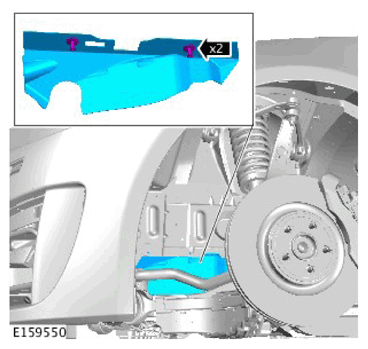

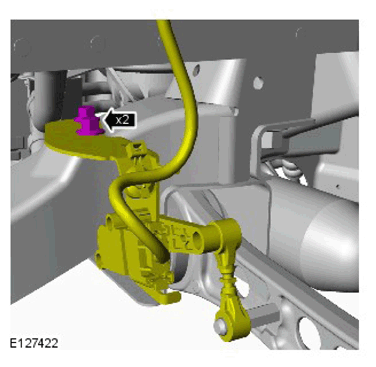

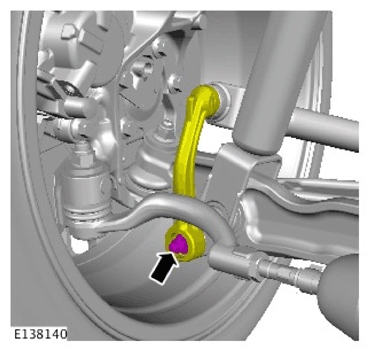

Torque Specification: 22 Nm

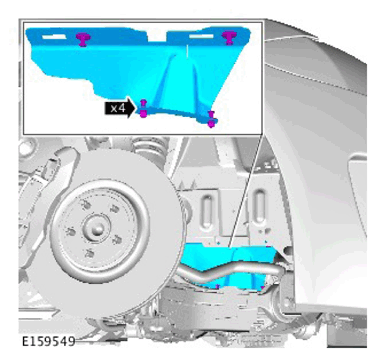

Torque Specification: 5 Nm
-

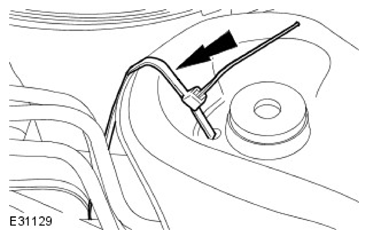

CAUTION: Make sure to protect the paintwork.

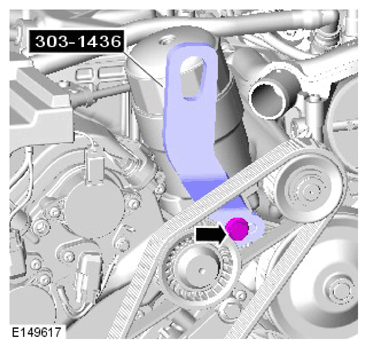

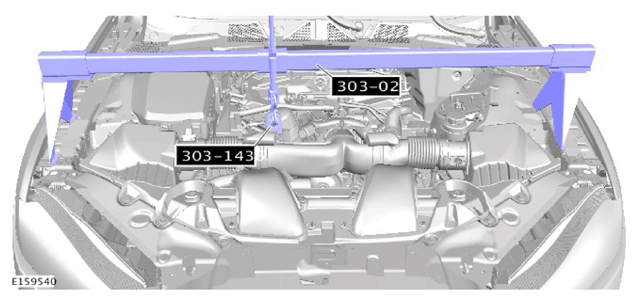

- Special Tool(s): 303-1436
- Special Tool(s): 303-021
Special Tool(s): 303-1436
Release the radiator assembly.
- Refer to: Engine Cover - V8 S/C 5.0L Petrol (Removal and Installation).
- Refer to: Air Deflector (Removal and Installation).
- Refer to: Radiator Splash Shield (Removal and Installation).
- Refer to: Battery Disconnect and Connect (General Procedures).
- Refer to: Camber and Caster Adjustment (General Procedures).
