Front SUBFRAME - GTDI 2.0L Petrol (G1574172): Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Radiator Splash Shield (Removal and Installation).
Refer to: Air Deflector (Removal and Installation).
Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).

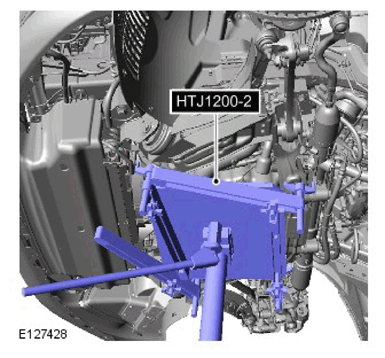

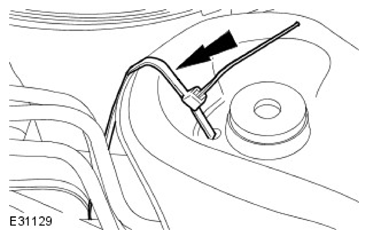

Secure the radiator assembly.

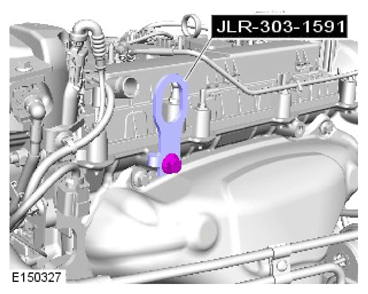

Special Tool(s): JLR-303-1591
CAUTION:
- Support the engine on a jack. The angle may need to be adjusted during this procedure.
- Make sure to protect the paintwork.

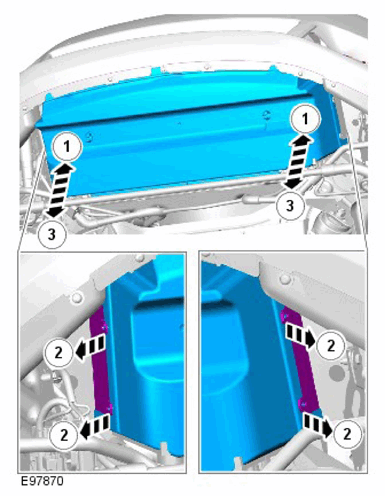

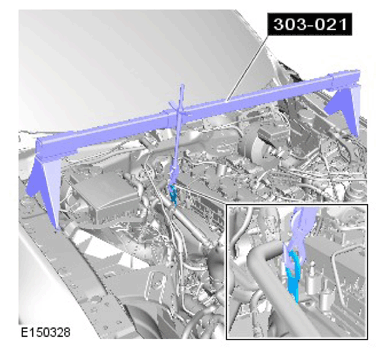

Support the engine with the lifting equipment.

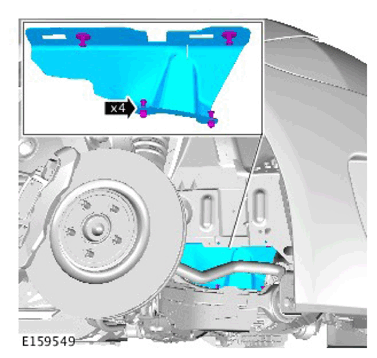

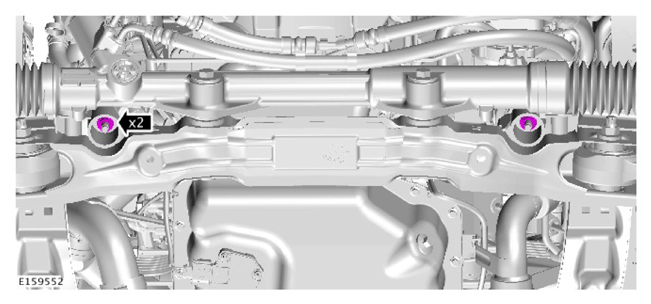

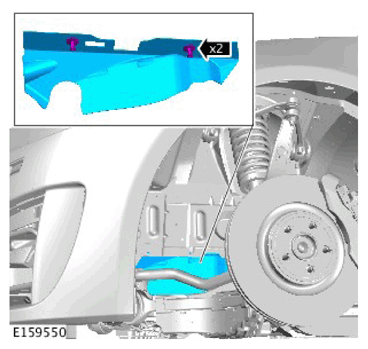

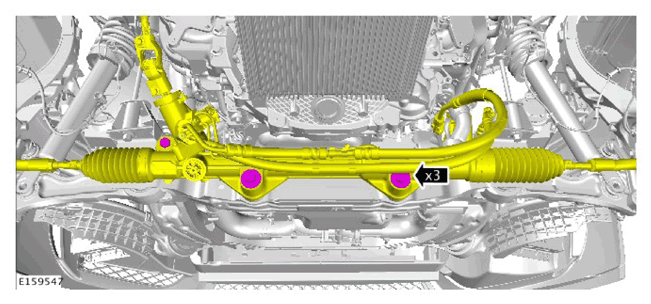

CAUTION: Make sure to support the steering gear.

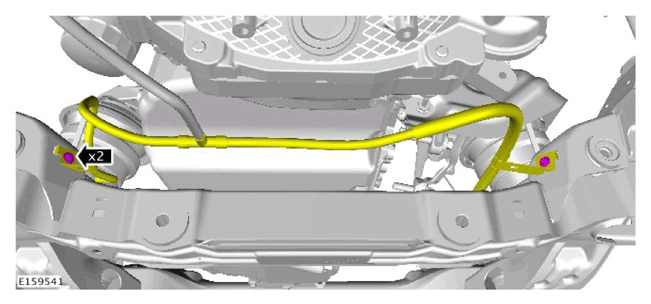

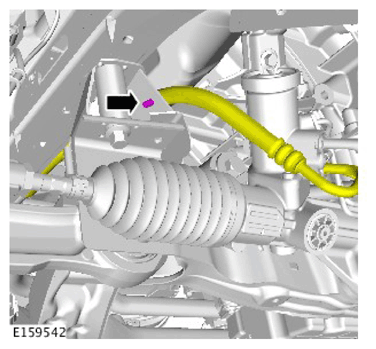

NOTE: LHD illustration shown, RHD is similar.
NOTE:

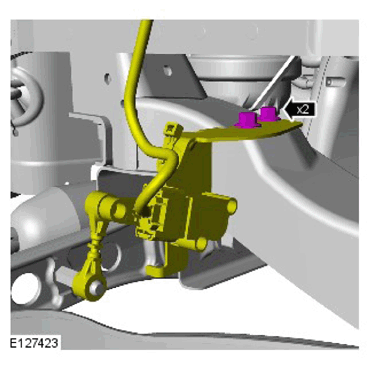

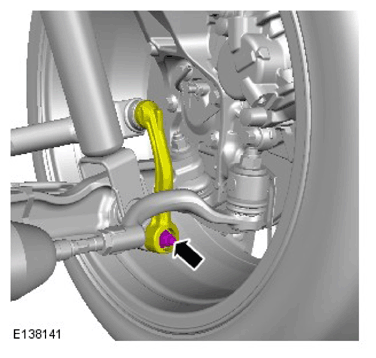

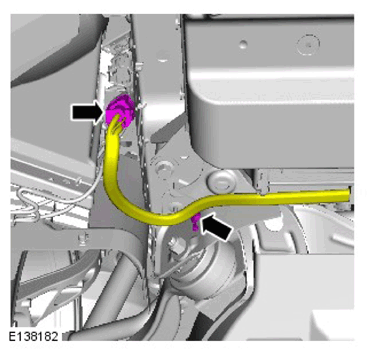

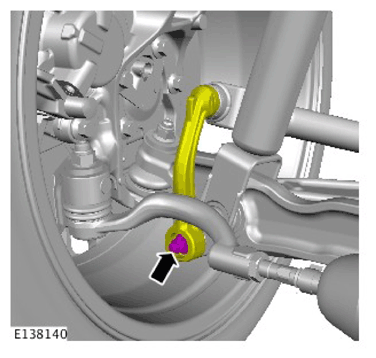

- LH illustration shown, RH is similar.
- Repeat the step for the other side.

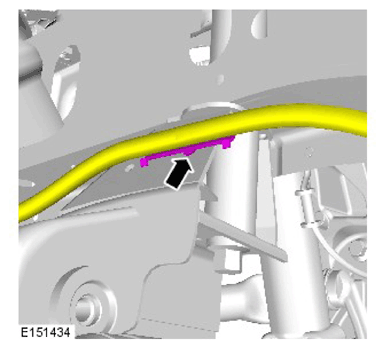

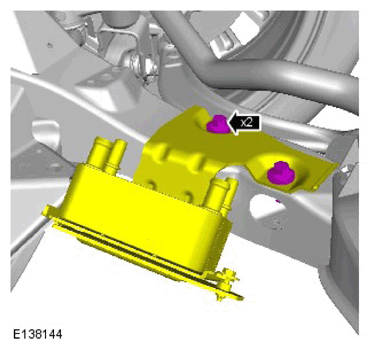

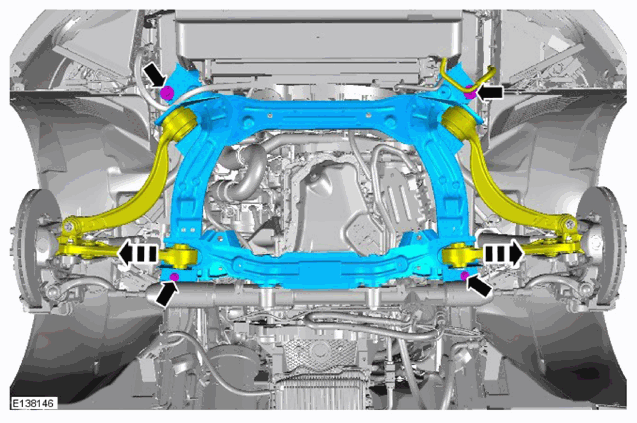

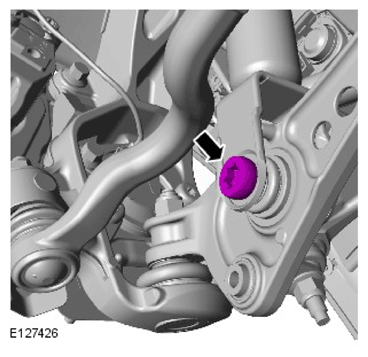

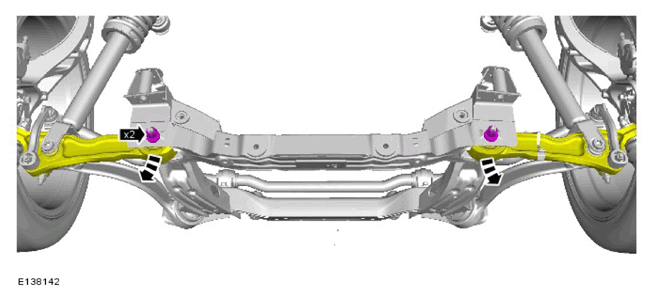

NOTE: Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.

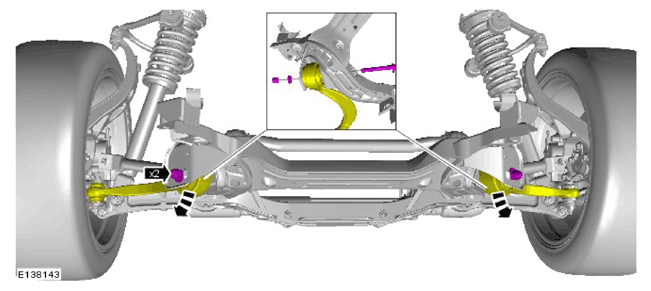

CAUTION: Make sure the wheel knuckle is supported. Failure to follow these instructions may result in damage to the vehicle.

NOTE: Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.
General Equipment: Powertrain Jack
CAUTION: Take extra care not to damage the air conditioning (A/C) pipes when lowering the component.
NOTE:
- This step requires the aid of another technician.

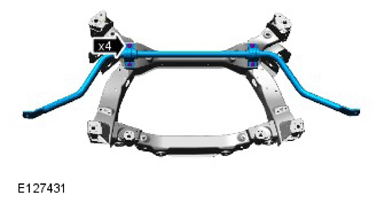

- Do not disassemble further if the component is removed for access only.
