Front SUBFRAME - GTDI 2.0L Petrol (G1574172): Installation

CAUTION: Only tighten the bolts finger-tight at this stage.
CAUTION: Tighten the bolts in the sequence shown.

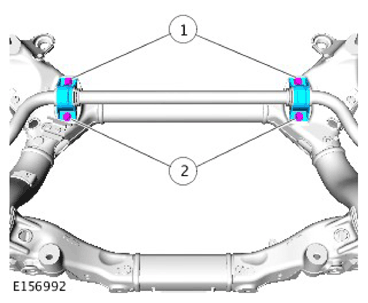

Fig 1: Front Subframe Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification:

Bolt 1 63 Nm

Bolt 2 63 Nm

Bolt 1 63 Nm

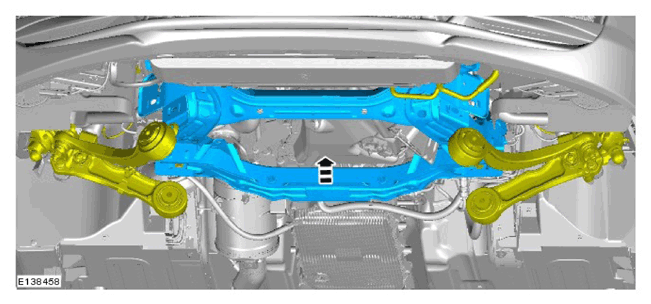

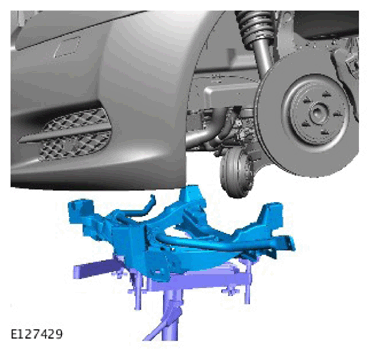

General Equipment: Powertrain Jack

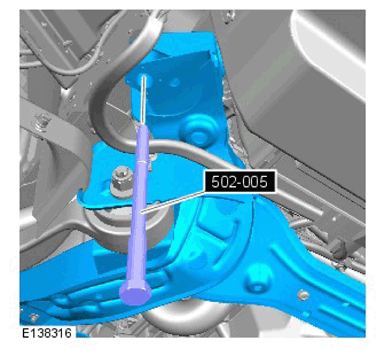

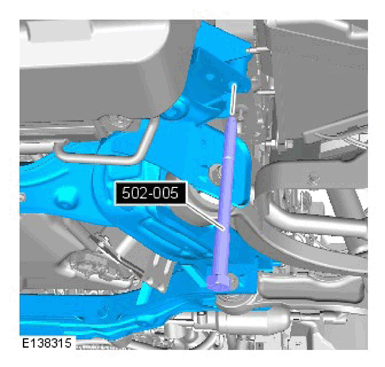

Install the special tool to the front subframe.

Special Tool(s): 502-005

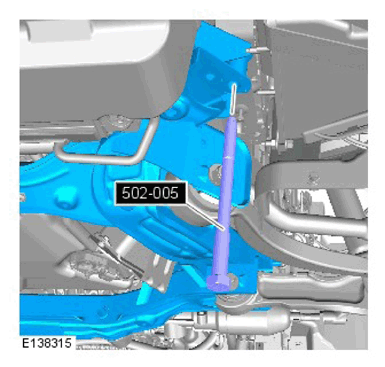

Install the special tool to the front subframe.

Special Tool(s): 502-005

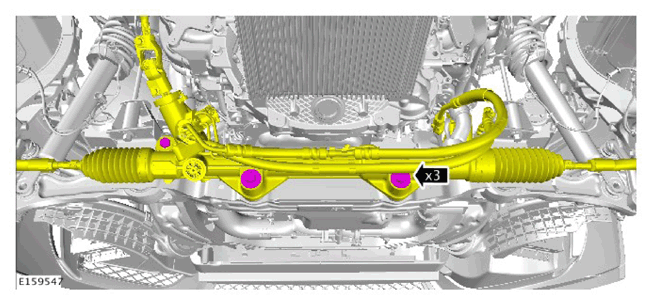

Torque Specification:

Stage 1: 80 Nm

Stage 2: 240°
Remove the special tool.

Special Tool(s): 502-005
Remove the special tool.

Special Tool(s): 502-005

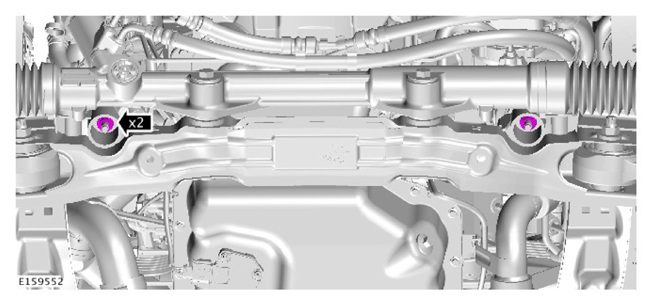

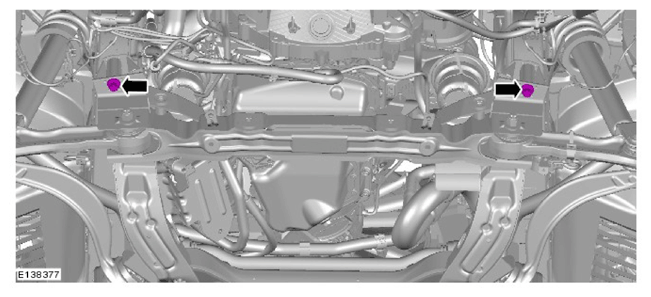

Torque Specification:

Stage 1: 100 Nm

Stage 2: 270°

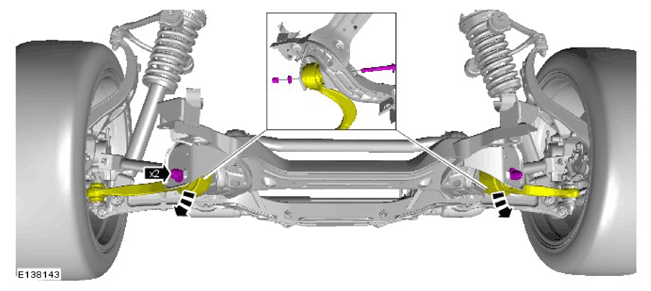

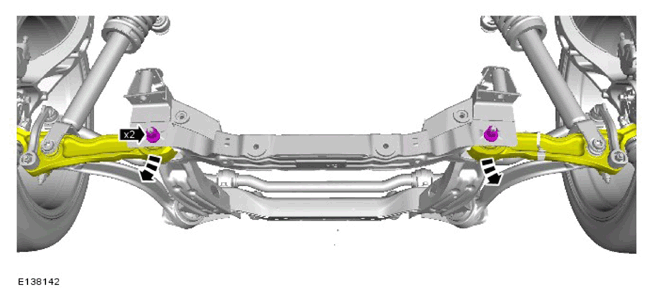

CAUTION: Make sure each bolt aligns with the removal markings.

Torque Specification: 175 Nm

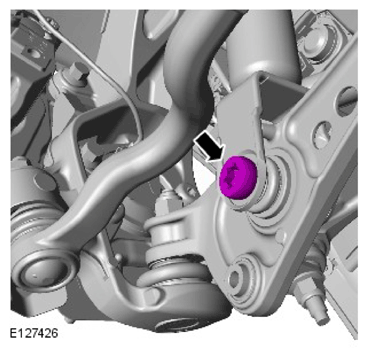

CAUTION: Make sure each bolt aligns with the removal markings.

Torque Specification: 175 Nm
NOTE: Repeat the step for the other side.

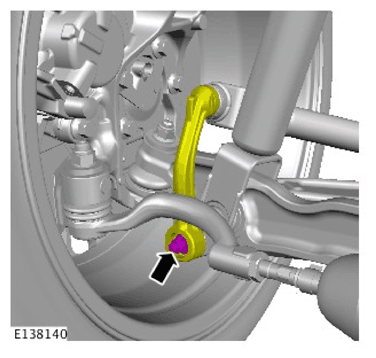

Torque Specification: 175 Nm

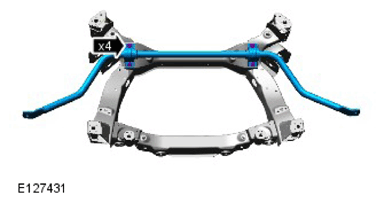

Torque Specification: 43 Nm
Torque Specification: 43 Nm

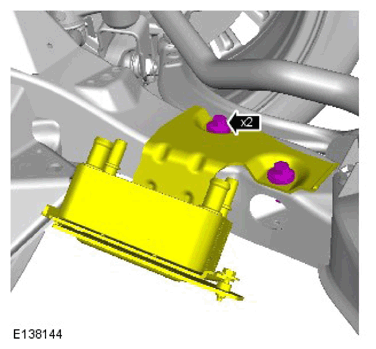

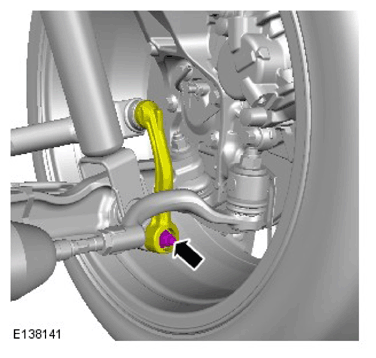

Torque Specification: 100 Nm
Torque Specification: 45 Nm

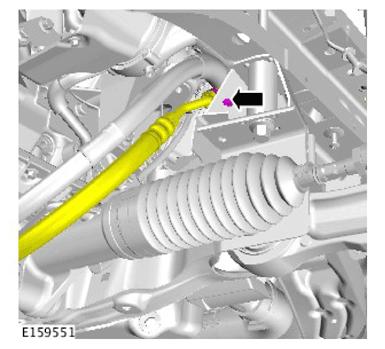

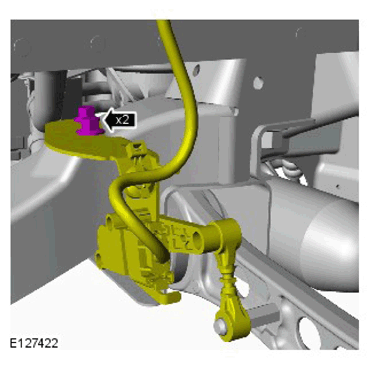

Torque Specification: 22 Nm

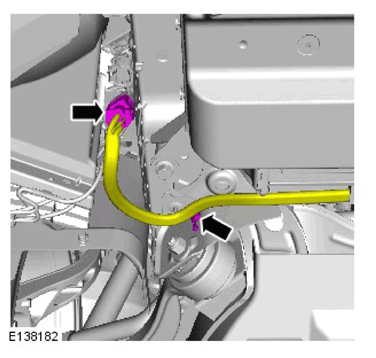

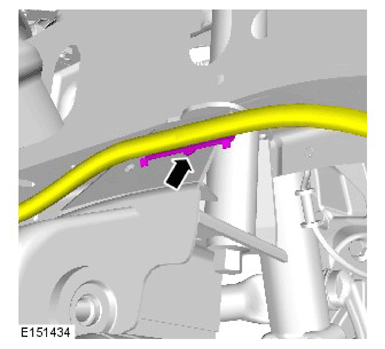

Torque Specification: 5 Nm
CAUTION: Make sure to protect the paintwork.

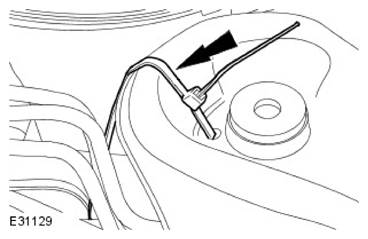

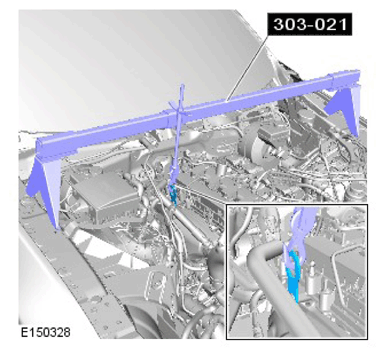

Special Tool(s): 303-021

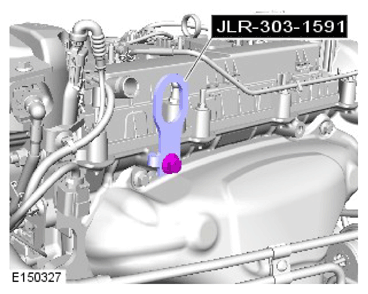

Special Tool(s): JLR-303-1591
Release the radiator assembly.
Refer to: Engine Cover - GTDi 2.0L Petrol (Removal and Installation).

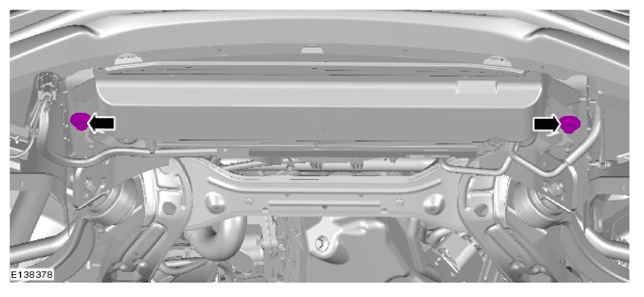

Refer to: Air Deflector (Removal and Installation).

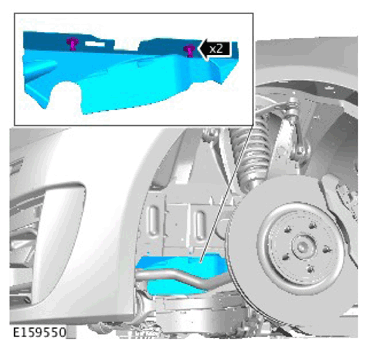

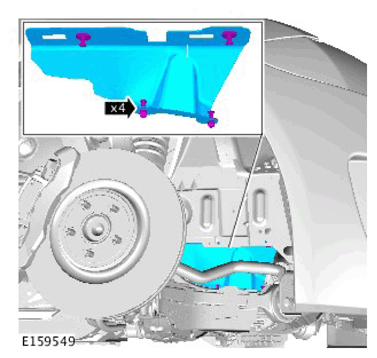

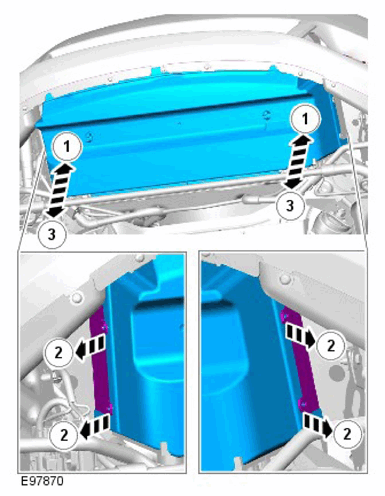

Refer to: Radiator Splash Shield (Removal and Installation).
Refer to: Battery Disconnect and Connect (General Procedures).
Refer to: Camber and Caster Adjustment (General Procedures).
