Front SUBFRAME - AWD (G1574201): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. Refer to: Air Cleaner Outlet Pipe T-Connector (Removal and Installation).
  3. NOTE: Secure with cable ties.

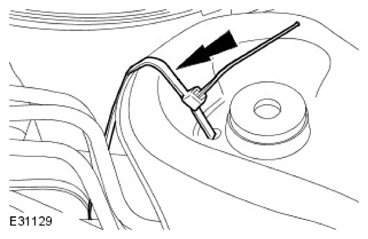

    G11421878

    Secure the radiator assembly.

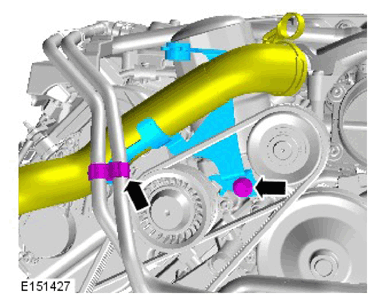

  4. G11421879

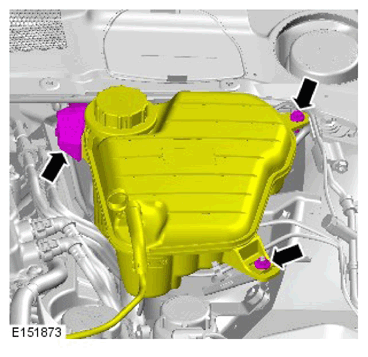

  5. G11421880
  6. Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).

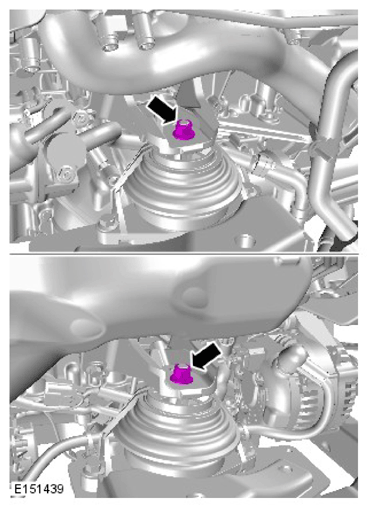

  7. G11421881

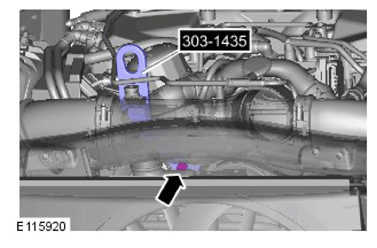

  8. G11421882

    Special Tool(s):  303-1435

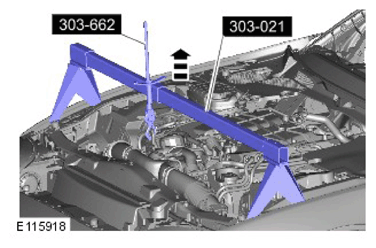

  9. G11421883

    Special Tool(s):  303-021, 303-662

  10. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  11. Refer to: Front Left Halfshaft (Removal and Installation).
  12. Refer to: Front Right Halfshaft (Removal and Installation).
  13. Refer to: Radiator Splash Shield (Removal and Installation).
  14. Refer to: Air Deflector (Removal and Installation).

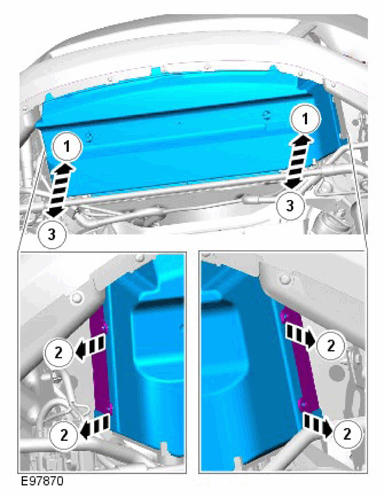

  15. G11421884

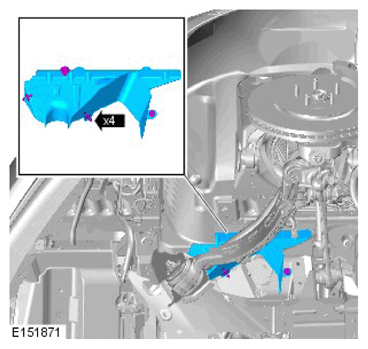

  16. G11421885

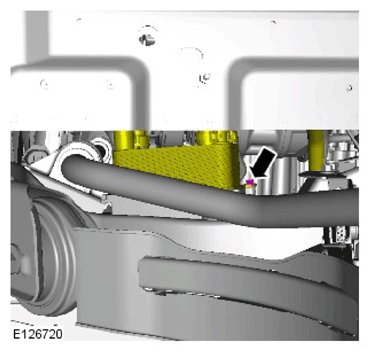

  17. G11421886

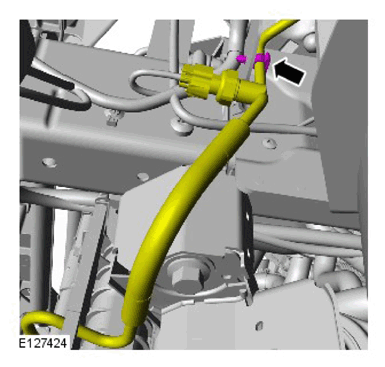

  18. G11421887
  19. NOTE: Repeat the procedure for the other side.

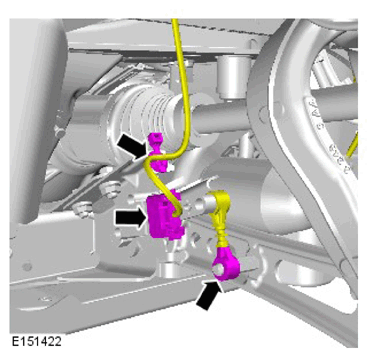

    G11421888

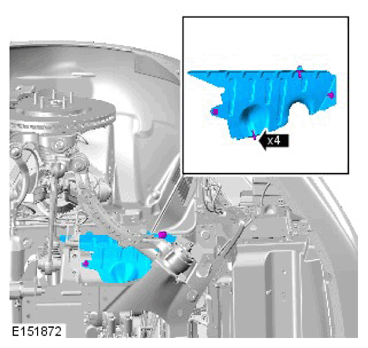

  20. G11421889

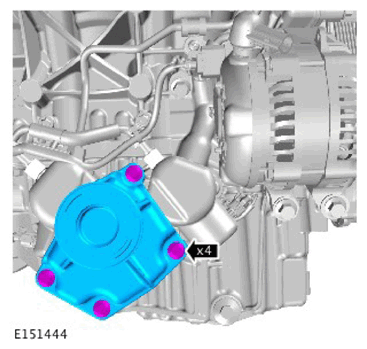

  21. G11421890
  22. G11421891
  23. CAUTION: Make sure to support the steering gear.
    NOTE: LHD illustration shown, RHD is similar.

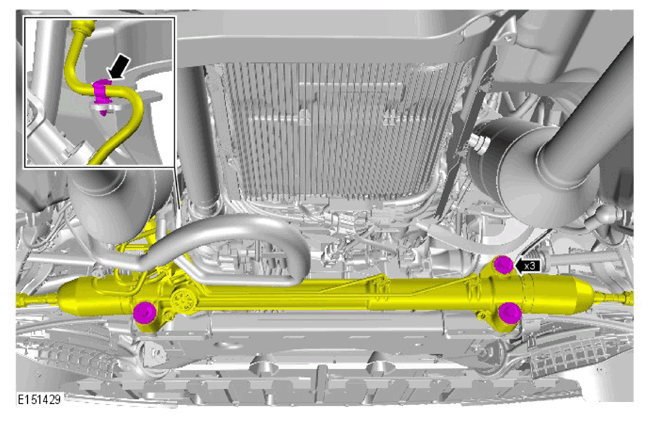

    G11421892
  24. NOTE: Repeat the procedure for the other side.

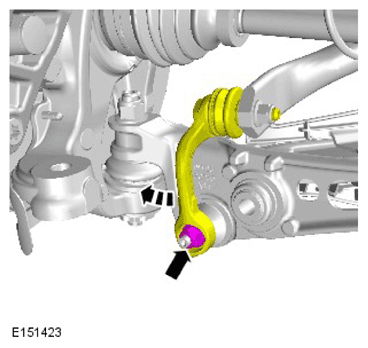

    G11421893
  25. NOTE: Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.

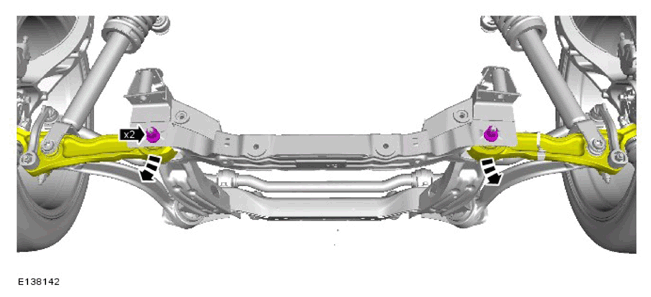

    G11421894
  26. NOTE: Note the fitted position of each bolt, mark the washers and sub-frame before removal to aid assembly.

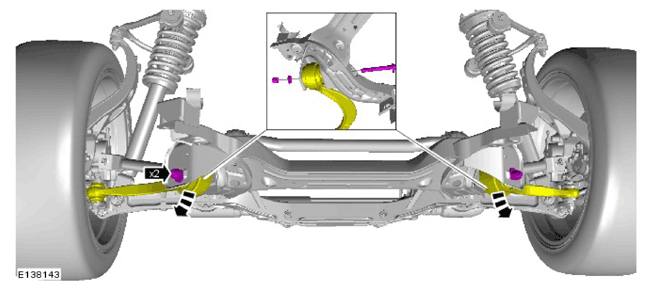

    G11421895

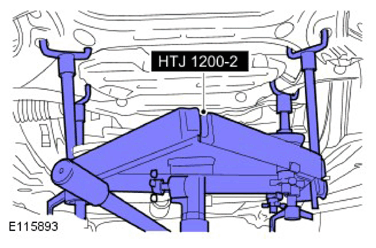

  27. G11421896

    General Equipment:  Powertrain Jack

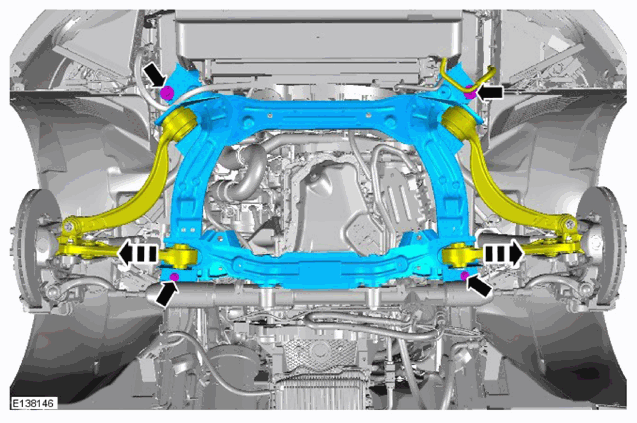

  28. G11421897

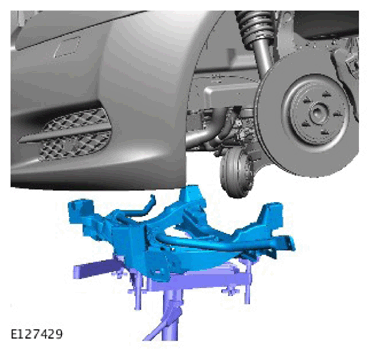

  29. CAUTION: When lowering the special tool care must be taken to manoeuvre the special tool so that the front subframe does not touch the air conditioning (A/C) pipes. Failure to follow this instruction may result in damage to the A/C pipes.
    G11421898
  30. NOTE: Do not disassemble further if the component is removed for access only.

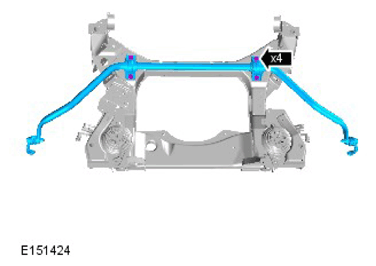

    G11421899

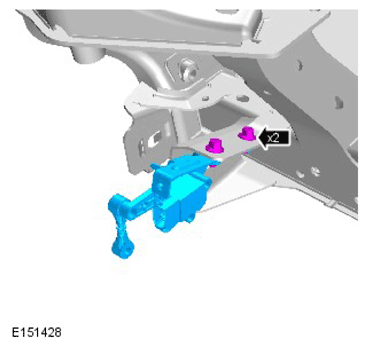

  31. NOTE: Repeat the procedure for the other side.
    G11421900

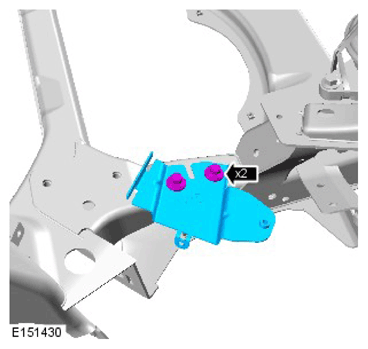

  32. G11421901

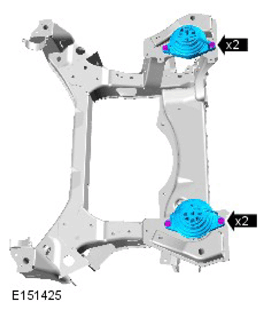

  33. G11421902

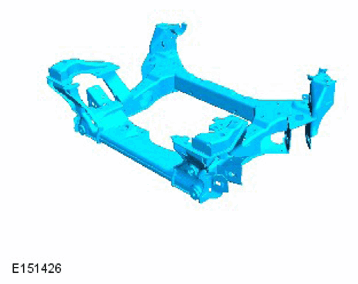

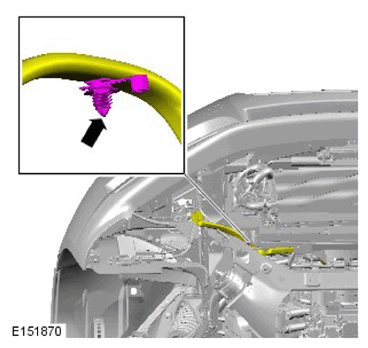

  34. G11421903
