Front SUBFRAME - AWD (G1574201): Installation
Torque Specification: 48 Nm
Torque Specification: 45 Nm
-
NOTE: Repeat the procedure for the other side.
Torque Specification: 20 Nm
Torque Specification: 55 Nm
General Equipment: Powertrain Jack
Install the special tool to the front subframe.
Special Tool(s): 502-005
Install the special tool to the front subframe.
Special Tool(s): 502-005
-
CAUTION: Make sure that new subframe bolts are installed.
Torque Specification:
Stage 1: 80 Nm
Stage 2: 240°
Remove the special tool.
Special Tool(s): 502-005
Remove the special tool.
Special Tool(s): 502-005
-
CAUTION: Make sure that new subframe bolts are installed.
Torque Specification:
Stage 1: 150 Nm
Stage 2: 240°
-
CAUTION: Make sure each bolt aligns with the removal markings.
Torque Specification: 175 Nm
-
CAUTION: Make sure each bolt aligns with the removal markings.
Torque Specification: 175 Nm
-
NOTE: Repeat the procedure for the other side.
Torque Specification: 70 Nm
-
NOTE: LHD illustration shown, RHD is similar.
Torque Specification: 100 Nm
Torque Specification: 25 Nm
-
NOTE: Repeat the procedure for the other side.
Torque Specification: 7 Nm
- Refer to: Front Left Halfshaft (Removal and Installation).
- Refer to: Front Right Halfshaft (Removal and Installation).
- Refer to: Air Deflector (Removal and Installation).
- Refer to: Radiator Splash Shield (Removal and Installation).
- Lower the vehicle.
Special Tool(s): 303-021, 303-662
Special Tool(s): 303-1435
Torque Specification: 48 Nm
- Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
Torque Specification: 9 Nm
Torque Specification: 25 Nm

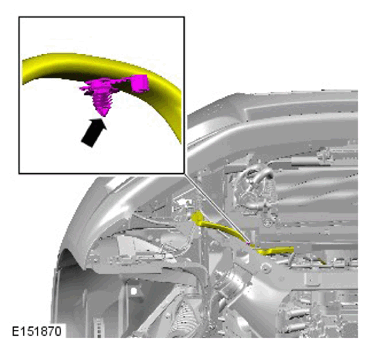

Release the radiator assembly.
- Refer to: Air Cleaner Outlet Pipe T-Connector (Removal and Installation).
- Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
- Refer to: Camber and Caster Adjustment (General Procedures).
