Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1090271): Removal

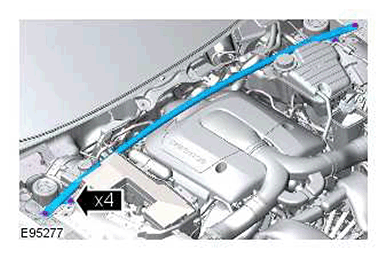

All vehicles

1. Refer to: Secondary Bulkhead Centre Panel - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol  (Front End Body Panels, Removal and Installation).

2. Torque Specification: 25 Nm

   Right-hand drive vehicles

3. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

   Left-hand drive vehicles

5. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

   Vehicles with 5.0L

6. Refer to: Right Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

   Vehicles with diesel engine

7. All vehicles
