Liftgate Lock Cylinder (G1574159): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Liftgate Trim Panel (Interior Trim and Ornamentation, Removal and Installation).

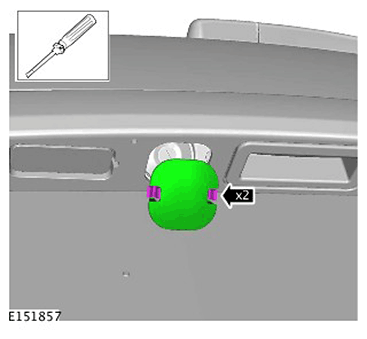

  2. G11423407

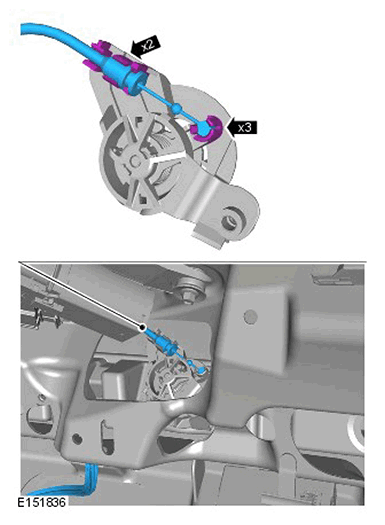

  3. G11423408

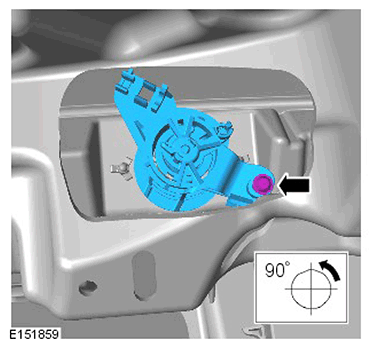

  4. G11423409

    Torque Specification: 3.5 Nm

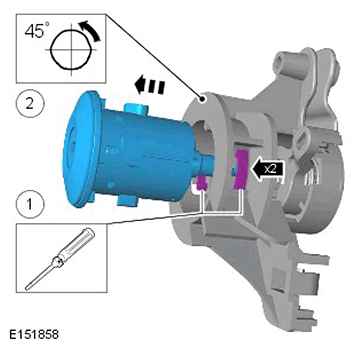

  5. G11423410
