Liftgate Latch (G1574157): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Liftgate Latch Actuator  (Handles, Locks, Latches and Entry Systems, Removal and Installation).

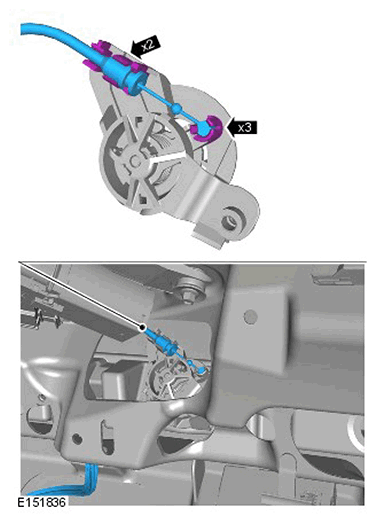

  2. G11423403

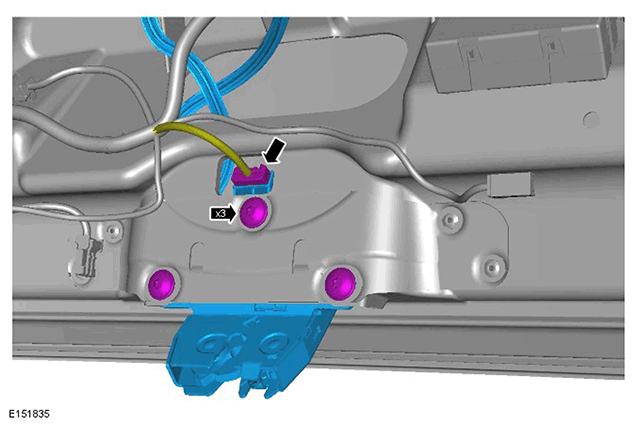

  3. G11423404

    Torque Specification: 8 Nm

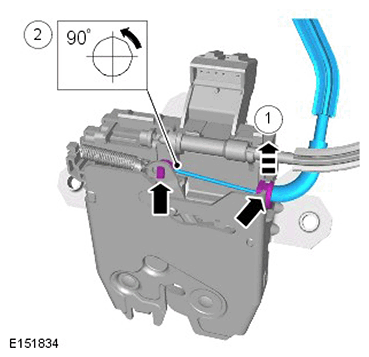

  4. G11423405
