Pinpoint Test B: Single Door Will Not Open From The Inside (But Opens From The Outside)

  1. B1: CHECK THE INTERIOR DOOR RELEASE CABLE TO INTERIOR DOOR HANDLE IS INSTALLED CORRECTLY
    G11423335

    NOTE:

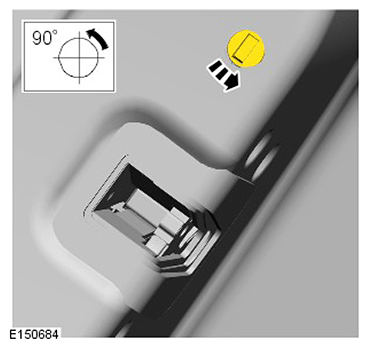

    1. Make sure the child lock is disengaged (rear door only)
    2. Remove the door trim panel as necessary

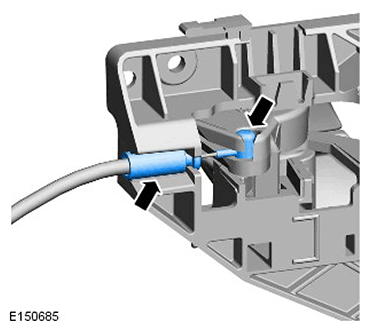

    3. Confirm the interior door release cable is correctly installed to the interior door handle
    G11423336

    Is the cable correctly installed?

    • Yes  : GO to  B2.
    • No  : Connect the door release cable correctly. If the cable is damaged, install a new door release cable  . Test the system for normal operation
  2. B2: CHECK THE INTERIOR DOOR HANDLE RELEASE CONNECTION TO THE DOOR LATCH

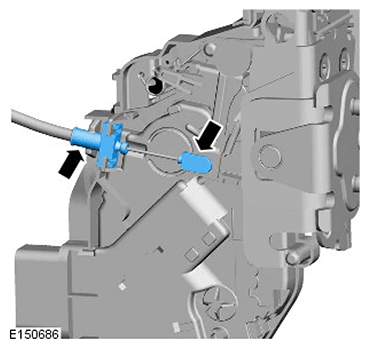

    1. Confirm the interior door handle release connection to the door latch is installed correctly
    G11423337

    Is the interior door handle release cable installed correctly?

    • Yes  : GO to Pinpoint Test C .
    • No  : Connect the door release cable correctly. If the cable is damaged, install a new door release cable  . Test the system for normal operation
NOTE: Test as a single component to ensure that the door latch is not replaced unnecessarily, when another component may be at fault
