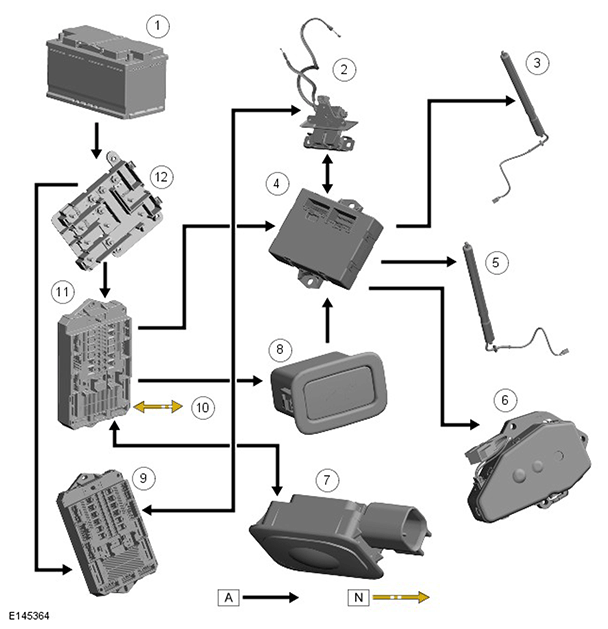

| 1 |
Battery |
| 2 |
Tailgate latch |
| 3 |
Upper tailgate actuator |
| 4 |
Tailgate Control Module (TGCM) |
| 5 |
Upper tailgate actuator |
| 6 |
Tailgate soft close actuator |
| 7 |
Tailgate open switch |
| 8 |
Tailgate global close switch |
| 9 |
CJB |
| 10 |
Medium Speed CAN connection to other systems |
| 11 |
RJB |
| 12 |
BJB |
