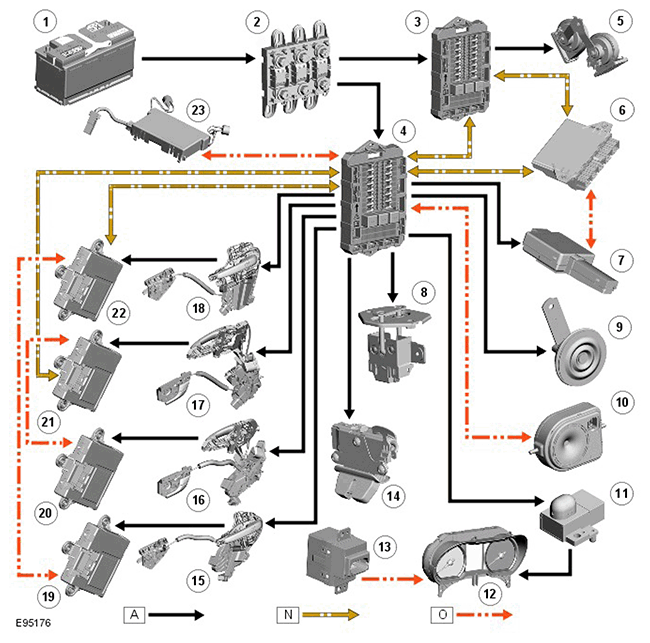

Control Diagram
NOTE:
A
= Hardwired; N
= Medium speed CAN; O
= LIN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (250 amp) |
| 3 | RJB (rear junction box) |
| 4 | CJB (central junction box) |
| 5 | Vehicle horn |
| 6 | Keyless vehicle module |
| 7 | Central locking - Radio Frequency (RF) receiver |
| 8 | Engine compartment lid - latch mechanism |
| 9 | Passive sounder |
| 10 | Battery backed sounder |
| 11 | Alarm indicator |
| 12 | Instrument cluster |
| 13 | Start control unit |
| 14 | Luggage compartment lid - latch mechanism |
| 15 | Door latch mechanism - LH (left-hand) rear |
| 16 | Door latch mechanism - RH (right-hand) rear |
| 17 | Door latch mechanism - RH front |
| 18 | Door latch mechanism - LH front |
| 19 | Door module - LH rear |
| 20 | Door module - RH rear |
| 21 | Door module - RH front |
| 22 | Door module - LH front |
| 23 | Intrusion detection module |
