Luggage Compartment Lid Wiring Harness - SPORTBRAKE (G2100368): Removal

NOTE:
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

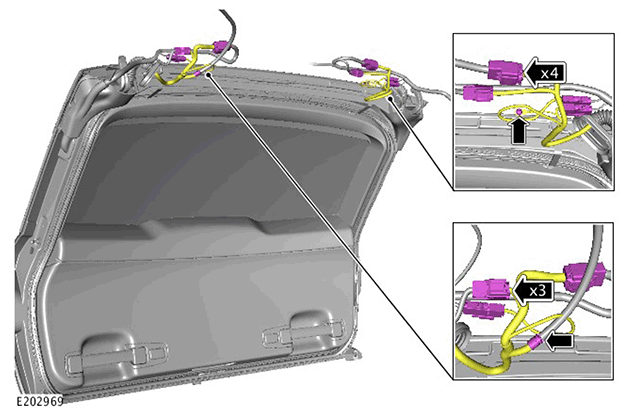

  1. G11422448

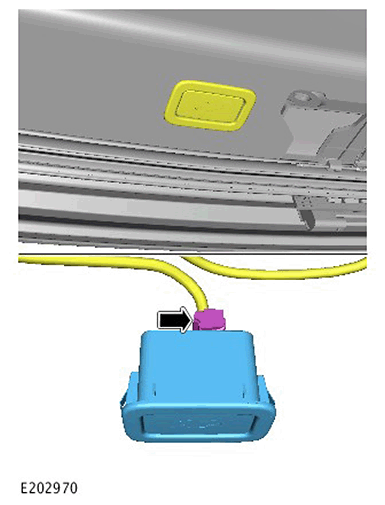

  2. G11422449

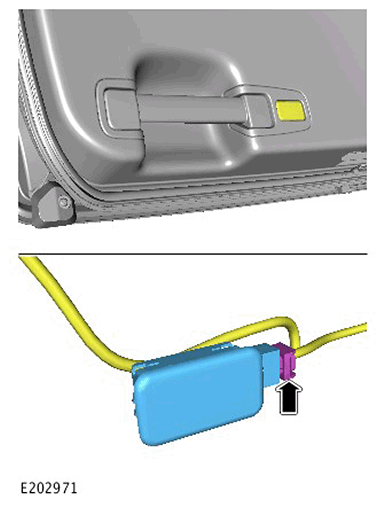

  3. G11422450

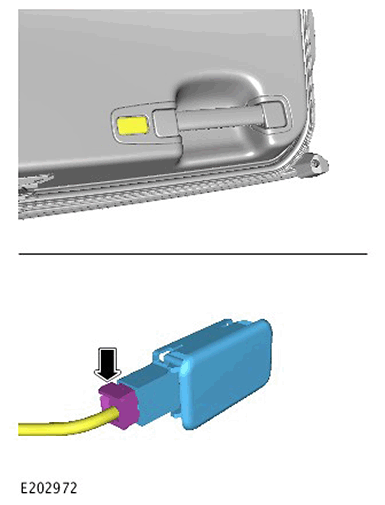

  4. G11422451

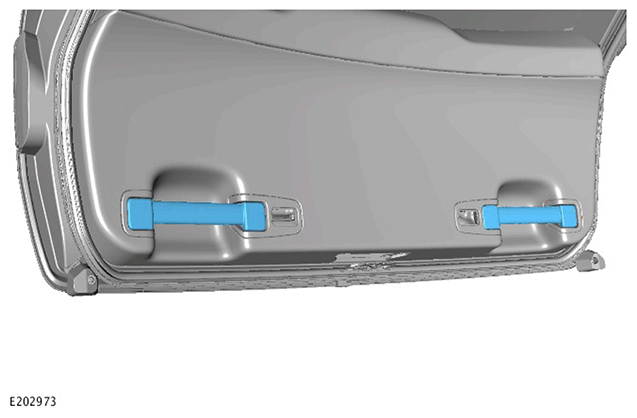

  5. G11422452

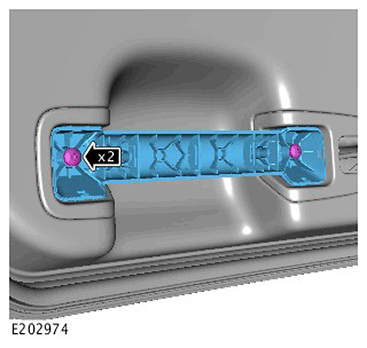

  6. G11422453

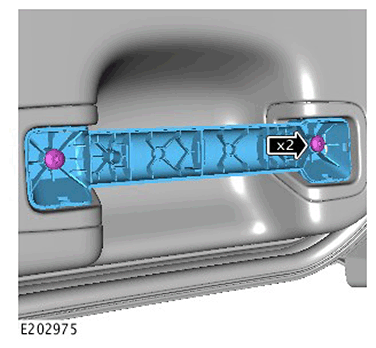

  7. G11422454

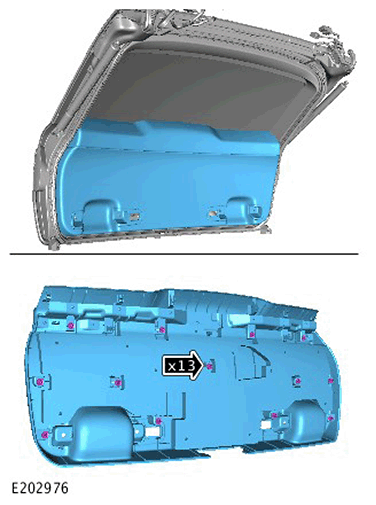

  8. G11422455

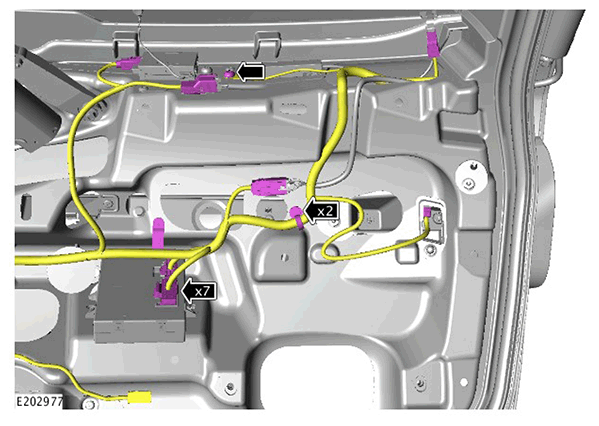

  9. G11422456

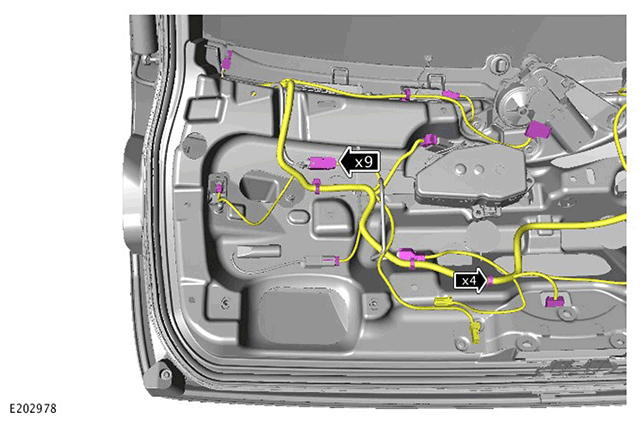

  10. G11422457

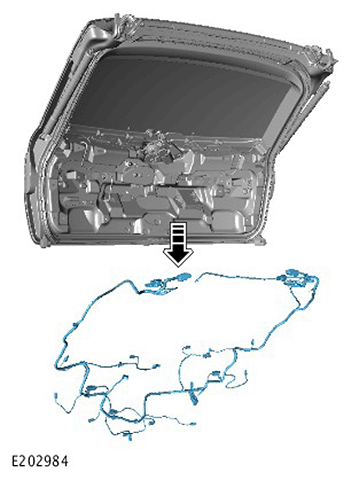

G11422458
