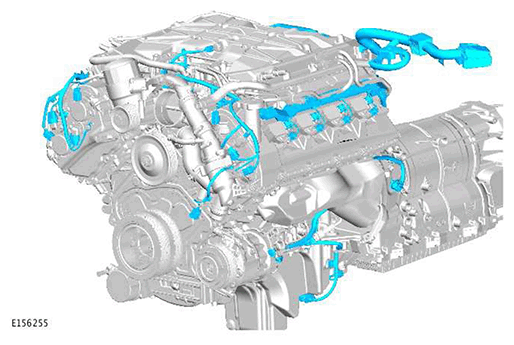

Engine Wiring Harness - V8 S/C 5.0L Petrol (G1652330): Removal
CAUTION:
Note the routing of the wiring harnesses.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
- Refer to: Battery Disconnect and Connect (General Procedures).
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Left Air Cleaner Outlet Pipe (V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
- Refer to: Right Air Cleaner Outlet Pipe (V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
-
Refer to: Air Cleaner Outlet Pipe T-Connector (V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
- Refer to: Cooling System Partial Draining, Filling and Bleeding - V8 S/C 5.0L Petrol (General Procedures).
- Refer to: Exhaust System (V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
- Refer to: Secondary Bulkhead Left Panel - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
- Refer to: Secondary Bulkhead Right Panel - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
- Refer to: Secondary Bulkhead Center Panel - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
- Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (General Procedures).
-

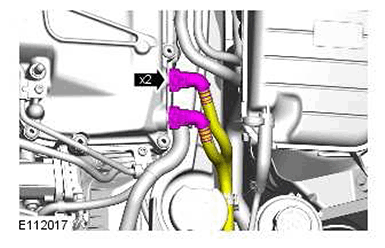

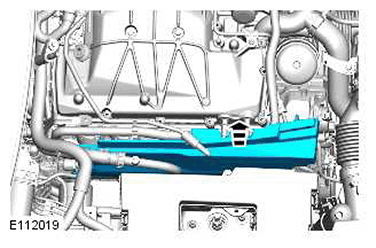

CAUTION: Be prepared to collect escaping fluids.

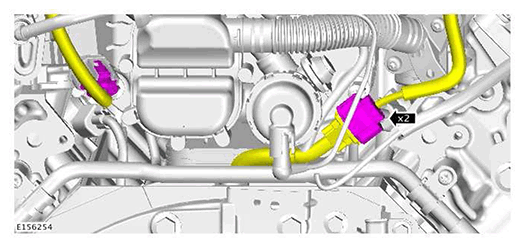

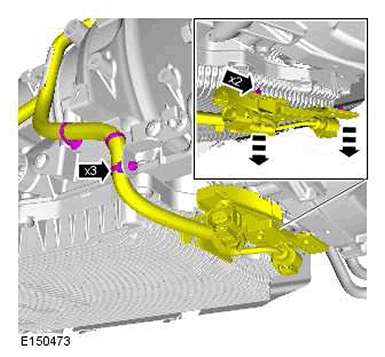

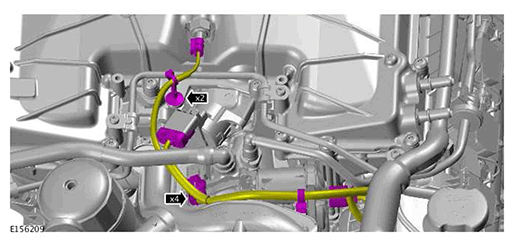

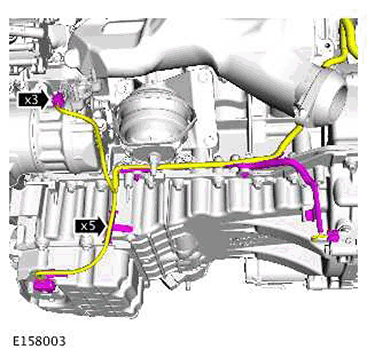

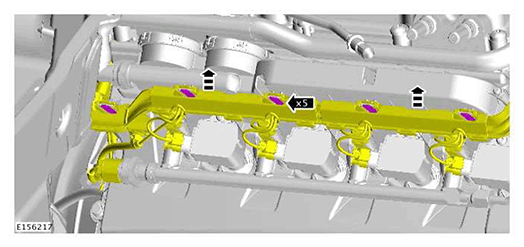

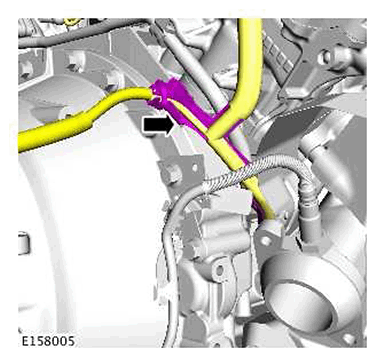

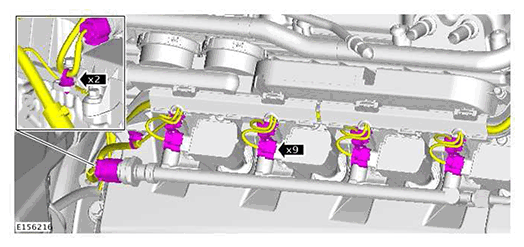

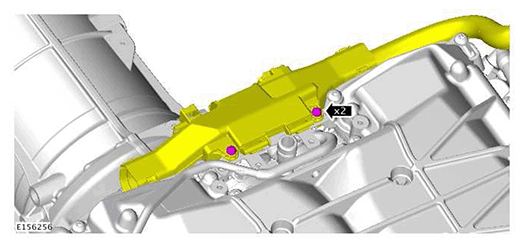

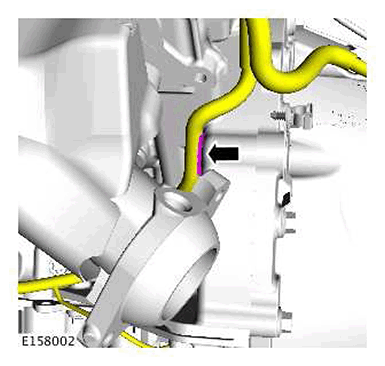

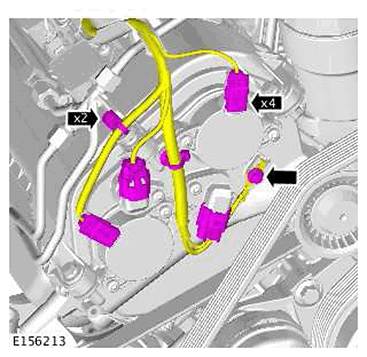

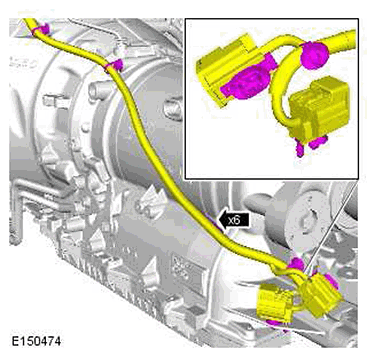

Torque: 10 Nm

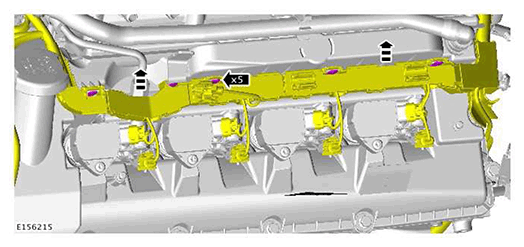

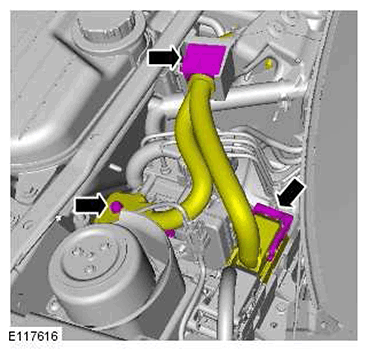

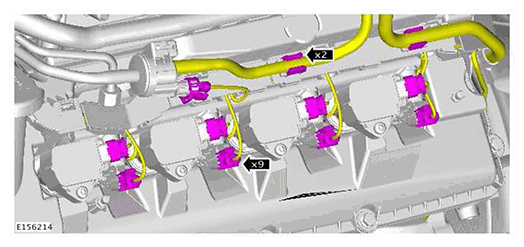

Torque: 10 Nm

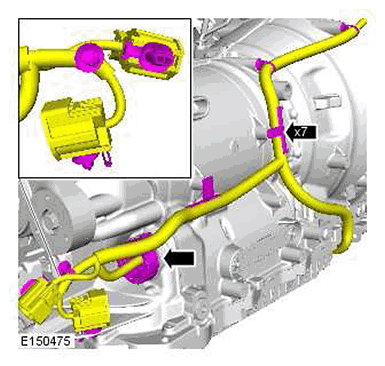

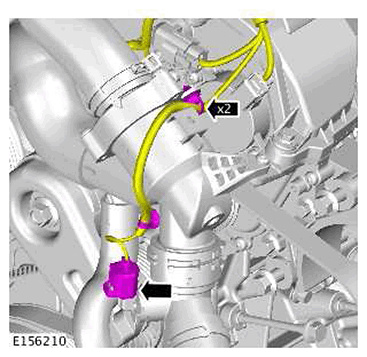

Torque: 10 Nm

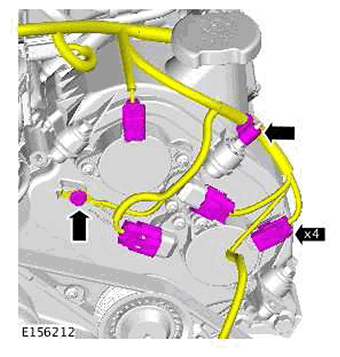

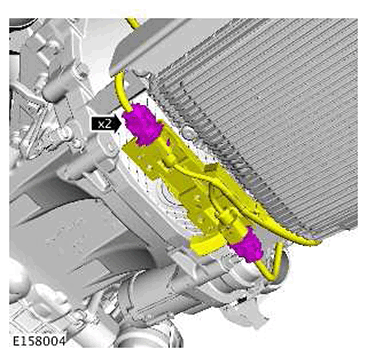

Torque: 10 Nm

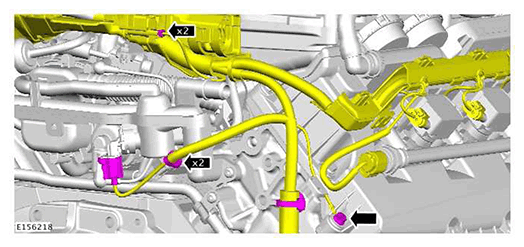

Torque: 3.6 Nm

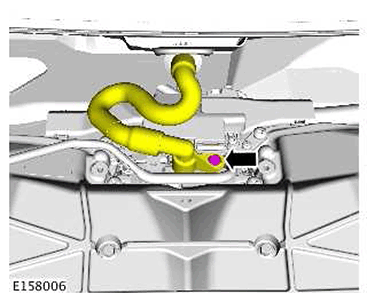

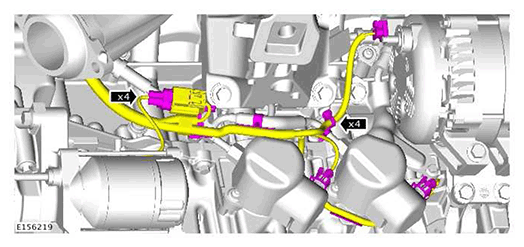

Torque: 10 Nm

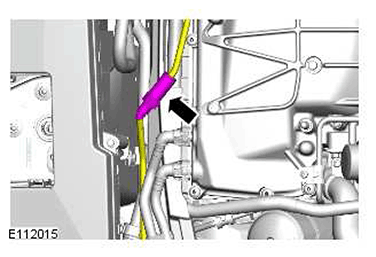

Torque: 10 Nm
-

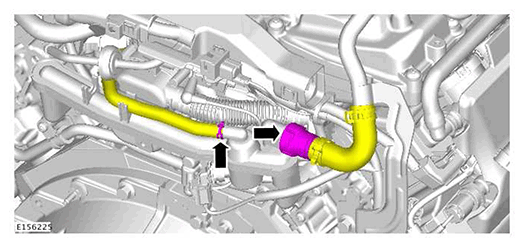

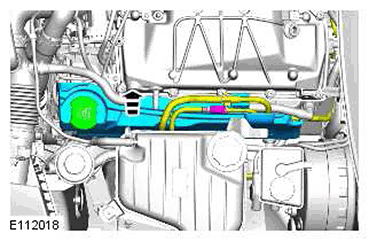

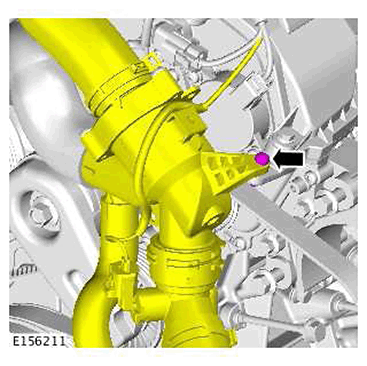

CAUTION: Be prepared to collect escaping coolant.
-

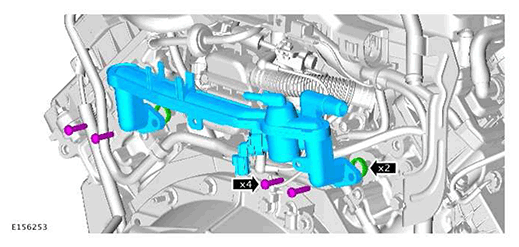

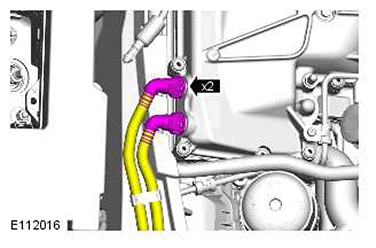

CAUTION: Be prepared to collect escaping coolant.NOTE: Install new O-ring seals.
Torque: 10 Nm
