Engine Wiring Harness - V6 S/C 3.0L Petrol, Vehicles With: 8HP70 8-Speed Automatic Transmission RWD (G1765092): Removal
CAUTION:

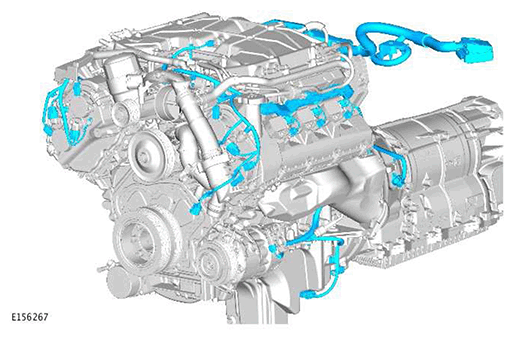

Note of the routing of the wiring harnesses.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
- Refer to: Battery Disconnect and Connect (General Procedures).
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Left Air Cleaner Outlet Pipe (V6 S/C 3.0L, Removal and Installation).
- Refer to: Right Air Cleaner Outlet Pipe (V6 S/C 3.0L Petrol, Removal and Installation).
-
Refer to: Air Cleaner Outlet Pipe T-Connector (V6 S/C 3.0L Petrol, Removal and Installation).
- Refer to: Cooling System Partial Draining and Vacuum Filling (General Procedures).
- Refer to: Exhaust System - RWD (V6 S/C 3.0L Petrol, Removal and Installation).
- Refer to: Secondary Bulkhead Left Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
- Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
-

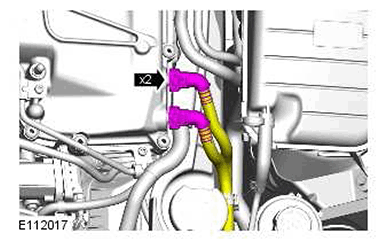

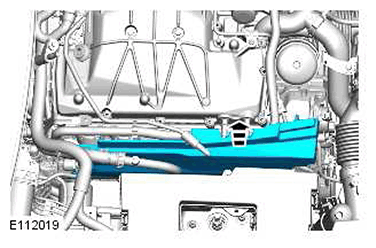

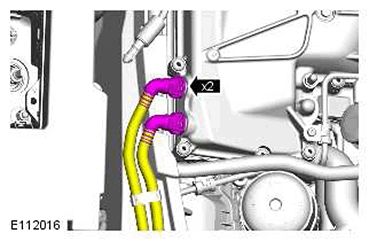

CAUTION: Be prepared to collect escaping fluids.

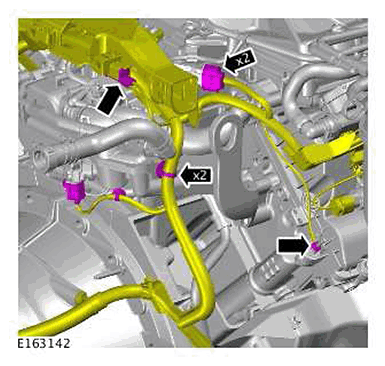

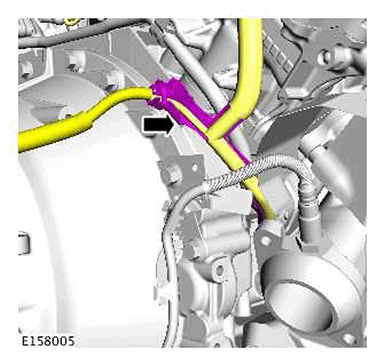

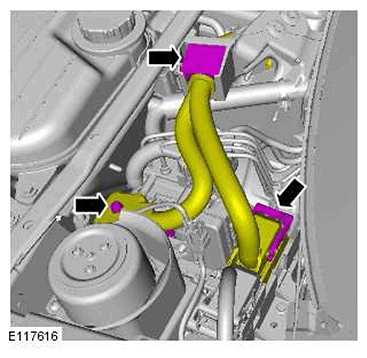

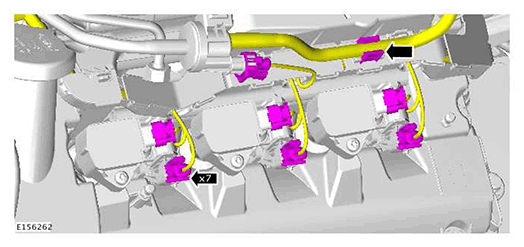

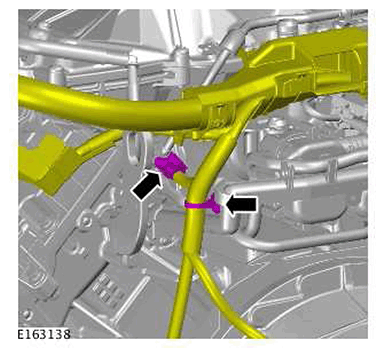

Torque: 10 Nm

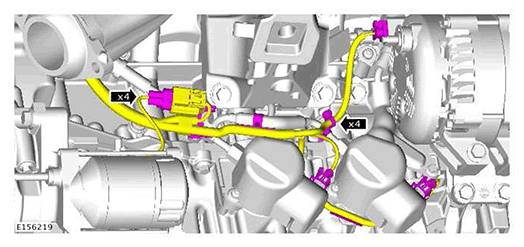

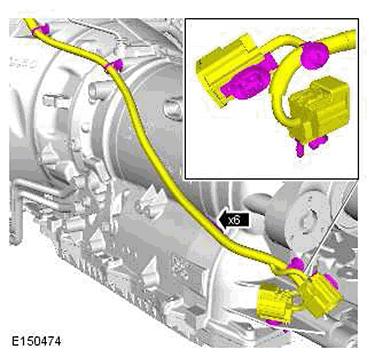

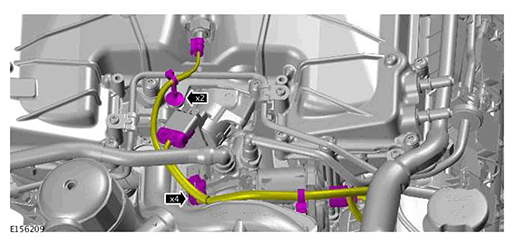

Torque: 10 Nm

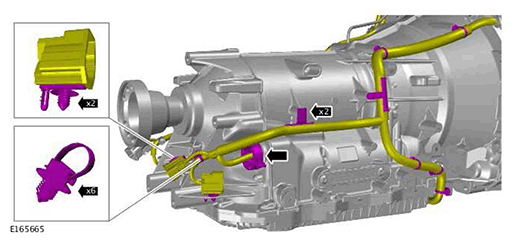

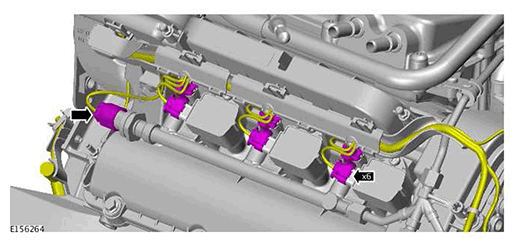

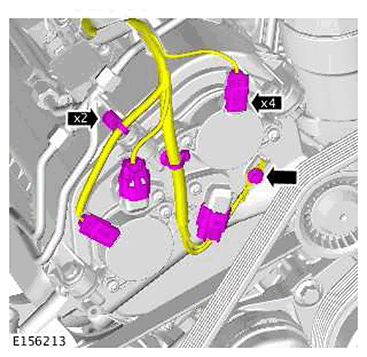

Torque: 10 Nm

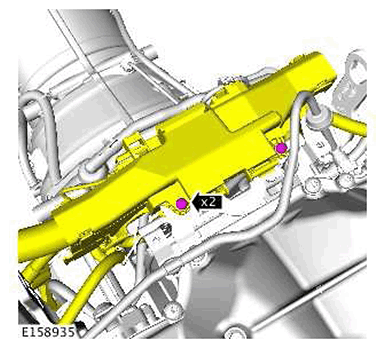

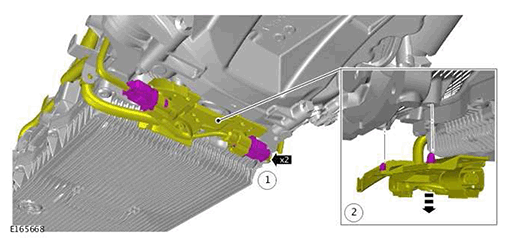

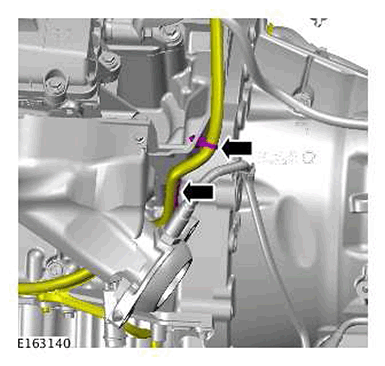

Torque: 10 Nm

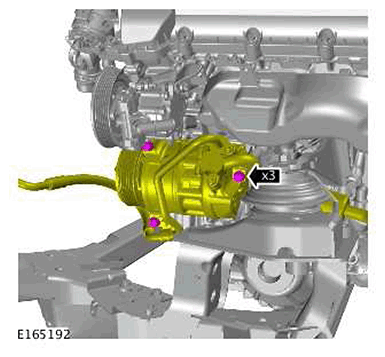

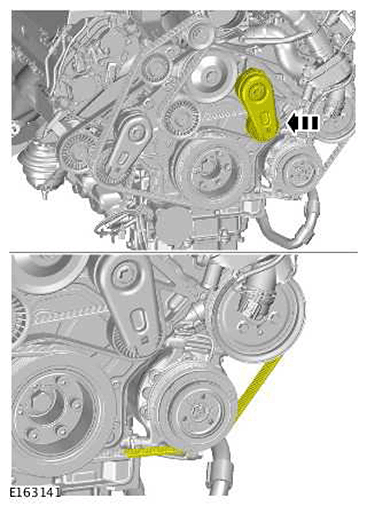

Detach the air conditioning (A/C) compressor and secure it to one side.

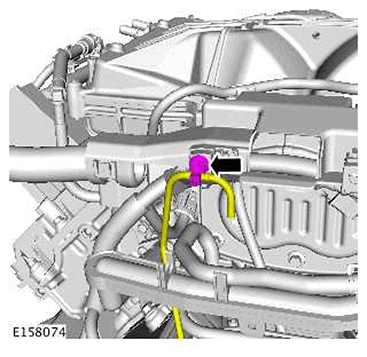

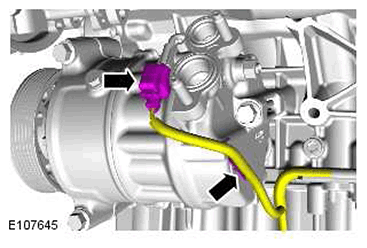

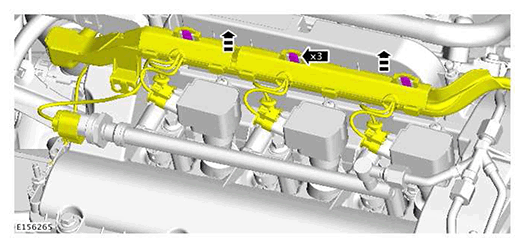

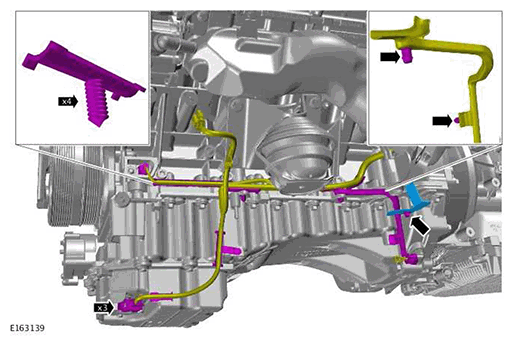

Torque: 25 Nm

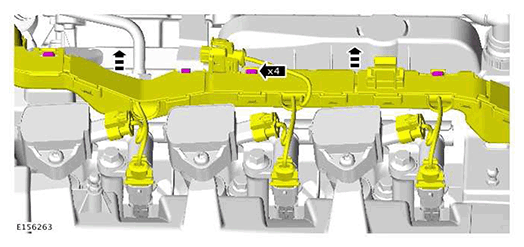

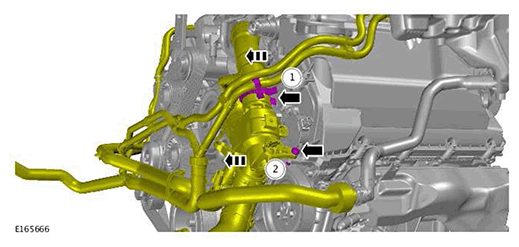

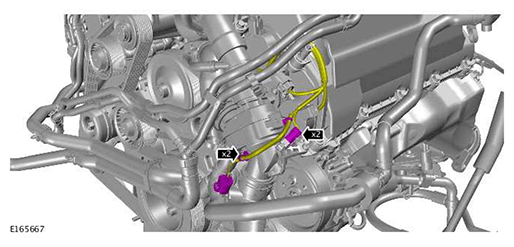

Torque: 10 Nm

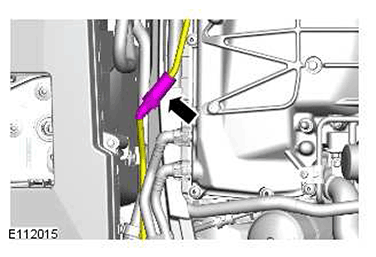

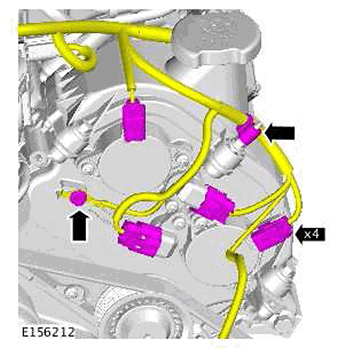

Torque: 3.6 Nm

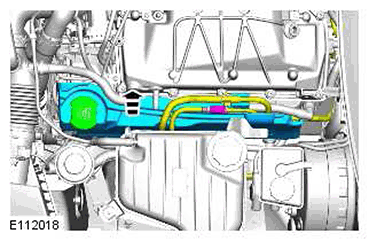

Torque: 10 Nm
