Engine Wiring Harness - GTDI 2.0L Petrol (G1573696): Removal

CAUTION:
  • Make sure that the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.
  • Take extra care not to damage the wiring harness clips.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • LHD shown, RHD is similar.
  1. Disconnect the battery ground cable, refer to Battery Disconnect And Connect (G1033944) .
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Secondary Bulkhead Center Panel - GTDi 2.0L Petrol (Front End Body Panels, Removal and Installation).

  4. Refer to: Supplemental Restraint System (SRS) Health And Safety Precautions (General Information, Description and Operation).

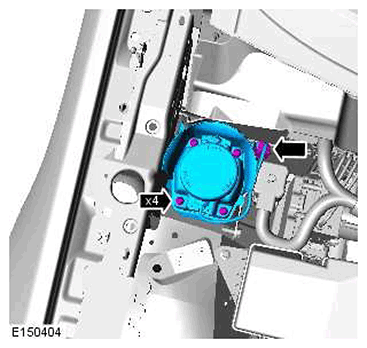

  5. G11422462

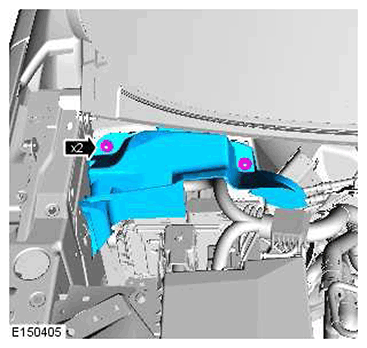

  6. G11422463

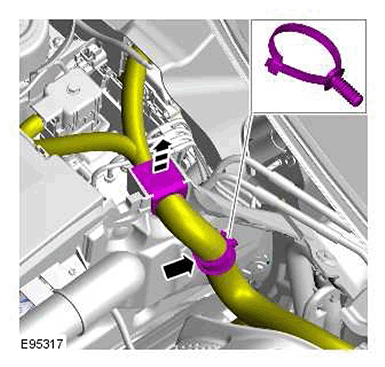

  7. G11422464

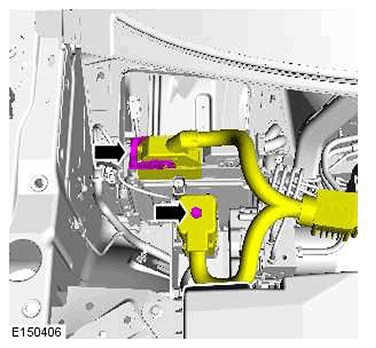

  8. G11422465

    Torque: 3.6 Nm

  9. Refer to: Crankshaft Position Sensor (GTDi 2.0L Petrol, Removal and Installation).

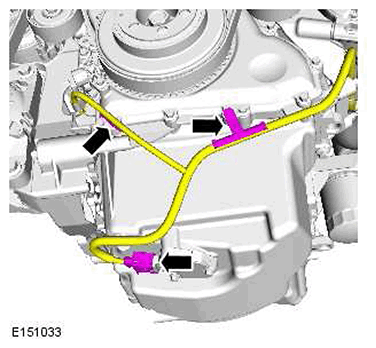

  10. G11422466

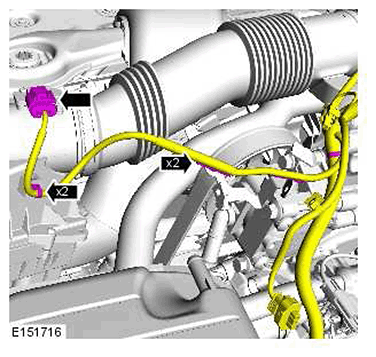

  11. G11422467
  12. Refer to: Intake Manifold (GTDi 2.0L Petrol, Removal and Installation).

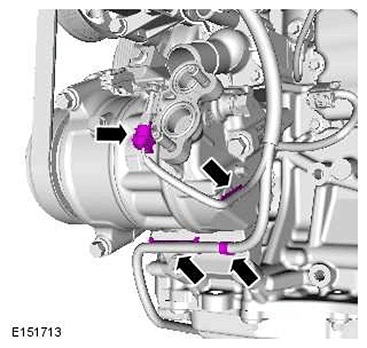

  13. G11422468

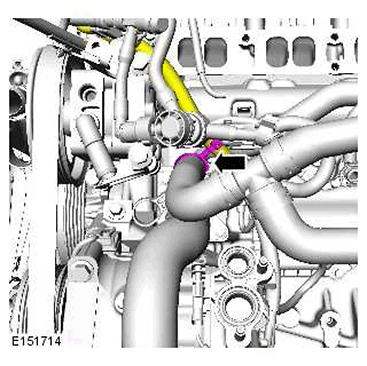

  14. G11422469

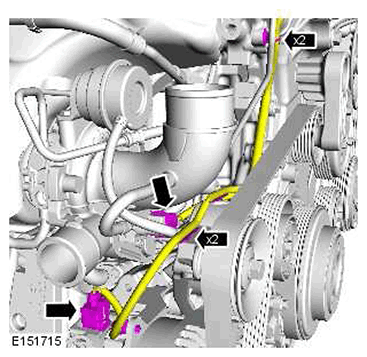

  15. G11422470

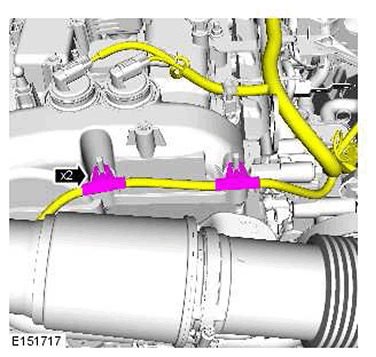

  16. G11422471

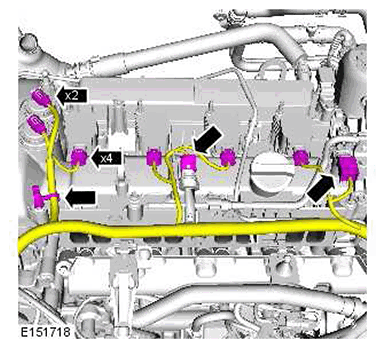

  17. G11422472

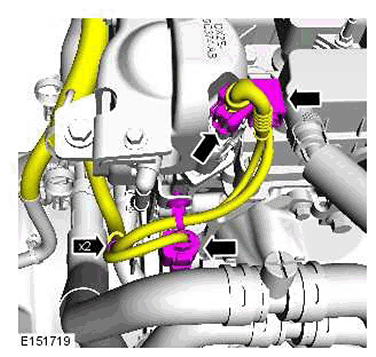

  18. G11422473

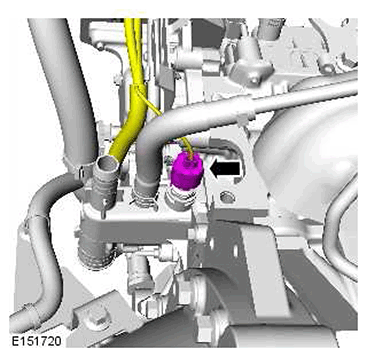

  19. G11422474

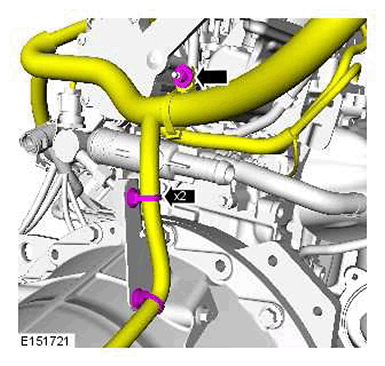

  20. G11422475

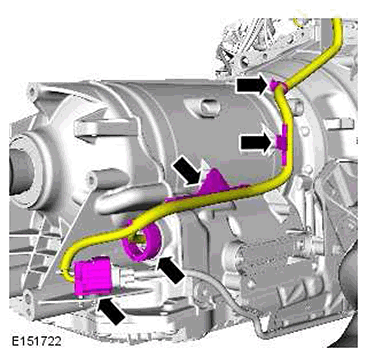

  21. G11422476

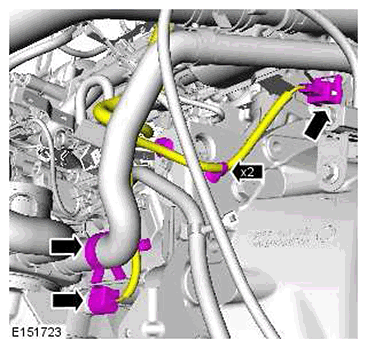

  22. G11422477

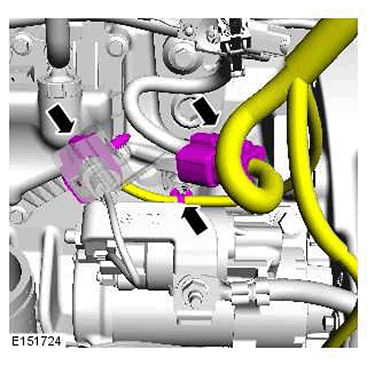

  23. G11422478

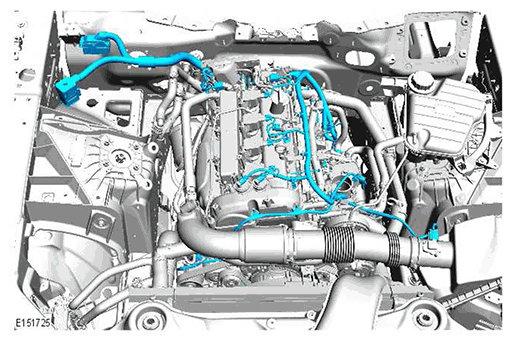

G11422479
