Fuel Tank Wiring Harness Modification (G1475832): Repair

NOTE:
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
    1. For additional information on correct wiring harness repair techniques, refer to Wiring Harness .
  2. Refer to: Battery Disconnect and Connect (General Procedures).
  3. Refer to: Fuel Pump and Sender Unit (Removal and Installation).

    Refer to: Fuel Pump and Sender Unit (V6 S/C 3.0L Petrol, Removal and Installation).

    Refer to: Fuel Pump and Sender Unit (V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

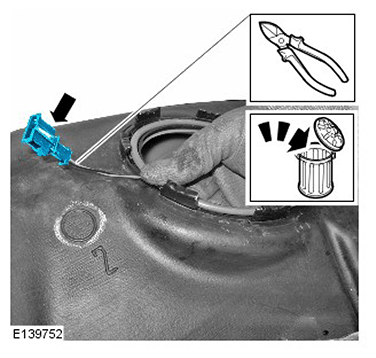

  4. NOTE: Cut the wires as close as possible to the electrical connector.
    G11422428

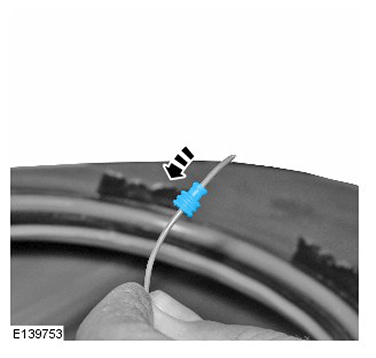

  5. G11422429

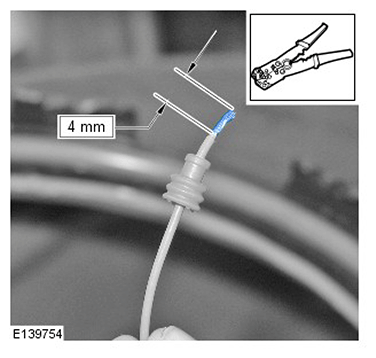

  6. G11422430

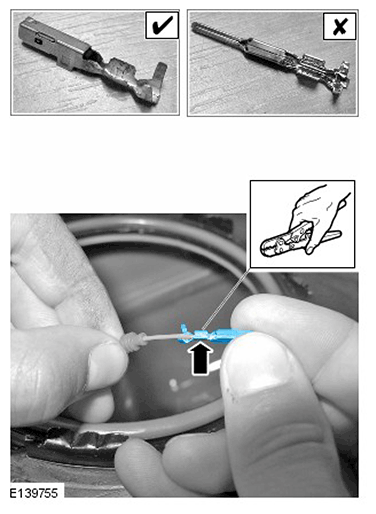

  7. G11422431
    • Install the female terminal to the wire, and using a suitable tool crimp the first stage.

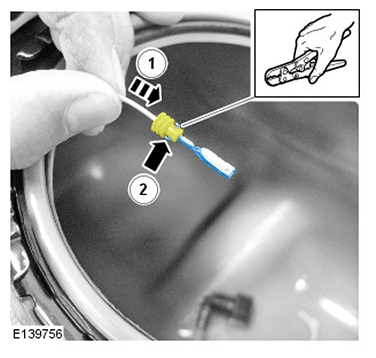

  8. G11422432
    • Install the wiring harness grommet to the terminal, and using a suitable tool, crimp the second stage.
    • Repeat steps 5 to 8 for the second wire.

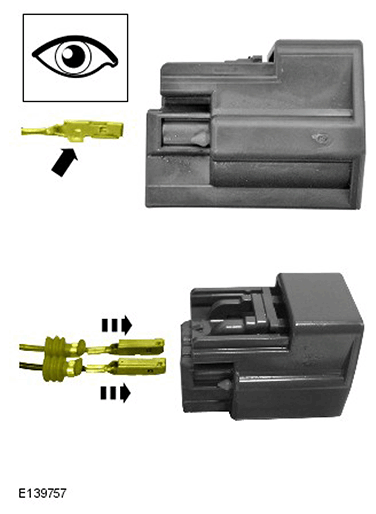

  10. CAUTION: It is essential that the wires are installed in the correct orientation as shown. The lug must be positioned opposite to the connector release clip.
    G11422433
  11. CAUTION: Make sure that the wires are installed correctly by pulling the wires gently to make sure they are engaged.
    G11422434
    • Secure the electrical terminals with the anti-backout.

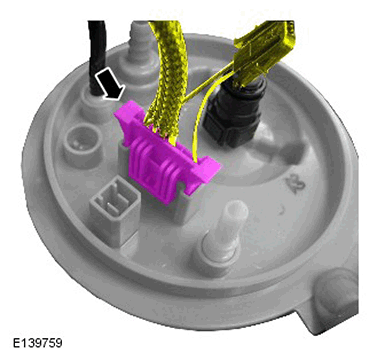

  12. G11422435

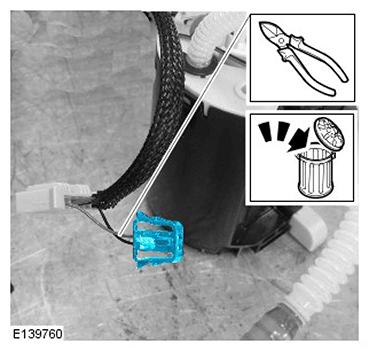

  13. NOTE: Cut the wires as close as possible to the electrical connector.
    G11422436

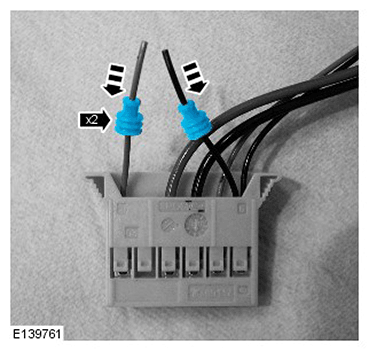

  14. G11422437

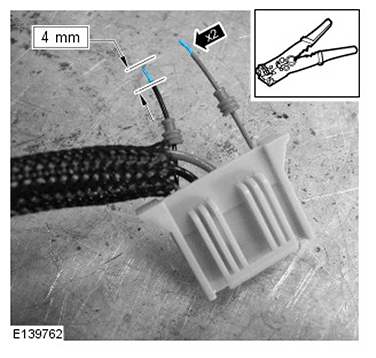

  15. G11422438

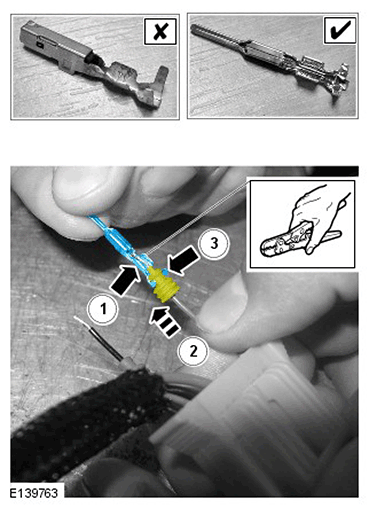

  16. G11422439
    • Following the procedure above for the female terminals, install the two male terminals to the wires.

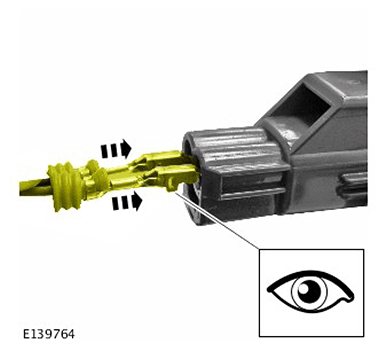

  17. CAUTION:
    • Make sure that the wires are installed to align with the corresponding coloured wire on the opposite connector.
    • It is essential that the wires are installed in the correct orientation as shown.
    G11422440

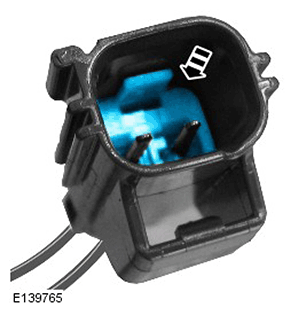

  18. CAUTION: Make sure that the wires are installed correctly by pulling the wires gently to make sure they are engaged.
    G11422441
    • Secure the electrical terminals with the anti-backout.

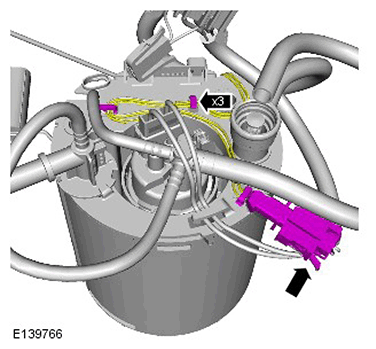

  19. G11422442
  20. CAUTION:
    • The male connector is to be installed on the sender side.
    • Make sure that the wires are installed to align with the corresponding coloured wire on the opposite connector.
    • It is essential that the wires are installed in the correct orientation to the connectors.
    • Using the procedure outlined above for the passive side sender, remove the wiring connectors from the active side sender and replace with the new connectors from the parts kit.

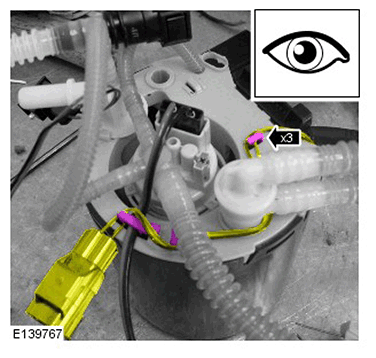

  21. G11422443
    • Re-route the active side sender wires as shown.

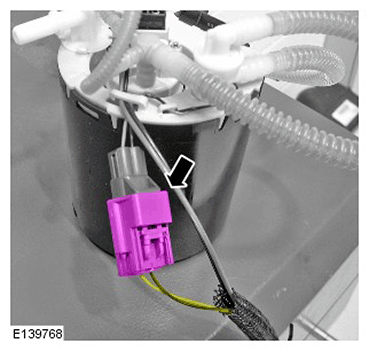

  22. G11422444

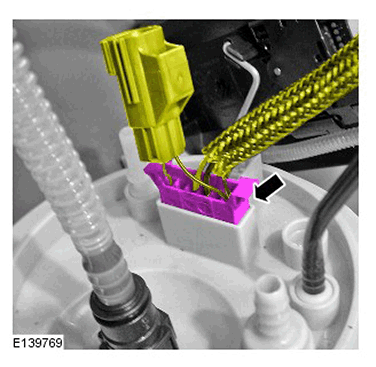

  23. G11422445
  24. Refer to: Fuel Pump and Sender Unit (Removal and Installation).

    Refer to: Fuel Pump and Sender Unit (V6 S/C 3.0L Petrol, Installation).

    Refer to: Fuel Pump and Sender Unit (V8 5.0L Petrol/V8 S/C 5.0L Petrol, Installation).

  25. Refer to: Battery Disconnect and Connect (General Procedures).
